K81
MIAMI COUNTY
PublicPUB

3 miles SW of PAOLA, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 32' 26"N 94° 55' 13"W
943' MSL
1943' MSL
03E
100LL
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
10/31/24-11/28/24
KOWI (16nm) IFR
5:35 AM CST
Mist
Overcast 600'
4sm
52°F
52°F
29.95"Hg
120° 12kts
Gusts 21kts
AO2
KOWI 091135Z AUTO 12012G21KT 4SM BR OVC006 11/11 A2995 RMK AO2
Add Your Business

K81 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

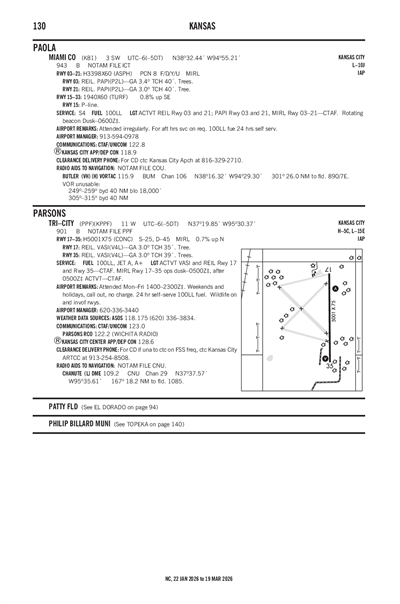

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIXD (17nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
IFR
6:00 AM CST - 1:00 PM CST
Light Drizzle
Overcast 800'
6sm
110° 10kts
MVFR
1:00 PM CST - 3:00 PM CST
Broken 2,400'
6sm
140° 12kts
VFR
3:00 PM CST - 6:00 AM CST
Scattered 25,000'
6sm
160° 12kts
KIXD 091120Z 0912/1012 11010KT 6SM -DZ OVC008
   FM091900 14012KT P6SM BKN024
   FM092100 16012KT P6SM SCT250
K81
Domestic
10/16/240150Z !ICT 10/245 K81 OBST TOWER LGT (ASR 1232180) 382848.80N0945653.40W (3.9NM SSW K81) 1169.9FT (260.2FT AGL) U/S 2410160150-2501130400
9/26/241404Z !ICT 09/419 K81 OBST TOWER LGT (ASR 1245066) 383551.10N0944110.20W (11.5NM ENE K81) 1340.9FT (313.0FT AGL) U/S 2409261404-2412262359
9/10/241202Z !ICT 09/144 K81 OBST TOWER LGT (ASR 1202215) 383540.00N0944029.80W (12.0NM ENE K81) 1277.2FT (207.0FT AGL) U/S 2409101202-2412312359
No
IREG
FOR SVC AFT HRS CALL (913) 755-2345.
MIAMI COUNTY
201 S. PEARL
PAOLA, KS 66071
Phone: 913-294-9500
CHARLES BARTLETT
32549 W 327TH ST
PAOLA, KS 66071
Phone: 913-707-8372
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
DUSK-DAWN. ACTVT MIRL RWY 03/21 & REIL RWY 03 & /21; PAPI RWY 03 & 21 - CTAF.
DUSK-2400
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 03/21

3398 ft. x 60 ft.
ASPH
Good
NONE
MED
8 /F/D/Y/U
--
--
--
--
  Runway 03 Runway 21
True Heading 38°218°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 32' 15"N 38° 32' 41"N
Longitude 94° 55' 24"W 94° 54' 57"W
Elevation 939' 941'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

1940 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 153°333°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 32' 32"N 38° 32' 15"N
Longitude 94° 55' 23"W 94° 55' 11"W
Elevation 926' 941'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2PUBLIC PHONE AVBL.
A110-3FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
MIAMI COUNTY (IATA: K81) is a public airport located in PAOLA, KS.
