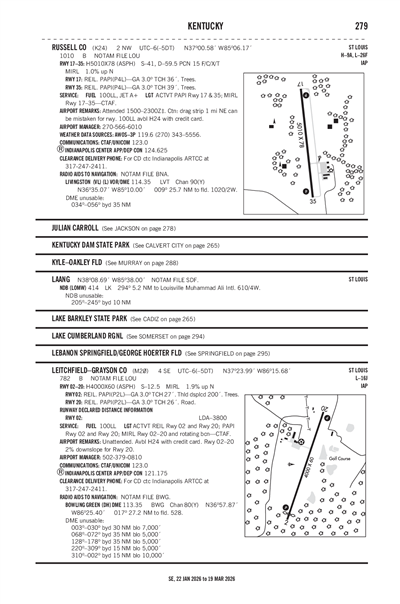

RUSSELL COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K24
Local K24
RUSSELL COUNTY
PublicPUB

2 miles NW of JAMESTOWN, KY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 00' 35"N 85° 06' 10"W
Elevation
1010' MSL
Pattern Alt
2010' MSL
Mag Variation
5°W
Declination
4°W
Fuel
JET A (FSII), 100LL
FSS
LOUISVILLE (LOU)
Sectional
ST LOUIS
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KK24 VFR
10:35 PM CST
Clear
10sm
54°F
49°F
30.20"Hg
Calm
AO2 T01220095
METAR KK24 040435Z AUTO 00000KT 10SM CLR 12/10 A3020 RMK AO2 T01220095
+ Add Your Business

K24 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 119.6
(270) 343-5556

Common

CTAF 123.0
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
UNICOM 123.0

Center

INDIANAPOLIS CENTER 124.625
LOW, APCH/DEP SVC PRVDD BY INDIANAPOLIS ARTCC ON FREQS 124.625/371.925 (NEW HOPE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSME (24nm)
Tue, 3/3 6:40 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 11:00 PM EST
Broken 6,000'
6sm
200° 7kts
VFR
11:00 PM EST - 3:00 AM EST
Broken 5,000'
6sm
190° 6kts
VFR
3:00 AM EST - 12:00 PM EST
Broken 5,000'
6sm
190° 6kts
VFR
12:00 PM EST - 7:00 PM EST
Broken 3,500'
6sm
230° 9kts
Gusts 17kts
TAF KSME 032340Z 0400/0424 20007KT P6SM BKN060
   FM040400 19006KT P6SM BKN050 WS020/22035KT
   FM040800 19006KT P6SM BKN050
   FM041700 23009G17KT P6SM BKN035
K24
EffectiveExpiresCategoryNOTAM
Domestic
2/11/26
1326Z
6/11/26
2359Z
!LOU 02/319 K24 OBST TOWER LGT (ASR 1063507) 364840.70N0850746.70W (12.4NM SSW K24) 1261FT (285FT AGL) U/S 2602111326-2606112359
2/4/26
1349Z
Runway!LOU 02/133 K24 RWY 35 PAPI U/S 2602041349-2607212111EST
No
0900-1700
RUSSELL COUNTY AIRPORT BOARD
628 C SMITH ROAD
RUSSELL SPRINGS, KY 42629
Phone: 270-585-1935
BRAXTON SMITH
628 C SMITH ROAD
RUSSELL SPRINGS, KY 42629
Phone: 270-566-6010
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
LOU
--
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 17/35

5010 ft. x 78 ft.
ASPH
Good
NONE
MED
15/F/C/X/T
41,000lbs
60,000lbs
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 00' 60"N 37° 00' 10"N
Longitude 85° 06' 12"W 85° 06' 07"W
Elevation 1,010' 958'
Threshold Crossing Height 36 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1CTN: DRAG STRIP 1 MI NE MAY BE MISTAKEN FOR RWY.
A110-2FOR CD CTC INDIANAPOLIS ARTCC AT 317-247-2411.
A70-100LLAVBL H24 WITH CREDIT CARD.
A81-APTACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
E111PROVIDED VFR ONLY; CLEAR 20:1 APCH SLOPE FOR EACH RY; RUSSEL COUNTY ARPT RUSSELL SPRINGS KY CLOSED CONCURRENTLY; ARPT DESIGNED IAW AC 150/4300-13.
RUSSELL COUNTY (IATA: K24) is a public airport located in JAMESTOWN, KY, US.
