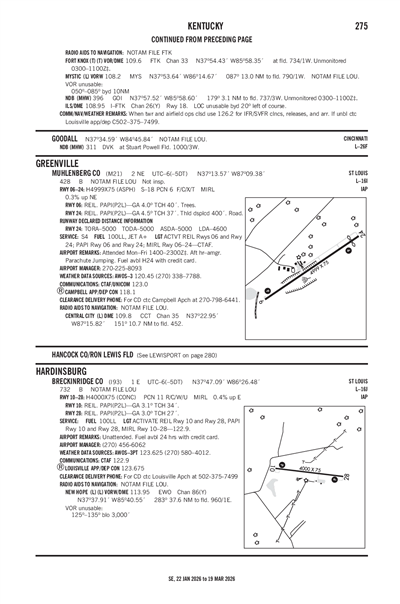

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

I93
BRECKINRIDGE COUNTY
PublicPUB

1 miles E of HARDINSBURG, KY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 47' 05"N 86° 26' 29"W
732' MSL
1732' MSL
04W
100LL
LOUISVILLE (LOU)
ST LOUIS
INDIANAPOLIS (ZID)
10/31/24-11/28/24
KKY8 (22nm) MVFR
5:55 AM CST
Haze
Clear
5sm
52°F
32°F
30.19"Hg
050° 5kts
Gusts 10kts
A01
KKY8 091155Z AUTO 05005G10KT 5SM HZ CLR 11/M00 A3019 RMK A01
Add Your Business

I93 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFTK (23nm)
Fri, 11/8 3:00 PM EST
Fri, 11/8 3:00 PM EST - Sat, 11/9 9:00 PM EST
VFR
3:00 PM EST - 10:00 AM EST
Scattered 25,000'
6sm
30.21"Hg
VRB° 6kts
VFR
Becoming 10:00 AM EST - 3:00 PM EST
Scattered 20,000'
Few 10,000'
6sm
30.15"Hg
090° 12kts
Gusts 18kts
MVFR
Becoming 3:00 PM EST - 9:00 PM EST
Overcast 2,500'
Scattered 1,500'
6sm
30.09"Hg
100° 12kts
TAF KFTK 082000Z 0820/1002 VRB06KT 9999 SCT250 QNH3021INS
   BECMG 0915/0916 09012G18KT 9999 FEW100 SCT200 QNH3016INS
   BECMG 0920/0921 10012KT 9999 SCT015 OVC025 QNH3009INS TX17/0820Z TN05/0912Z LAST NO AMDS AFT 0904 NEXT 1212
I93
Domestic
11/5/240555Z !LOU 11/048 I93 OBST TOWER LGT (ASR 1270783) 374808.30N0862000.20W (5.2NM ENE I93) 1082.0FT (262.1FT AGL) U/S 2411050555-2411200455
10/30/241816Z !LOU 10/408 I93 OBST TOWER LGT (ASR 1200816) 374657.80N0863626.30W (7.9NM W I93) 1036.1FT (306.1FT AGL) U/S 2410301816-2501302359
10/29/242020Z !LOU 10/396 I93 OBST TOWER LGT (ASR 1043896) 375217.80N0861603.50W (9.8NM ENE I93) 1234.9FT (499.0FT AGL) U/S 2410292020-2411302359
10/1/241208Z !LOU 10/009 I93 OBST TOWER LGT (ASR 1245605) 374847.70N0863831.50W (9.6NM W I93) 1115.8FT (404.9FT AGL) U/S 2410011208-2411151207
8/28/241228Z !LOU 08/454 I93 RWY 28 RWY END ID LGT U/S 2408281228-2502282111EST
7/5/242304Z !LOU 07/075 I93 AD AP ABN U/S 2407052304-2411302359
4/18/242236Z !LOU 04/289 I93 SVC AUTOMATED WX BCST SYSTEM COMMISSIONED 123.625 270-580-4012 2404182236-2504182359
No
UNATNDD
BRECKINRIDGE CO ARPT BOARD
BOX 742
HARDINSBURG, KY 40143
Phone: (270) 580-4465
BRECKINRIDGE CO ARPT BOARD
799 OAK STREET
HARDINSBURG, KY 40143
Phone: (270) 456-6062
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
LOU
--
ACTVT REIL RYS 10 & 28; PAPI RYS 10 & 28; MIRL RY 10/28 - 122.9.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 10/28

4000 ft. x 75 ft.
CONC
Good
NONE
MED
11 /R/C/W/U
--
--
--
--
  Runway 10 Runway 28
True Heading 97°277°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 47' 08"N 37° 47' 03"N
Longitude 86° 26' 53"W 86° 26' 04"W
Elevation 714' 732'
Threshold Crossing Height 34 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FUEL AVBL 24 HRS W/CREDIT CARD
A110-2FOR CD CTC LOUISVILLE APCH AT 502-375-7499
BRECKINRIDGE COUNTY (IATA: I93) is a public airport located in HARDINSBURG, KY.
