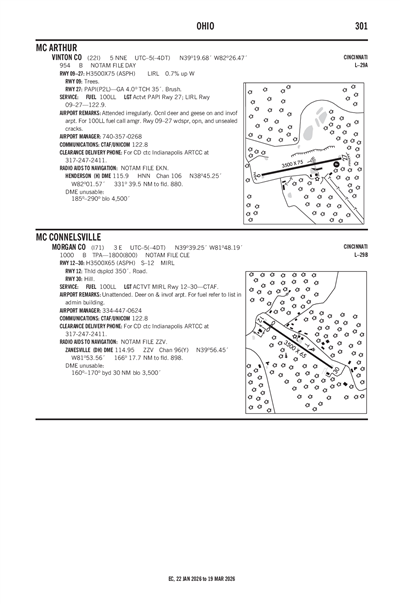

MORGAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

I71
Local I71
MORGAN COUNTY
PublicPUB

3 miles E of MC CONNELSVILLE, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 39' 15"N 81° 48' 11"W
Elevation
1000' MSL
Pattern Alt
1800' MSL
Mag Variation
8°W
Declination
6°W
Fuel
100LL
FSS
CLEVELAND (CLE)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KZZV (18nm) IFR
8:53 PM EST
Light Rain and Mist
Overcast 1,400'
1sm
51°F
51°F
30.12"Hg
Calm
AO2 SLP202 P0002 T01060106
METAR KZZV 040153Z AUTO 00000KT 1SM -RA BR OVC014 11/11 A3012 RMK AO2 SLP202 P0002 T01060106
+ Add Your Business

I71 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RWY 12/30 - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KZZV (18nm)
Tue, 3/3 6:33 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 10:00 PM EST
Mist
Overcast 800'
4sm
200° 4kts
LIFR
10:00 PM EST - 10:00 AM EST
Mist
Overcast 400'
Scattered 300'
3sm
Calm
IFR
10:00 AM EST - 7:00 PM EST
Light Rain and Mist
Overcast 600'
5sm
060° 4kts
TAF KZZV 032333Z 0400/0424 20004KT 4SM BR OVC008
   FM040300 00000KT 3SM BR SCT003 OVC004
   FM041500 06004KT 5SM -RA BR OVC006
I71
EffectiveExpiresCategoryNOTAM
Domestic
1/30/26
1844Z
3/5/26
2359Z
!CLE 01/703 I71 OBST TOWER LGT (ASR 1015644) 392937.00N0815316.00W (10.5NM SSW I71) 1351.7FT (307.7FT AGL) U/S 2601301844-2603052359
1/23/26
2316Z
3/9/26
2316Z
!CLE 01/141 I71 OBST TOWER LGT (ASN 2023-AGL-21494-OE) 393647N0813427W (10.8NM ESE I71) 1276FT (290FT AGL) U/S 2601232316-2603092316
No
UNATNDD
MORGAN COUNTY AIRPORT AUTH
995 E AIRPORT RD NE
MCCONNELSVILLE, OH 43756
Phone: 334-447-0624
KURT JOHNSON
995 E AIRPORT RD NE
MCCONNELLSVILLE, OH 43756
Phone: 334-447-0624
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

3500 ft. x 65 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 119°299°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 39° 39' 23"N 39° 39' 07"N
Longitude 81° 48' 31"W 81° 47' 52"W
Elevation 1,000' 1,000'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1DEER ON & INVOF ARPT.
A110-2FOR CD CTC INDIANAPOLIS ARTCC AT 317-247-2411.
A16EMERG TEL 740-962-3333-SHERIFF OFC.
A57-12APCH SLP 0:1 TO DTHR OVR 20 FT HILL, 0 FT DIST, 96 FT L.
A57-30ALSO APCH SLP 17:1 OVR 74 FT TREES, 1527 FT DIST, 62 FT R.
A58-12+12 FT TRRN, 0 FT DIST, 125 FT L.
A58-30+7 FT TRRN, 0 FT DIST, 125 FT R.
A70-100LLFOR FUEL REFER TO LIST IN ADMIN BLDG.
A75-HPRIOR CDN RQRD.
A75-TNO TIE DOWN ROPES.
A81-APTACTVT MIRL RWY 12/30 - CTAF.
E111VFR ONLY.
MORGAN COUNTY (IATA: I71) is a public airport located in MC CONNELSVILLE, OH, US.
