iFlightPlanner



...

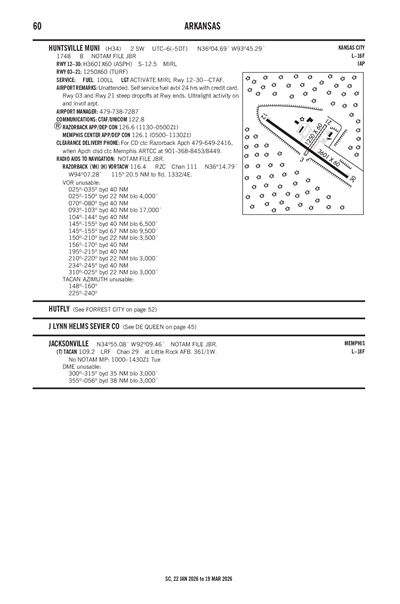

HUNTSVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

H34
Local H34
HUNTSVILLE MUNI
PublicPUB

2 miles SW of HUNTSVILLE, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 04' 42"N 93° 45' 17"W
Elevation
1748' MSL
Pattern Alt
2748' MSL
Mag Variation
1°E
Declination
1°E
Fuel
100LL
FSS
JONESBORO (JBR)
Sectional
KANSAS CITY
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KFYV (20nm) VFR
1:53 AM CST
Clear
10sm
70°F
58°F
30.03"Hg
170° 12kts
AO2 SLP154 T02110144
METAR KFYV 040753Z AUTO 17012KT 10SM CLR 21/14 A3003 RMK AO2 SLP154 T02110144
+ Add Your Business

H34 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RY 12/30 - CTAF.
UNICOM 122.8

Approach

RAZORBACK APPROACH 126.6

Departure

RAZORBACK DEPARTURE 126.6

Center

RAZORBACK CENTER 126.1
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 126.1/269.0 (FAYETTEVILLE RCAG) WHEN RAZORBACK APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFYV (20nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 3:00 AM CST
Broken 12,000'
6sm
180° 11kts
VFR
3:00 AM CST - 8:00 AM CST
Broken 12,000'
Scattered 3,500'
6sm
VRB° 6kts
MVFR
4:00 AM CST - 8:00 AM CST
Light Rain and Mist
Broken 2,500'
5sm
Calm
MVFR
8:00 AM CST - 2:00 PM CST
Light Showers and Rain and Mist and Thunderstorm in vicinity
Broken 1,500'
Scattered 800'
6sm
VRB° 6kts
IFR
Temporary 10:00 AM CST - 2:00 PM CST
Thunderstorm and Rain and Mist
Broken 700'
2sm
VRB° 11kts
IFR
2:00 PM CST - 8:00 PM CST
Light Thunderstorm and Rain
Broken 700'
3sm
VRB° 6kts
IFR
8:00 PM CST - 12:00 AM CST
Light Showers and Rain and Mist and Thunderstorm in vicinity
Broken 600'
4sm
VRB° 4kts
TAF KFYV 040520Z 0406/0506 18011KT P6SM BKN120
   FM040900 VRB06KT P6SM SCT035 BKN120
   PROB30 0410/0414 5SM -RA BR BKN025
   FM041400 VRB06KT 6SM -SHRA BR VCTS SCT008 BKN015CB
   TEMPO 0416/0420 VRB11KT 2SM TSRA BR BKN007CB
   FM042000 VRB06KT 3SM -TSRA BKN007CB
   FM050200 VRB04KT 4SM -SHRA BR VCTS BKN006CB
H34
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
1355Z
3/20/26
2359Z
!JBR 02/200 H34 OBST TOWER LGT (ASR 1314493) 360705.42N0934831.17W (3.5NM NW H34) 1822FT (260FT AGL) U/S 2602201355-2603202359
2/15/26
0436Z
4/1/26
0435Z
!JBR 02/141 H34 OBST TOWER LGT (ASN 2024-ASW-11280-OE) 360747N0933158W (11.2NM ENE H34) 2146FT (290FT AGL) U/S 2602150436-2604010435
No
UNATNDD
CITY OF HUNTSVILLE
PO BOX 844
HUNTSVILLE, AR 72740
Phone: 479-738-6607
CHARLES COGER
PO BOX 844
HUNTSVILLE, AR 72740
Phone: 479-738-7287
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
ACTVT MIRL RY 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
Pilot Instruction

Runway 03/21

1250 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 38°218°
Traffic Pattern
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 36° 04' 38"N 36° 04' 48"N
Longitude 93° 45' 19"W 93° 45' 10"W
Elevation 1,739' 1,738'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

3601 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 125°305°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD POOR
Latitude 36° 04' 51"N 36° 04' 31"N
Longitude 93° 45' 36"W 93° 45' 00"W
Elevation 1,744' 1,745'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-2FOR CD CTC RAZORBACK APCH 479-649-2416, WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A33-03/21_CONDSTEEP DROP OFF AT RY ENDS.
A70-100LLSELF SERVICE FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT MIRL RY 12/30 - CTAF.
HUNTSVILLE MUNI (IATA: H34) is a public airport located in HUNTSVILLE, AR, US.
