F89
WINNSBORO MUNI
Public
PUB
1 miles E of WINNSBORO, LA
View on
Map
Status
Operational
Coordinates
32° 09' 11"N
91° 41' 55"W
Elevation
78' MSL
Pattern Alt
1078' MSL
Mag Variation
04E
Fuel
100LL
FSS
DE RIDDER (DRI)
Sectional
MEMPHIS
ARTCC
HOUSTON (ZHU)
Data Effective
4/17/25-5/15/25
KMLU (28nm)
VFR
2:53 PM CST
RAW
Clear
Viz
10sm
Temp
77°F
Dew
48°F
Pres
29.93"Hg
Wind
220° 7kts
RMK
AO2 SLP134 T02500089 56028
METAR KMLU 072053Z 22007KT 10SM CLR 25/09 A2993 RMK AO2 SLP134 T02500089 56028
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
F89 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.

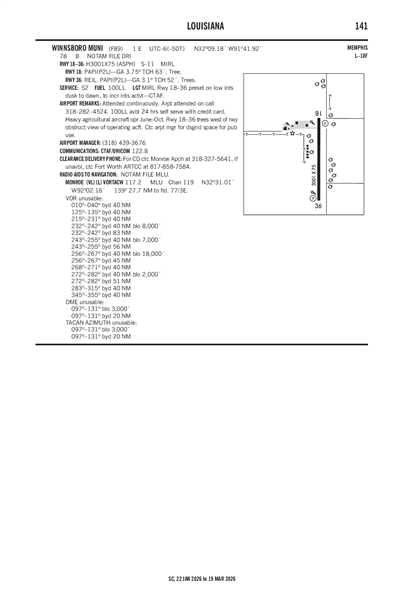

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KMLU (28nm)
RAW
Reported
Wed, 1/7 11:20 AM CST
Valid
Wed, 1/7 12:00 PM CST - Thu, 1/8 12:00 PM CST
MVFR
12:00 PM CST - 1:00 PM CST
Mist
Overcast 1,000'
Viz
6sm
Wind
Calm
MVFR
1:00 PM CST - 6:00 PM CST
Broken 1,500'
Viz
6sm
Wind
180° 3kts
VFR
6:00 PM CST - 10:00 PM CST
Broken 20,000'
Scattered 2,500'
Viz
6sm
Wind
110° 3kts
VFR
10:00 PM CST - 3:00 AM CST
Broken 20,000'
Few 3,000'
Viz
6sm
Wind
140° 4kts
MVFR
3:00 AM CST - 6:00 AM CST
Mist
Overcast 2,500'
Viz
6sm
Wind
180° 3kts
IFR
6:00 AM CST - 12:00 PM CST
Mist
Overcast 700'
Viz
4sm
Wind
160° 6kts
TAF KMLU 071720Z 0718/0818 00000KT 6SM BR OVC010
FM071900 18003KT P6SM BKN015
FM080000 11003KT P6SM SCT025 BKN200
FM080400 14004KT P6SM FEW030 BKN200
FM080900 18003KT 6SM BR OVC025
FM081200 16006KT 4SM BR OVC007
F89
Effective
Expires
Category
NOTAM
Domestic
11/19/25
1433Z
3/19/26
1433Z
!DRI 11/214 F89 OBST TOWER LGT (ASR 1264078) 320257.80N0913924.40W (6.5NM SSE F89) 424.2FT (350.1FT AGL) U/S 2511191433-2603191433
ATC Tower
No
Attendance
ON CALL
318-282-4524
Owner
CITY OF WINNSBORO
PO BOX 250
WINNSBORO, LA 71295
Phone: 318-435-9087
Manager
TERRY SHIRLEY
PO BOX 250
WINNSBORO, LA 71295
Phone: (318) 439-3676
FSS
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
NOTAM
DRI
Light Schedule
--
Lights
MIRL RWY 18/36 PRESET LOW INTS DUSK TO DAWN, TO INCR INTS ACTVT-CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
Airframe Repair
Minor
Pwrplant Repair
Minor
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 18/36
Dimensions
3001 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
11,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
180°
0°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
32° 09' 26"N
32° 08' 56"N
Longitude
91° 41' 55"W
91° 41' 55"W
Elevation
76'
78'
Threshold Crossing Height
63 ft. AGL
52 ft. AGL
Visual Glide Path Angle
3.75°
3.1°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
A110-2
<HEAVY AGRI ACFT OPS JUNE THRU OCT.
A110-3
RWY 18/36 TREES WEST OF RWY OBST VIEW OF OPERATING ACFT.
A110-5
FOR CD CTC MONROE APCH AT 318-327-5641, IF UNAVBL, CTC FORT WORTH ARTCC AT 817-858-7584.
WINNSBORO MUNI (IATA: F89) is a public airport located in WINNSBORO, LA.
