RANGER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

F23
Local F23
RANGER MUNI
PublicPUB

2 miles S of RANGER, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 27' 05"N 98° 40' 53"W
Elevation
1470' MSL
Pattern Alt
2470' MSL
Mag Variation
4°E
Declination
7°E
Fuel
None Listed
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
K6P9 (5nm) VFR
7:55 PM CST
Overcast 8,500'
Broken 4,800'
Scattered 4,000'
10sm
62°F
58°F
29.94"Hg
Calm
AO2 T01650142
METAR K6P9 050155Z AUTO 00000KT 10SM SCT040 BKN048 OVC085 17/14 A2994 RMK AO2 T01650142
+ Add Your Business

F23 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

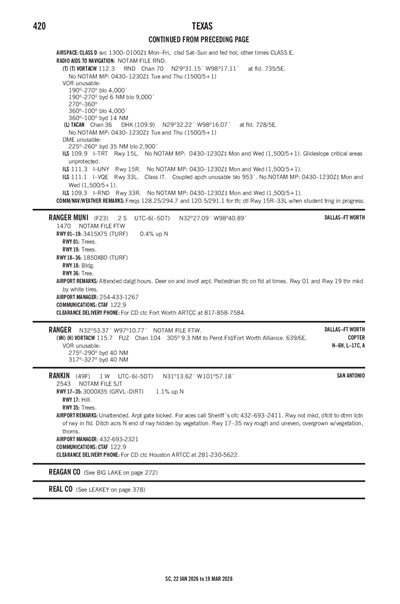

FAA A/FD Pages

Terminal Area Forecast

KABI (51nm)
Wed, 3/4 5:20 PM CST
Wed, 3/4 6:00 PM CST - Thu, 3/5 6:00 PM CST
VFR
6:00 PM CST - 2:00 AM CST
Overcast 6,000'
6sm
VRB° 6kts
MVFR
2:00 AM CST - 6:00 AM CST
Broken 1,500'
6sm
170° 7kts
IFR
6:00 AM CST - 3:00 PM CST
Overcast 1,500'
Broken 700'
6sm
170° 15kts
Gusts 25kts
VFR
3:00 PM CST - 6:00 PM CST
Scattered 3,000'
6sm
170° 20kts
Gusts 30kts
TAF KABI 042320Z 0500/0524 VRB06KT P6SM OVC060
   FM050800 17007KT P6SM BKN015
   FM051200 17015G25KT P6SM BKN007 OVC015
   FM052100 17020G30KT P6SM SCT030
F23
No NOTAM Available
No
DALGT
CITY OF RANGER
400 W. MAIN
RANGER, TX 76470
Phone: 254-647-3522
JARED CALVERT
1420 ODDIE ST
RANGER, TX 76470
Phone: 254-433-1267
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
--
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3415 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 21°201°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 26' 50"N 32° 27' 21"N
Longitude 98° 41' 01"W 98° 40' 46"W
Elevation 1,457' 1,469'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

1850 ft. x 80 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1PEDESTRIAN TFC ON FLD AT TIMES.
A110-2RWY 01 & 19 THR MKD BY WHITE TIRES.
A110-3DEER ON & INVOF ARPT.
A110-4FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
E111PRE-DATES THE ACT.
RANGER MUNI (IATA: F23) is a public airport located in RANGER, TX, US.
