No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

E95
BENSON MUNI/PAUL KERCHUM FLD
PublicPUB

3 miles NW of BENSON, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 59' 58"N 110° 21' 29"W
3831' MSL
4831' MSL
12E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
7/11/24-8/8/24
KALK (24nm) VFR
2:56 AM MST
Clear
10sm
56°F
47°F
30.04"Hg
270° 9kts
AO2 SLP084 T01330083 $
KALK 190956Z AUTO 27009KT 10SM CLR 13/08 A3004 RMK AO2 SLP084 T01330083 $
Add Your Business

E95 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
520-265-5232
 118.475

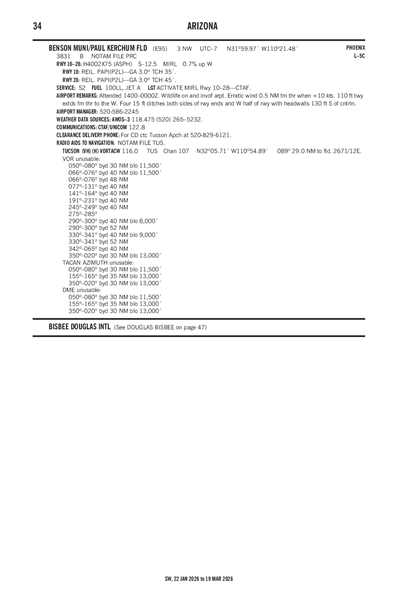

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KFHU (25nm)
Wed, 9/18 9:00 PM MST
Wed, 9/18 9:00 PM MST - Fri, 9/20 3:00 AM MST
VFR
9:00 PM MST - 8:00 AM MST
Sky Clear
6sm
30.03"Hg
230° 9kts
VFR
Becoming 8:00 AM MST - 11:00 AM MST
Sky Clear
6sm
30.03"Hg
140° 9kts
VFR
Becoming 11:00 AM MST - 6:00 PM MST
Sky Clear
6sm
29.94"Hg
190° 10kts
Gusts 16kts
Light Turbulence: 4,000 - 7,000'
VFR
Temporary 1:00 PM MST - 6:00 PM MST
No Clouds
N/A
210° 15kts
Gusts 22kts
Moderate, Clear Air, Occasional: 4,000 - 7,000'
VFR
Becoming 6:00 PM MST - 3:00 AM MST
Sky Clear
6sm
30.00"Hg
230° 12kts
TAF KFHU 190400Z 1904/2010 23009KT 9999 SKC QNH3003INS WND VRB06KT AFT 1912
   BECMG 1915/1916 14009KT 9999 SKC QNH3004INS
   BECMG 1918/1919 19010G16KT 9999 SKC 510007 QNH2995INS
   TEMPO 1920/2001 21015G22KT 520007
   BECMG 2001/2002 23012KT 9999 SKC QNH3000INS TX31/1921Z TN14/1911Z
E95
Domestic
7/26/241738Z !PRC 07/280 E95 SVC AUTOMATED WX BCST SYSTEM CEILING U/S 2407261738-2410042359
No
0700-1700
CITY OF BENSON
120 W. 6TH STREET
BENSON, AZ 85602
Phone: 520-586-2245
BRAD HAMILTON
P.O BOX 2223
BENSON, AZ 85602
Phone: 520-586-2245
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
15
0
0
1
0
2
Minor
Minor
None
None
Pilot Instruction
Aircraft Rental

Runway 10/28

4002 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 101°281°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 00' 02"N 31° 59' 54"N
Longitude 110° 21' 51"W 110° 21' 06"W
Elevation 3,831' 3,804'
Threshold Crossing Height 35 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3WILDLIFE ON & INVOF ARPT.
A110-5FOR CD CTC TUCSON APCH AT 520-829-6121.
BENSON MUNI/PAUL KERCHUM FLD (IATA: E95) is a public airport located in BENSON, AZ.
