iFlightPlanner



...

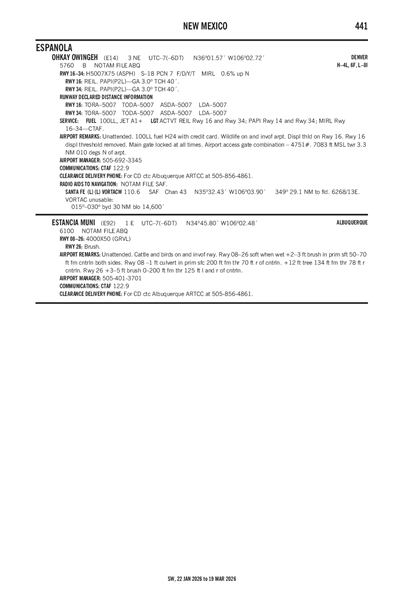

ESTANCIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E92
Local E92
ESTANCIA MUNI
PublicPUB

1 miles E of ESTANCIA, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 45' 48"N 106° 02' 29"W
Elevation
6100' MSL
Pattern Alt
7100' MSL
Mag Variation
8°E
Declination
11°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
K0E0 (13nm) VFR
8:55 PM MST
Clear
10sm
42°F
11°F
30.12"Hg
Calm
AO2 T00561119
METAR K0E0 040355Z AUTO 00000KT 10SM CLR 06/M12 A3012 RMK AO2 T00561119
+ Add Your Business

E92 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KABQ (33nm)
Tue, 3/3 4:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Few 12,000'
6sm
290° 12kts
Gusts 22kts
VFR
7:00 PM MST - 11:00 PM MST
Few 12,000'
6sm
330° 9kts
VFR
11:00 PM MST - 8:00 AM MST
Sky Clear
6sm
010° 6kts
VFR
Temporary 2:00 AM MST - 5:00 AM MST
No Clouds
N/A
070° 11kts
VFR
8:00 AM MST - 5:00 PM MST
Sky Clear
6sm
VRB° 4kts
TAF KABQ 032320Z 0400/0424 29012G22KT P6SM FEW120
   FM040200 33009KT P6SM FEW120
   FM040600 01006KT P6SM SKC
   TEMPO 0409/0412 07011KT
   FM041500 VRB04KT P6SM SKC
E92
No NOTAM Available
No
UNATNDD
TOWN OF ESTANCIA
PO BOX 166
ESTANCIA, NM 87016
Phone: 505-384-2708
CHET LEACH
PO BOX 166
ESTANCIA, NM 87016
Phone: 505-401-3701
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 08/26

4000 ft. x 50 ft.
GRAVEL
Fair
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2CATTLE & BIRDS ON & INVOF RWY.
A110-6FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14JOHN LORENZ - 505-231-6235.
A16EMERG - 505-384-2705.
A30-08/26SOFT WHEN WET. +2-3FT BRUSH IN PRIM SFC 50-70 FT FM CNTRLN BOTH SIDES.
A30A-08-1 FT CULVERT IN PRIM SFC 200 FT FM THR 70 FT R OF CNTRLN. +12 FT TREE 134 FT FM THR 78 FT R CNTRLN.
A30A-26+3-5 FT BRUSH 0-200 FT FM THR 125 FT L & R OF CNTRLN.
ESTANCIA MUNI (IATA: E92) is a public airport located in ESTANCIA, NM, US.
