iFlightPlanner



...

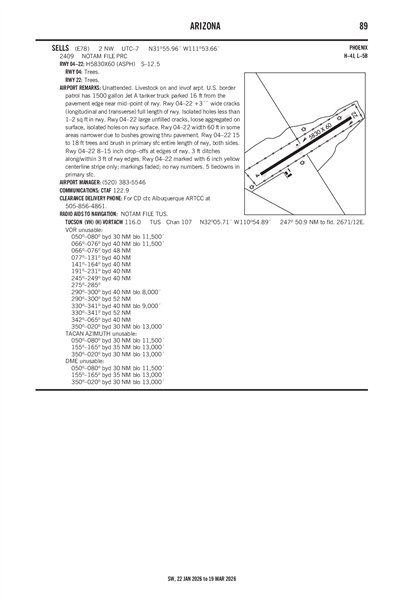

SELLS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E78
Local E78
SELLS
PublicPUB

2 miles NW of SELLS, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 55' 57"N 111° 53' 39"W
Elevation
2409' MSL
Pattern Alt
3409' MSL
Mag Variation
10°E
Declination
12°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KRYN (39nm) VFR
7:45 PM MST
Clear
10sm
70°F
21°F
29.96"Hg
270° 5kts
LAST
METAR KRYN 040245Z 27005KT 10SM CLR 21/M06 A2996 RMK LAST
+ Add Your Business

E78 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KTUS (49nm)
Tue, 3/3 4:22 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Sky Clear
6sm
290° 12kts
Gusts 20kts
VFR
7:00 PM MST - 12:00 AM MST
Sky Clear
6sm
250° 6kts
VFR
12:00 AM MST - 1:00 PM MST
Sky Clear
6sm
140° 7kts
VFR
1:00 PM MST - 5:00 PM MST
Broken 25,000'
6sm
310° 19kts
TAF KTUS 032322Z 0400/0424 29012G20KT P6SM SKC
   FM040200 25006KT P6SM SKC
   FM040700 14007KT P6SM SKC
   FM042000 31019KT P6SM BKN250
E78
No NOTAM Available
No
UNATNDD
TOHONO O'ODHAM NATION
PO BOX 837
SELLS, AZ 85634
Phone: 520-383-2028
DEMASCUS FRANCISCO
PO BOX 837
SELLS, AZ 85634
Phone: (520) 383-5546
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

5830 ft. x 60 ft.
ASPH
Poor
NONE


12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 58°238°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 31° 55' 42"N 31° 56' 12"N
Longitude 111° 54' 08"W 111° 53' 11"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-25 TIEDOWNS IN PRIMARY SFC.
A110-3LIVESTOCK ON INVOF ARPT.
A110-4RY 04/22 15 TO 18 FT TREES AND BRUSH IN PRIMARY SURFACE ENTIRE LENGTH OF RY, BOTH SIDES.
A110-5RWY 04/22 8-15 INCH DROP-OFFS AT EDGES OF RWY. 3 FT DITCHES ALONG//WITHIN 3 FT OF RWY EDGES.
A110-6U.S. BORDER PATROL HAS 1500 GALLON JET A TANKER TRUCK PARKED 16 FT. FROM THE PAVEMENT EDGE NEAR MID-POINT OF RUNWAY.
A110-7FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14DIRECTOR OF PLANNING AND ECONOMIC DEVELOPMENT.
A32-04/22WIDTH 60 FT IN SOME AREAS; NARROWER DUE TO BUSHES GROWING THRU PAVEMENT.
A33-04/22_CONDRWY 04/22 LARGE UNFILLED CRACKS, LOOSE AGGREGATE ON SURFACE, ISOLATED HOLES ON RWY SURFACE.
A33-04/22_SURFRUNWAY 4-22 +3" WIDE CRACKS (LONGITUDINAL AND TRANSVERSE) FULL LENGTH OF RUNWAY. ISOLATED HOLES 1-2 SQ. FT. IN RUNWAY.
A42-04_MARKRY MKD WITH 6 INCH YELLOW CNTRLN STRIPE ONLY; MKGS FADED; NO RY NUMBER.
A42-22_MARKRY MKD WITH 6 INCH YELLOW CNTRLN STRIPE ONLY; MKGS FADED; NO RY NUMBER.
A58-04RY 04 10 TO 12 FT TREES AND BRUSH 0FT. TO 200 FT. FROM THRESHOLD 0B; +3 FT. BERM 100 FT. FROM THRESHOLD ON CENTERLINE ACROSS APPROACH.
A58-2212 FT TREE 123 FT FROM EOR & 59 FT R; 4 FT FENCE 75 FT FROM EOR 40 FT. LEFT & RIGHT OF CENTERLINE.
E111ESTABD PRIOR TO 5/15/59.
SELLS (IATA: E78) is a public airport located in SELLS, AZ, US.
