GILA BEND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E63
Local E63
GILA BEND MUNI
PublicPUB

2 miles E of GILA BEND, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 57' 37"N 112° 40' 25"W
Elevation
789' MSL
Pattern Alt
1589' MSL
Mag Variation
10°E
Declination
13°E
Fuel
100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KGXF (5nm) VFR
9:55 PM MST
Clear
10sm
68°F
24°F
29.93"Hg
120° 3kts
AO2 SLP127 T02011043 FZRANO $
METAR KGXF 040455Z AUTO 12003KT 10SM CLR 20/M04 A2993 RMK AO2 SLP127 T02011043 FZRANO $
+ Add Your Business

E63 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RWY 04/22. CTAF LIGHTING OTS INDEF.
UNICOM 122.8

Flight Service

Flight Service 122.1
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO ON FREQ 122.1R/116.6T (GILA BEND RCO).

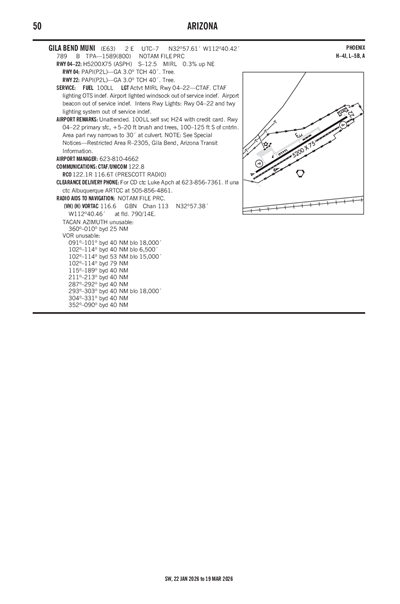

FAA A/FD Pages

Terminal Area Forecast

KLUF (38nm)
Tue, 3/3 1:00 PM MST
Tue, 3/3 1:00 PM MST - Wed, 3/4 7:00 PM MST
VFR
1:00 PM MST - 8:00 PM MST
Sky Clear
6sm
29.82"Hg
VRB° 6kts
VFR
Becoming 8:00 PM MST - 9:00 AM MST
Scattered 25,000'
6sm
29.91"Hg
VRB° 6kts
VFR
Becoming 9:00 AM MST - 7:00 PM MST
Scattered 25,000'
Few 20,000'
6sm
29.82"Hg
VRB° 6kts
TAF KLUF 032000Z 0320/0502 VRB06KT 9999 SKC QNH2983INS
   BECMG 0403/0404 VRB06KT 9999 SCT250 QNH2990INS
   BECMG 0416/0417 VRB06KT 9999 FEW200 SCT250 QNH2981INS TX30/0323Z TN14/0413Z
E63
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
0700Z
3/7/26
0600Z
!PRC 02/218 E63 OBST TOWER LGT (ASR 1222969) 325420.60N1125901.00W (15.9NM WSW E63) 984.9FT (256.9FT AGL) U/S 2602200700-2603070600
No
UNATNDD
TOWN OF GILA BEND
PO BOX A
GILA BEND, AZ 85337
Phone: 623-810-4662
COREY DRURY
TOWN OF GILA BEND DEPT. OF PUB WKS P.O. BOX A
GILA BEND, AZ 85337
Phone: 623-810-4662
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT MIRL RWY 04/22. CTAF LIGHTING OTS INDEF.
N/A
AIRPORT BEACON OUT OF SERVICE INDEF.
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

5200 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 57°237°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 57' 23"N 32° 57' 50"N
Longitude 112° 40' 51"W 112° 39' 59"W
Elevation 774' 789'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-4FOR CD CTC LUKE APCH AT 623-856-7361. IF UNA CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-5AREA ALONGSIDE RWY NARROWS TO 30 FT AT CULVERT.
A30-04/22PRIMARY SFC +5-20 FT BRUSH & TREES 100-125 FT S OF CNTRLN. AREA PARL RWY NARROWS TO 30 FT AT CULVERT.
A40-04/22RWY 04/22 AND TWY LIGHTING SYSTEM OUT OF SERVCE INDEF.
A57-04CONTROLLING OBSTRUCTION EXCEEDS A 45 DEGREE SLOPE
A58-04RWY 04, 3-20 FT BRUSH AND TREES 0-200 FT FM THR, 105-125 FT RIGHT OF CNTRLN. 2-4 FT BERM 115 FT RIGHT OF CNTRLN, ENTIRE LENGHT OF RWY.
A58-22RWY 22, 3-15 FT BRUSH, 0- 200 FT FM THR, 60-125 FT LEFT OF CNTRLN. 2-4 FT BRUSH, 0-200 FT FM THR, 20-125 FT RIGHT OF CNTRLN. 4 FT DITCH, 0-200 FT FM THR, 80 FT BOTH SIDES OF CNTRLN.
A70-100LLSELF SVC H24 WITH CREDIT CARD.
A80AIRPORT BEACON OUT OF SERVICE INDEF.
A81-APTACTVT MIRL RWY 04/22. CTAF LIGHTING OTS INDEF.
A83AIRPORT LIGHTED WINDSOCK OUT OF SERVICE INDEF.
GILA BEND MUNI (IATA: E63) is a public airport located in GILA BEND, AZ, US.
