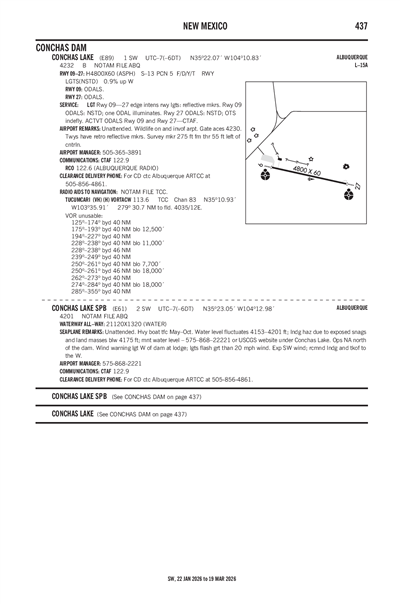

CONCHAS LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E61
Local E61
CONCHAS LAKE
PublicPUB

2 miles SW of CONCHAS DAM, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 23' 03"N 104° 12' 59"W
Elevation
4201' MSL
Pattern Alt
5201' MSL
Mag Variation
7°E
Declination
10°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KTCC (33nm) VFR
6:53 PM MST
Clear
10sm
58°F
33°F
29.98"Hg
070° 21kts
Gusts 32kts
AO2 PK WND 06034/0138 WSHFT 0118 SLP119 T01440006
METAR KTCC 040153Z AUTO 07021G32KT 10SM CLR 14/01 A2998 RMK AO2 PK WND 06034/0138 WSHFT 0118 SLP119 T01440006
+ Add Your Business

E61 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KCVS (75nm)
Tue, 3/3 11:00 AM MST
Tue, 3/3 11:00 AM MST - Wed, 3/4 5:00 PM MST
VFR
11:00 AM MST - 5:00 PM MST
Scattered 30,000'
6sm
29.91"Hg
270° 15kts
Gusts 30kts
Light Turbulence: up to 9,000'
VFR
Becoming 5:00 PM MST - 10:00 PM MST
Scattered 25,000'
6sm
29.91"Hg
260° 8kts
VFR
Becoming 10:00 PM MST - 11:00 AM MST
Scattered 15,000'
6sm
30.00"Hg
020° 10kts
Gusts 20kts
VFR
Becoming 11:00 AM MST - 5:00 PM MST
Few 15,000'
6sm
30.00"Hg
110° 12kts
TAF KCVS 031800Z 0318/0424 27015G30KT 9999 SCT300 510009 QNH2991INS
   BECMG 0400/0401 26008KT 9999 SCT250 QNH2992INS
   BECMG 0405/0406 02010G20KT 9999 SCT150 QNH3001INS
   BECMG 0418/0419 11012KT 9999 FEW150 QNH2999INS TX27/0321Z TN06/0413Z
E61
No NOTAM Available
No
UNATNDD
ABQ DIST; US ARMY CORPS OF ENG
287 BELL RANCH RD
CONCHAS DAM, NM 88416
Phone: 575-868-2221
JONATHAN HICKS
287 BELL RANCH RD
CONCHAS DAM, NM 88416
Phone: 575-868-2221
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
--
N/A
No
No
No
None
No
None
None
None
None
None

Runway ALL/WAY

21120 ft. x 1320 ft.

WATER
NONE


--
--
--
--
  Runway ALL Runway WAY
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HVY BOAT TFC MAY-OCT.
A110-2WATER LEVEL FLUCTUATES 4153-4201 FT; LNDG HAZ DUE TO EXPOSED SNAGS & LAND MASSES BLW 4175 FT; MNT WATER LEVEL - 575-868-2221, FACEBOOK OR USCGS WEBSITE UNDER CONCHAS LAKE.
A110-3OPS NA NORTH OF DAM.
A110-4WIND WARNING LGT W OF DAM AT LODGE; LGTS FLASH GTR THAN 20 MPH WIND.
A110-5EXP SW WIND; RCMND LNDG & TKOF TO THE W.
A110-8FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14EMERG - 505-520-8864.
A52-ALLALL/WAY DAM 5000 FT NE.
CONCHAS LAKE (IATA: E61) is a public seaplane base located in CONCHAS DAM, NM, US.
