E51
BAGDAD
Public
PUB
2 miles NE of BAGDAD, AZ
View on
Map
Status
Operational
Coordinates
34° 35' 34"N
113° 10' 19"W
Elevation
4196' MSL
Pattern Alt
5196' MSL
Mag Variation
13E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
E51 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

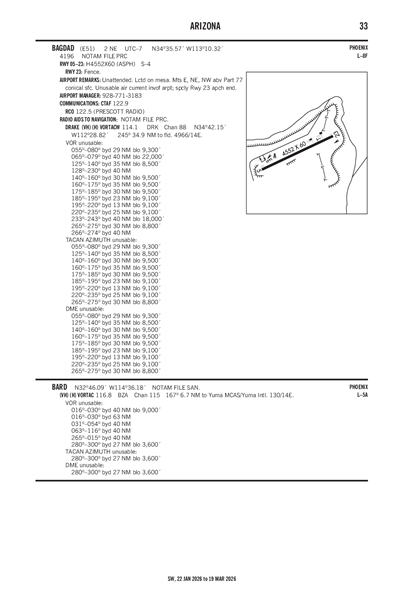

Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
No TAF is available for this location.
E51
Domestic
1/14/25
2316Z
!PRC 01/118 E51 OBST TOWER LGT (ASR 1286302) 342849.00N1132011.30W (10.5NM SW E51) 3513.1FT (250.0FT AGL) U/S 2501142316-2502282316
1/13/25
2205Z
!PRC 01/104 E51 OBST TOWER LGT (ASR 1291590) 343345.80N1132844.40W (15.3NM W E51) 3139.1FT (250.0FT AGL) U/S 2501132205-2505132205
ATC Tower
No
Attendance
UNATNDD
Owner
YAVAPAI COUNTY
1100 COMMERCE DR
PRESCOTT, AZ 86305
Phone: 928-771-3183
Manager
CHRIS STEELE
1100 COMMERCE DRIVE
PRESCOTT, AZ 86305
Phone: 928-771-3183
FSS
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NOTAM
PRC
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 05/23
Dimensions
4552 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
4,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
68°
248°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
34° 35' 26"N
34° 35' 43"N
Longitude
113° 10' 44"W
113° 09' 54"W
Elevation
4,196'
4,187'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-2
UNUSABLE AIR CURRENT INVOF APRT; SPCLY RWY 23 APCH END.
A110-3
MTNS E; NE; NW ABV PART 77 CONICAL SFDC.
A110-8
LCTD ON MESA.
BAGDAD (IATA: E51) is a public airport located in BAGDAD, AZ.
