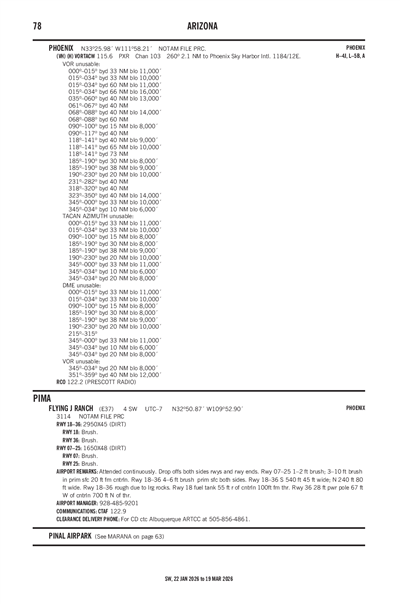

FLYING J RANCH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E37
Local E37
FLYING J RANCH
PublicPUB

4 miles SW of PIMA, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 50' 52"N 109° 52' 54"W
Elevation
3114' MSL
Pattern Alt
4114' MSL
Mag Variation
9°E
Declination
12°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KSAD (12nm) VFR
10:51 PM MST
Clear
10sm
60°F
17°F
29.99"Hg
280° 10kts
AO2 SLP119 T01561083 10272 20156 51011 $
METAR KSAD 040551Z AUTO 28010KT 10SM CLR 16/M08 A2999 RMK AO2 SLP119 T01561083 10272 20156 51011 $
+ Add Your Business

E37 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KDMA (65nm)
Tue, 3/3 8:00 PM MST
Tue, 3/3 8:00 PM MST - Thu, 3/5 2:00 AM MST
VFR
8:00 PM MST - 11:00 PM MST
Sky Clear
6sm
29.97"Hg
270° 9kts
VFR
Becoming 11:00 PM MST - 6:00 AM MST
Sky Clear
6sm
30.00"Hg
140° 8kts
VFR
Becoming 6:00 AM MST - 12:00 PM MST
Few 22,000'
6sm
30.00"Hg
VRB° 6kts
VFR
Becoming 12:00 PM MST - 11:00 PM MST
Scattered 20,000'
6sm
29.91"Hg
290° 12kts
Gusts 18kts
VFR
Becoming 11:00 PM MST - 2:00 AM MST
Few 25,000'
6sm
29.91"Hg
VRB° 6kts
TAF KDMA 040300Z 0403/0509 27009KT 9999 SKC QNH2998INS
   BECMG 0406/0407 14008KT 9999 SKC QNH3001INS
   BECMG 0413/0414 VRB06KT 9999 FEW220 QNH3000INS
   BECMG 0419/0420 29012G18KT 9999 SCT200 QNH2990INS
   BECMG 0506/0507 VRB06KT 9999 FEW250 QNH2992INS TX28/0422Z TN11/0411Z
E37
No NOTAM Available
No
ALL
HOWARD E. JENKINS
10727 WEST COTTONWOOD ROAD
PIMA, AZ 85543
Phone: 928-485-9201
HOWARD E. JENKINS
10727 WEST COTTONWOOD ROAD
PIMA, AZ 85543
Phone: 928-485-9201
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
--
N/A
Yes
No
No
Hanger, Tie-Down
No
None
None
None
None
None

Runway 07/25

1650 ft. x 48 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

2950 ft. x 45 ft.
DIRT
Poor
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3DROP OFFS BOTH SIDES OF RWYS & RWY ENDS.
A110-5FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A30-07/251-2 FT BRUSH; 3-10 FT BRUSH IN PRIM SFC 20 FT FM CNTRLN.
A30-18/364-6 FT BRUSH PRIM SFC BOTH SIDES.
A30A-18FUEL TANK 55 FT R OF CNTRLN 100 FT FM THR.
A30A-3628 FT PWR POLE 67 FT W OF CNTRLN 700 FT N OF THR.
A31-18/36S 540 FT 45 FT WIDE; N 240 FT 80 FT WIDE.
A33-18/36_CONDROUGH DUE TO LRG ROCKS.
A75-HAVBLTY - AMGR.
E111PRVDD USE DURING VFR CONDS ONLY.
FLYING J RANCH (IATA: E37) is a public airport located in PIMA, AZ, US.
