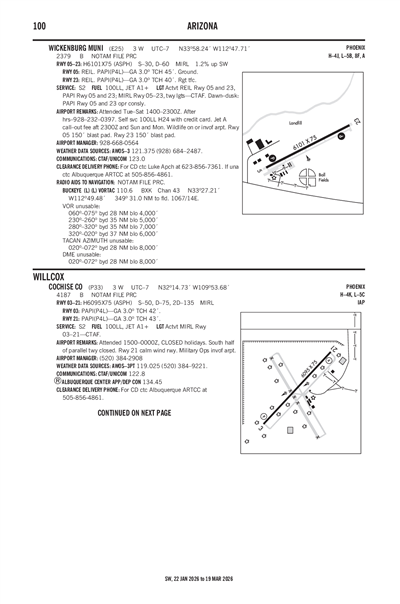

WICKENBURG MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E25
Local E25
WICKENBURG MUNI
PublicPUB

3 miles W of WICKENBURG, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 58' 14"N 112° 47' 42"W
Elevation
2379' MSL
Pattern Alt
3379' MSL
Mag Variation
10°E
Declination
13°E
Fuel
JET A-1+, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KLUF (33nm) VFR
9:55 PM MST
Clear
10sm
74°F
22°F
29.90"Hg
300° 7kts
AO2 SLP115 T02331057 $
METAR KLUF 040455Z AUTO 30007KT 10SM CLR 23/M06 A2990 RMK AO2 SLP115 T02331057 $
+ Add Your Business

E25 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 121.375
(928) 684-2487

Common

CTAF 123.0
ACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23; TWY LGTS - CTAF. DAWN-DUSK: PAPI RWY 05 & 23 OPR CONSLY.
UNICOM 123.0

FAA A/FD Pages

Terminal Area Forecast

KLUF (33nm)
Tue, 3/3 1:00 PM MST
Tue, 3/3 1:00 PM MST - Wed, 3/4 7:00 PM MST
VFR
1:00 PM MST - 8:00 PM MST
Sky Clear
6sm
29.82"Hg
VRB° 6kts
VFR
Becoming 8:00 PM MST - 9:00 AM MST
Scattered 25,000'
6sm
29.91"Hg
VRB° 6kts
VFR
Becoming 9:00 AM MST - 7:00 PM MST
Scattered 25,000'
Few 20,000'
6sm
29.82"Hg
VRB° 6kts
TAF KLUF 032000Z 0320/0502 VRB06KT 9999 SKC QNH2983INS
   BECMG 0403/0404 VRB06KT 9999 SCT250 QNH2990INS
   BECMG 0416/0417 VRB06KT 9999 FEW200 SCT250 QNH2981INS TX30/0323Z TN14/0413Z
E25
No NOTAM Available
No
TUE-SAT 0700-1600
AFT HR - 928-232-0397.
TOWN OF WICKENBURG
155 NORTH TEGNER ST SUITE A
WICKENBURG, AZ 85390
Phone: 928-684-5451
HERSCHEL WORKMAN
155 NORTH TEGNER ST SUITE A
WICKENBURG, AZ 85390
Phone: 928-668-0564
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23; TWY LGTS - CTAF. DAWN-DUSK: PAPI RWY 05 & 23 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 05/23

6101 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 57' 59"N 33° 58' 29"N
Longitude 112° 48' 14"W 112° 47' 11"W
Elevation 2,378' 2,307'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-3WILDLIFE ON OR INVOF ARPT.
A110-5FOR CD CTC LUKE APCH AT 623-856-7361. IF UNA CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-6SELF SVC FUEL H24 WITH CREDIT CARD. JET A CALL OUT FEE AFT 1600 & SUN & MON.
A17-M1AFT HR - 928-232-0397.
A30A-05150 FT BLAST PAD.
A30A-23150 FT BLAST PAD.
A58-051-3 FT BRUSH 50-190 FT FM THR 40 FT L & R OF CNTRLN.
A58-231-3 FT BRUSH 0-200 FT FM THR 50-70 FT R OF CNTRLN.
A81-APTACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23; TWY LGTS - CTAF. DAWN-DUSK: PAPI RWY 05 & 23 OPR CONSLY.
WICKENBURG MUNI (IATA: E25) is a public airport located in WICKENBURG, AZ, US.
