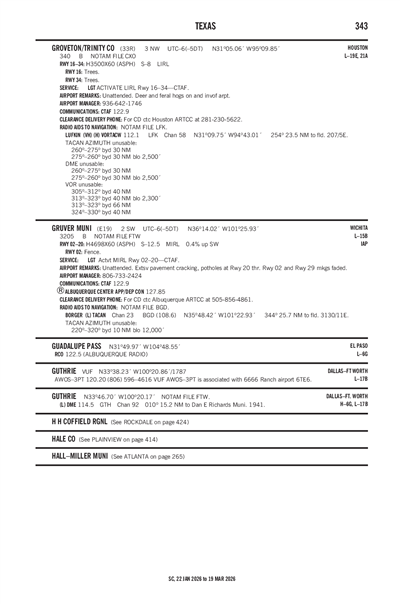

GRUVER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E19
Local E19
GRUVER MUNI
PublicPUB

2 miles SW of GRUVER, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 14' 01"N 101° 25' 56"W
Elevation
3205' MSL
Pattern Alt
4205' MSL
Mag Variation
6°E
Declination
5°E
Fuel
None Listed
FSS
FORT WORTH (FTW)
Sectional
WICHITA
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KE42 (12nm) MVFR
2:55 AM CST
Overcast 1,000'
10sm
41°F
38°F
30.11"Hg
350° 12kts
AO2 T00520032
METAR KE42 040855Z AUTO 35012KT 10SM OVC010 05/03 A3011 RMK AO2 T00520032
+ Add Your Business

E19 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 02/20 - CTAF.

Center

ALBUQUERQUE CENTER 127.85
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 127.85/285.475 (AMARILLO RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGUY (27nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 5:00 AM CST
Overcast 1,200'
6sm
360° 5kts
VFR
5:00 AM CST - 10:00 AM CST
Scattered 500'
6sm
360° 5kts
VFR
10:00 AM CST - 9:00 PM CST
Few 15,000'
6sm
VRB° 5kts
VFR
9:00 PM CST - 12:00 AM CST
Few 25,000'
6sm
160° 8kts
TAF KGUY 040520Z 0406/0506 36005KT P6SM OVC012
   FM041100 36005KT P6SM SCT005
   FM041600 VRB05KT P6SM FEW150
   FM050300 16008KT P6SM FEW250
E19
EffectiveExpiresCategoryNOTAM
Domestic
1/21/26
1417Z
5/21/26
1417Z
!FTW 01/472 E19 OBST TOWER LGT (ASR 1287005) 361538.80N1012328.10W (2.6NM NE E19) 3481.0FT (315.9FT AGL) U/S 2601211417-2605211417
No
UNATNDD
CITY OF GRUVER
PO BOX 947
GRUVER, TX 79040
Phone: 806-733-2424
JOHNNIE WILLIAMS
PO BOX 947
GRUVER, TX 79040
Phone: 806-733-2424
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
ACTVT MIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 02/20

4698 ft. x 60 ft.
ASPH
Poor
NONE
MED

12,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 30°210°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 36° 13' 41"N 36° 14' 21"N
Longitude 101° 26' 10"W 101° 25' 41"W
Elevation 3,205' 3,187'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14CITY MANAGER.
A33-02/20_CONDEXTSV PAVEMENT CRACKING, POTHOLES AT RWY 20 THR.
A42-02_CONDMKGS FADED.
A42-20_CONDMKGS FADED.
A58-024 FT FENCE AT THR, 200 FT LEFT.
A81-APTACTVT MIRL RWY 02/20 - CTAF.
GRUVER MUNI (IATA: E19) is a public airport located in GRUVER, TX, US.
