E13
CRANE COUNTY
Public
PUB
1 miles NW of CRANE, TX
View on
Map
Status
Operational
Coordinates
31° 24' 42"N
102° 21' 38"W
Elevation
2555' MSL
Pattern Alt
3555' MSL
Mag Variation
09E
Fuel
None Listed
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
7/11/24-8/8/24
KODO (31nm)
VFR
5:53 AM CDT
RAW
Clear
Viz
10sm
Temp
75°F
Dew
65°F
Pres
29.91"Hg
Wind
170° 9kts
RMK
AO2 SLP075 T02390183
KODO 191053Z AUTO 17009KT 10SM CLR 24/18 A2991 RMK AO2 SLP075 T02390183
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
E13 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.
FAA A/FD Pages

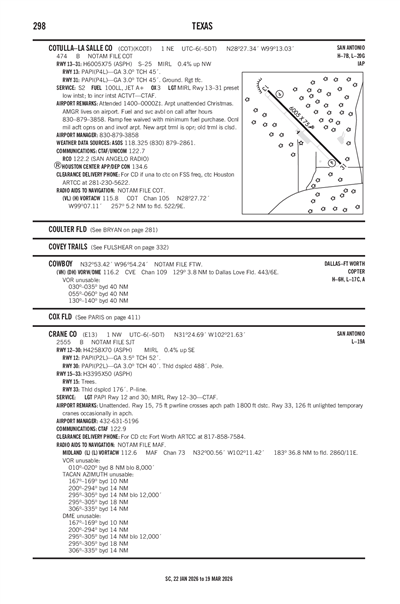

FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KMAF (33nm)
RAW
Reported
Thu, 9/19 12:20 AM CDT
Valid
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 1:00 AM CDT
Few 25,000'
Viz
6sm
Wind
160° 12kts
KMAF 190520Z 1906/2006 16012KT P6SM FEW250
E13
Domestic
8/28/24
1751Z
!SJT 08/386 E13 OBST TOWER (ASR UNKNOWN) 312839.00N1022025.00W (3.5NM NE E13) UNKNOWN (250FT AGL) U/S 2408281751-2411292000
ATC Tower
No
Attendance
UNATNDD
Owner
CRANE COUNTY
COUNTY COURTHOUSE, 201 W 6TH ST.
CRANE, TX 79731
Phone: 432-558-1100
Manager
TODD SEABOURN
COUNTY COURTHOUSE, 201 W 6TH ST.
CRANE, TX 79731
Phone: 432-631-5196
FSS
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
NOTAM
SJT
Light Schedule
--
Lights
PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
3
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 12/30
Dimensions
4258 ft. x 70 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 12
Runway 30
True Heading
124°
304°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
31° 24' 54"N
31° 24' 30"N
Longitude
102° 21' 58"W
102° 21' 17"W
Elevation
2,538'
2,555'
Threshold Crossing Height
52 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3.5°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 15/33
Dimensions
3395 ft. x 50 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
Not Listed
Not Listed
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-4
RWY 15, 75 FT PWRLINE CROSSES APCH PATH 1800 FT DSTC.
A110-5
RWY 33, 126 FT UNLIGHTED TEMPORARY CRANES OCCASIONALLY IN APCH.
CRANE COUNTY (IATA: E13) is a public airport located in CRANE, TX.
