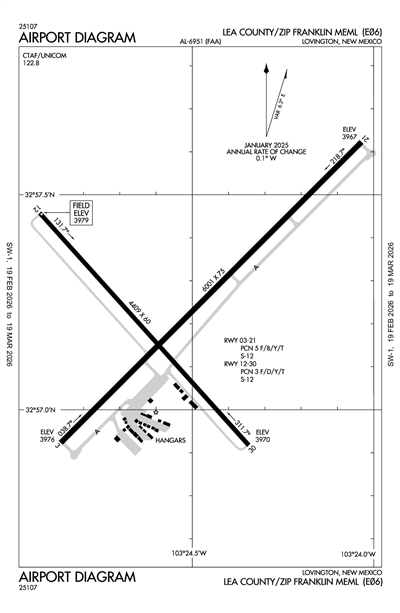

LEA COUNTY/ZIP FRANKLIN MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E06
Local E06
LEA COUNTY/ZIP FRANKLIN MEML
PublicPUB

3 miles W of LOVINGTON, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 57' 14"N 103° 24' 32"W
Elevation
3979' MSL
Pattern Alt
4979' MSL
Mag Variation
6°E
Declination
7°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KHOB (19nm) VFR
7:55 PM MST
Clear
10sm
64°F
9°F
29.95"Hg
270° 9kts
AO2
METAR KHOB 040255Z AUTO 27009KT 10SM CLR 18/M13 A2995 RMK AO2
+ Add Your Business

E06 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
DUSK-DAWN: MIRL RWY 03/21 & 12/30 PRESET LOW INTST; INCR INTST - CTAF. ACTVT PAPI RWY 03, 12, 21 & 30; MIRL RWY 03/21 & 12/30 - CTAF.
UNICOM 122.8

Center

FORT WORTH CENTER 133.1
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.1/298.95 (HOBBS RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHOB (19nm)
Tue, 3/3 7:30 PM MST
Tue, 3/3 8:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
8:00 PM MST - 5:00 AM MST
Few 20,000'
6sm
330° 11kts
VFR
5:00 AM MST - 5:00 PM MST
Few 25,000'
6sm
030° 10kts
TAF KHOB 040230Z 0403/0424 33011KT P6SM FEW200
   FM041200 03010KT P6SM FEW250
E06
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
1702Z
3/24/26
1700Z
!ABQ 02/270 E06 OBST TOWER LGT (ASR 1271239) 324542.40N1033748.00W (16.0NM SW E06) 4265.7FT (258.9FT AGL) U/S 2602241702-2603241700
12/18/25
1917Z
3/18/26
2359Z
!ABQ 12/353 E06 OBST TOWER LGT (ASN 2014-WTW-664-OE) 330044N1035201W (23.5NM W E06) 4727FT (263FT AGL) U/S 2512181917-2603182359
No
UNATNDD
LEA COUNTY
PO BOX 1106
HOBBS, NM 88241
Phone: 575-391-2934
COREY NEEDHAM
PO BOX 1106
HOBBS, NM 88241
Phone: 575-391-2934
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
DUSK-DAWN: MIRL RWY 03/21 & 12/30 PRESET LOW INTST; INCR INTST - CTAF. ACTVT PAPI RWY 03, 12, 21 & 30; MIRL RWY 03/21 & 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 03/21

6001 ft. x 75 ft.
ASPH
Good
NONE
MED
5/F/B/Y/T
12,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 56' 55"N 32° 57' 37"N
Longitude 103° 24' 52"W 103° 24' 02"W
Elevation 3,976' 3,966'
Threshold Crossing Height 43 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

4409 ft. x 60 ft.
ASPH
Good
NONE
MED
3/F/D/Y/T
12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 138°318°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 57' 27"N 32° 56' 55"N
Longitude 103° 24' 55"W 103° 24' 21"W
Elevation 3,979' 3,970'
Threshold Crossing Height 43 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1OIL DRILLING ACT ON & INVOF ARPT.
A110-5EMERG - 575-396-3611.
A110-6GATE CODE - 1228#
A110-7FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A30A-03+3 FT PIPES 700 FT FM THR 60 FT R OF CNTRLN.
A43-03UNUSBL BYD 9 DEGS RIGHT & LEFT OF CNTRLN.
A43-21UNUSBL BYD 8 DEG RIGHT OF CNTRLN.
A43-30UNUSBL BYD 8 DEG RIGHT OF CNTRLN.
A81-APTDUSK-DAWN: MIRL RWY 03/21 & 12/30 PRESET LOW INTST; INCR INTST - CTAF. ACTVT PAPI RWY 03, 12, 21 & 30; MIRL RWY 03/21 & 12/30 - CTAF.
LEA COUNTY/ZIP FRANKLIN MEML (IATA: E06) is a public airport located in LOVINGTON, NM, US.
