E05
Local E05
HATCH MUNI
PublicPUB

2 miles W of HATCH, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 39' 37"N 107° 11' 43"W
Elevation
4129' MSL
Pattern Alt
5129' MSL
Mag Variation
8°E
Declination
11°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
K0A0 (23nm) VFR
8:55 PM MST
Clear
10sm
57°F
14°F
30.04"Hg
Calm
AO2
METAR K0A0 040355Z AUTO 00000KT 10SM CLR 14/M10 A3004 RMK AO2
+ Add Your Business

E05 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT NSTD ODALS RWY 29 - CTAF. NSTD ODALS RWY 11; APAP RWY 11 & 29 OTS INDEFLY.

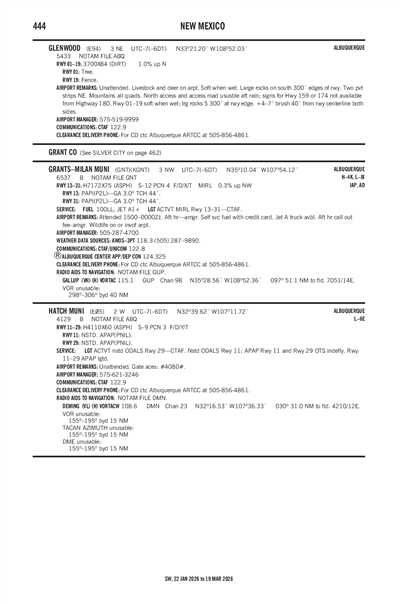

FAA A/FD Pages

Terminal Area Forecast

KLRU (27nm)
Tue, 3/3 4:31 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 8:00 PM MST
Few 25,000'
6sm
260° 15kts
Gusts 23kts
VFR
8:00 PM MST - 5:00 PM MST
Few 25,000'
6sm
290° 7kts
TAF KLRU 032331Z 0400/0424 26015G23KT P6SM FEW250
   FM040300 29007KT P6SM FEW250
E05
EffectiveExpiresCategoryNOTAM
Domestic
2/2/26
1400Z
5/26/26
2359Z
!ABQ 01/268 E05 AD AP CLSD 2602021400-2605262359
1/31/26
1246Z
3/17/26
1245Z
!ABQ 01/333 E05 OBST TOWER LGT (ASR 1007824) 324136.00N1070409.00W (6.7NM ENE E05) 5499.7FT (804.8FT AGL) U/S 2601311246-2603171245
No
UNATNDD
VILLAGE OF HATCH
C/O ELIZABETH PORRAS PO BOX 220
HATCH, NM 87937
Phone: 575-621-3246
PETER J ATENCIO
PO BOX 220
HATCH, NM 87937
Phone: 575-621-3246
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT NSTD ODALS RWY 29 - CTAF. NSTD ODALS RWY 11; APAP RWY 11 & 29 OTS INDEFLY.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 11/29

4110 ft. x 60 ft.
ASPH
Good
NONE

3/F/D/Y/T
9,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 112°292°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 32° 39' 45"N 32° 39' 29"N
Longitude 107° 12' 06"W 107° 11' 21"W
Elevation 4,129' 4,125'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator PNIL PNIL
Approach Lights NSTD NSTD
Centerline Lights
Runway End Identifier Lights
A110-2GATE ACES: #4080#.
A110-4FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A16EMERG CELL 575-649-6211.
A43-11APAP LGTD.
A43-29APAP LGTD.
A49-11NSTD ODALS.
A49-29NSTD ODALS.
A58-114-6 FT BRUSH, 0-200 FT DIST, 80 FT R.
A81-APTACTVT NSTD ODALS RWY 29 - CTAF. NSTD ODALS RWY 11; APAP RWY 11 & 29 OTS INDEFLY.
HATCH MUNI (IATA: E05) is a public airport located in HATCH, NM, US.
