iFlightPlanner



...

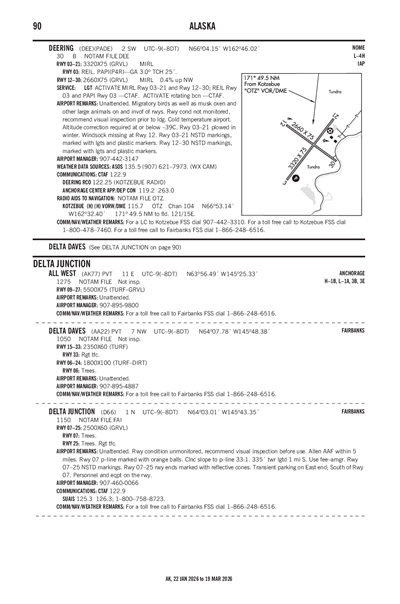

DELTA JUNCTION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D66
Local D66
DELTA JUNCTION
PublicPUB

1 miles N of DELTA JUNCTION, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
64° 03' 00"N 145° 43' 21"W
Elevation
1150' MSL
Pattern Alt
2150' MSL
Mag Variation
17°E
Declination
28°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PABI (3nm) VFR
4:53 PM AKST
Clear
10sm
-4°F
-17°F
29.71"Hg
110° 15kts
AO2 SLP120 T12001272 $
METAR PABI 040153Z 11015KT 10SM CLR M20/M27 A2971 RMK AO2 SLP120 T12001272 $
+ Add Your Business

D66 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PABI (3nm)
Tue, 3/3 4:00 PM AKST
Tue, 3/3 4:00 PM AKST - Wed, 3/4 7:00 PM AKST
VFR
Temporary 4:00 PM AKST - 3:00 AM AKST
No Clouds
N/A
110° 20kts
Gusts 35kts
VFR
4:00 PM AKST - 3:00 AM AKST
Sky Clear
6sm
29.50"Hg
110° 20kts
Moderate, Clear Air, Frequent: 700 - 9,000'
VFR
Becoming 3:00 AM AKST - 11:00 AM AKST
Sky Clear
6sm
29.41"Hg
090° 6kts
MVFR
Becoming 11:00 AM AKST - 3:00 PM AKST
Light Snow
Broken 4,000'
Few 2,000'
3.73sm
29.41"Hg
100° 6kts
VFR
Becoming 3:00 PM AKST - 7:00 PM AKST
Scattered 4,000'
6sm
29.47"Hg
VRB° 6kts
TAF AMD PABI 040100Z 0401/0504 11020KT 9999 SKC 530009 QNH2950INS
   TEMPO 0401/0412 11020G35KT
   BECMG 0412/0413 09006KT 9999 SKC QNH2942INS
   BECMG 0420/0421 10006KT 6000 -SN FEW020 BKN040 620406 QNH2942INS
   BECMG 0500/0501 VRB06KT 9999 NSW SCT040 QNH2946INS TXM19/0401Z TNM37/0417Z LAST NO AMDS AFT 0405 NEXT 0414
D66
EffectiveExpiresCategoryNOTAM
Domestic
1/6/26
0049Z
4/6/26
0049Z
!FAI 01/278 D66 TWY ALL FICON 6IN DRY SN OVER COMPACTED SN 8IN DRIFTS OBS AT 2601060049. COND NOT MNT 2601060049-2604060049. 2601060049-2604060049EST
1/6/26
0036Z
4/6/26
0036Z
Runway!FAI 01/275 D66 RWY 25 FICON 100 PCT 6IN DRY SN OVER COMPACTED SN 8IN DRIFTS OBS AT 2601060036. COND NOT MNT 2601060036-2604060036. 2601060036-2604060036EST
1/6/26
0036Z
4/6/26
0036Z
Runway!FAI 01/274 D66 RWY 07 FICON 100 PCT 6IN DRY SN OVER COMPACTED SN 8IN DRIFTS OBS AT 2601060036. COND NOT MNT 2601060036-2604060036. 2601060036-2604060036EST
No
UNATNDD
CITY OF DELTA JUNCTION
PO BOX 229
DELTA JUNCTION, AK 99737
Phone: 907-895-4656
ALAN LEVINSON
CITY OF DELTA JUNCTION PO BOX 229
DELTA JUNCTION, AK 99737
Phone: 907-460-0066
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
Pilot Instruction

Runway 07/25

2500 ft. x 60 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 111°291°
Traffic Pattern Right
Markings NSTD NSTD
Markings Condition
Latitude 64° 03' 05"N 64° 02' 56"N
Longitude 145° 43' 47"W 145° 42' 55"W
Elevation 1,150' 1,150'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1335 FT TWR LGTD 1 MI S.
A110-2RWY COND UNMNT; RCMND VISUAL INSP BFR USE.
A110-3SUAIS - 125.3/126.3; 1-800-758-8723.
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-5ALLEN AAF WI 5 MI.
A110-6USE FEE - AMGR.
A110-8TSNT PRKG E END; S OF RWY 07.
A110-9PAEW ON RWY.
A42-07_MARKREFLECTIVE CONES.
A42-25_MARKREFLECTIVE CONES.
A52-07PWR LINE MKD WITH ORANGE BALLS W. CLNC SLOPE 33:1 TO PWR LINE.
A52-25WINDSOCK
E111AIRSPACE DETERMINATION PENDING.
DELTA JUNCTION (IATA: D66) is a public airport located in DELTA JUNCTION, AK, US.
