ARCADE TRI-COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D23
Local D23
ARCADE TRI-COUNTY
PublicPUB

2 miles N of ARCADE, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 34' 00"N 78° 25' 34"W
Elevation
1745' MSL
Pattern Alt
2745' MSL
Mag Variation
11°W
Declination
10°W
Fuel
None Listed
FSS
BUFFALO (BUF)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KOLE (20nm) LIFR
5:55 AM EST
Fog
Overcast 200'
0.25sm
32°F
32°F
30.20"Hg
Calm
AO2
METAR KOLE 041055Z AUTO 00000KT 1/4SM FG OVC002 00/00 A3020 RMK AO2
+ Add Your Business

D23 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
UNICOM 123.0

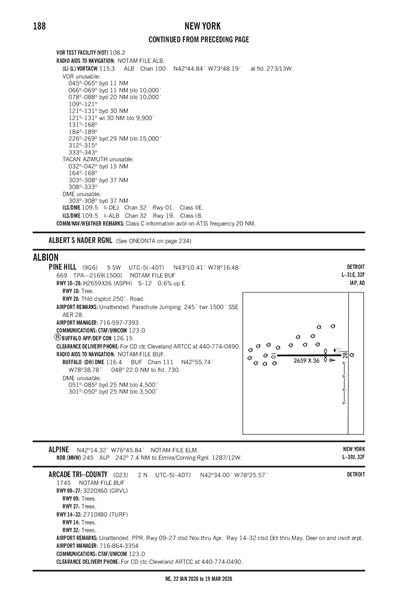

FAA A/FD Pages

Terminal Area Forecast

KBUF (26nm)
Wed, 3/4 2:52 AM EST
Wed, 3/4 3:00 AM EST - Thu, 3/5 1:00 AM EST
IFR
Temporary 3:00 AM EST - 7:00 AM EST
Mist
No Clouds
1sm
Calm
LIFR
3:00 AM EST - 9:00 AM EST
Fog
Overcast 200'
0.25sm
240° 3kts
IFR
9:00 AM EST - 11:00 AM EST
Mist
Broken 500'
4sm
VRB° 3kts
VFR
11:00 AM EST - 1:00 PM EST
Scattered 1,200'
6sm
VRB° 3kts
VFR
1:00 PM EST - 9:00 PM EST
Few 25,000'
6sm
VRB° 3kts
VFR
9:00 PM EST - 11:00 PM EST
Scattered 6,000'
6sm
VRB° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Broken 2,000'
6sm
VRB° 3kts
TAF KBUF 040752Z 0408/0506 24003KT 1/4SM FG OVC002
   TEMPO 0408/0412 1SM BR
   FM041400 VRB03KT 4SM BR BKN005
   FM041600 VRB03KT P6SM SCT012
   FM041800 VRB03KT P6SM FEW250
   FM050200 VRB03KT P6SM SCT060
   FM050400 VRB03KT P6SM BKN020
D23
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
0002Z
4/20/26
2359Z
!BUF 02/390 D23 OBST TOWER LGT (ASR 1013220) 424307.00N0783346.00W (10.9NM NNW D23) 2313.6FT (960.6FT AGL) U/S 2602200002-2604202359
2/15/26
1941Z
6/15/26
1941Z
!BUF 02/331 D23 OBST TOWER LGT (ASR 1004290) 423502.40N0782854.30W (2.6NM WNW D23) 1753.3FT (284.1FT AGL) U/S 2602151941-2606151941
2/12/26
1653Z
6/12/26
1653Z
!BUF 02/252 D23 OBST TOWER LGT (ASR 1279451) 422829.30N0782129.10W (6.3NM SSE D23) 2258.9FT (303.8FT AGL) U/S 2602121653-2606121653
No
UNATNDD
ARMSTRONG ENTERPRISES, LLC
P.O. BOX 144
ARCADE, NY 14009
Phone: 716-864-0062
TERRY ARMSTRONG
6715 NORTHWOODS RD P. O. BOX 144
ARCADE, NY 14009
Phone: 716-864-3354
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
BUF
--
--
N/A
Yes
No
No
Hanger, Tie-Down
No
None
None
None
None
None

Runway 09/27

3220 ft. x 60 ft.
GRAVEL
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

2710 ft. x 80 ft.
TURF
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3RWY 9/27 CLSD NOV THRU APR. RWY 14/32 CLSD OCT THRU MAY.
A110-4FOR CD CTC CLEVELAND ARTCC AT 440-774-0490.
A110-5DEER ON AND INVOF ARPT.
A110-6PPR.
A52-09NMRS TREES +30 TO 60 FT, 30 FT FM THR, ACRS THR AND ALONG SIDE RWY 09.
A52-14NMRS TREES +15 TO +70 FT BOTH SIDES OF RWY 14.
A52-32NMRS TREES +15 TO +75 FT BOTH SIDES OF RWY 32.
A57-0960 FT TREES ACRS RWY END.
A57-1475 FT TREES, BOTH SIDES OF RWY.
E111PRVDD ALL OPNS DAYLGT VFR UNLESS LIGHTING INSTALLED, OPNS CONDUCTED TO MINIMIZE NOISE, ASSURE COORDINATION WITH PVT-USE ARPT TO ASSURE EACH IS FAMILIAR WITH TFC PATTERSN & VISUAL REPORTING POINTS AT EACH FACILITY, & TREES AT APCH RY 07 WOULD REQUIRE DSPLCD THLD FOR SAFE PUBLIC-USE OPNS.
ARCADE TRI-COUNTY (IATA: D23) is a public airport located in ARCADE, NY, US.
