D14
FERTILE MUNI
Public
PUB
1 miles NW of FERTILE, MN
View on
Map
Status
Operational
Coordinates
47° 33' 07"N
96° 17' 32"W
Elevation
1137' MSL
Pattern Alt
2137' MSL
Mag Variation
05E
Fuel
100LL
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
4/17/25-5/15/25
KFSE (21nm)
VFR
5:55 AM CDT
RAW
No Clouds
Viz
10sm
Temp
46°F
Dew
46°F
Pres
30.13"Hg
Wind
320° 7kts
RMK
AO2
KFSE 241055Z AUTO 32007KT 10SM 08/08 A3013 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
D14 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.

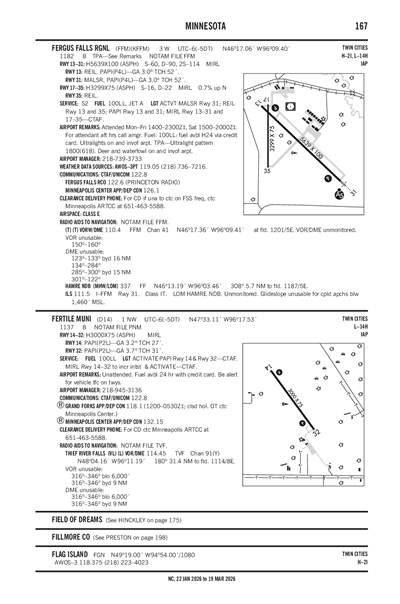

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 14
RNAV (GPS) RWY 32
Terminal Area Forecast
KTVF (31nm)
RAW
Reported
Sun, 8/24 12:20 AM CDT
Valid
Sun, 8/24 1:00 AM CDT - Mon, 8/25 1:00 AM CDT
VFR
1:00 AM CDT - 9:00 AM CDT
Broken 7,000'
Scattered 1,500'
Viz
6sm
Wind
320° 9kts
MVFR
Temporary
3:00 AM CDT - 7:00 AM CDT
Broken 1,500'
Viz
N/A
Wind
Calm
VFR
9:00 AM CDT - 3:00 PM CDT
Broken 8,000'
Viz
6sm
Wind
340° 12kts
VFR
3:00 PM CDT - 8:00 PM CDT
Scattered 15,000'
Viz
6sm
Wind
340° 16kts
Gusts 24kts
VFR
8:00 PM CDT - 10:00 PM CDT
Few 25,000'
Viz
6sm
Wind
330° 9kts
VFR
10:00 PM CDT - 1:00 AM CDT
Few 25,000'
Viz
6sm
Wind
VRB° 5kts
KTVF 240520Z 2406/2506 32009KT P6SM SCT015 BKN070
TEMPO 2408/2412 BKN015
FM241400 34012KT P6SM BKN080
FM242000 34016G24KT P6SM SCT150
FM250100 33009KT P6SM FEW250
FM250300 VRB05KT P6SM FEW250
D14
Domestic
3/31/25
1205Z
!PNM 03/205 D14 RWY 32 PAPI U/S 2503311205-2509302111EST
3/31/25
1204Z
!PNM 03/204 D14 RWY 14 PAPI U/S 2503311204-2509302111EST
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF FERTILE
PO BOX 628
FERTILE, MN 56540
Phone: 218-945-3136
Manager
LISA LIDEN
PO BOX 628
FERTILE, MN 56540
Phone: 218-945-3136
FSS
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
NOTAM
PNM
Light Schedule
--
Lights
ACTVT PAPI RWY 14 & 32 - CTAF. MIRL RWY 14/32 TO INCR INTST & ACTVT - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 14/32
Dimensions
3000 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 14
Runway 32
True Heading
144°
324°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
47° 33' 19"N
47° 32' 55"N
Longitude
96° 17' 45"W
96° 17' 19"W
Elevation
1,130'
1,137'
Threshold Crossing Height
27 ft. AGL
31 ft. AGL
Visual Glide Path Angle
3.2°
3.7°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
BE ALERT FOR VEHICLE TRAFFIC ON TAXIWAYS.
A110-2
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
FERTILE MUNI (IATA: D14) is a public airport located in FERTILE, MN.
