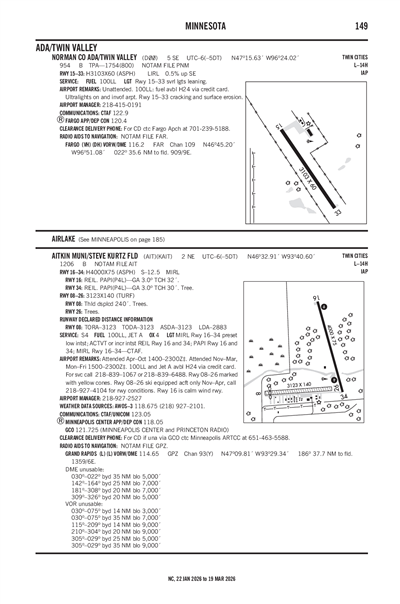

NORMAN COUNTY ADA/TWIN VALLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D00
Local D00
NORMAN COUNTY ADA/TWIN VALLEY
PublicPUB

5 miles SE of ADA/TWIN VALLEY, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 15' 38"N 96° 24' 01"W
Elevation
954' MSL
Pattern Alt
1754' MSL
Mag Variation
2°E
Declination
5°E
Fuel
100LL
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
K3N8 (19nm) LIFR
9:55 PM CST
Freezing Fog
Overcast 200'
0.25sm
26°F
26°F
30.12"Hg
200° 5kts
AO2 T10311031
METAR K3N8 040355Z AUTO 20005KT 1/4SM FZFG OVC002 M03/M03 A3012 RMK AO2 T10311031
+ Add Your Business

D00 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Approach

FARGO APPROACH 120.4

Departure

FARGO DEPARTURE 120.4

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFAR (26nm)
Tue, 3/3 9:03 PM CST
Tue, 3/3 9:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
9:00 PM CST - 12:00 AM CST
Freezing Fog
Obscured
0.25sm
VRB° 2kts
LIFR
12:00 AM CST - 8:00 AM CST
Freezing Fog
Obscured
0.5sm
180° 6kts
IFR
8:00 AM CST - 12:00 PM CST
Mist
Broken 700'
5sm
200° 10kts
Gusts 15kts
VFR
12:00 PM CST - 6:00 PM CST
Scattered 4,500'
6sm
200° 13kts
TAF KFAR 040303Z 0403/0424 VRB02KT 1/4SM FZFG VV003
   FM040600 18006KT 1/2SM FZFG VV002
   FM041400 20010G15KT 5SM BR BKN007
   FM041800 20013KT P6SM SCT045
D00
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
2248Z
2/28/26
2359Z
!PNM 02/097 D00 AD AP WINDSOCK U/S 2602182248-2602282359
12/1/25
1555Z
3/1/26
2359Z
!PNM 12/004 D00 OBST TOWER LGT (ASR 1243867) 471841.00N0963114.00W (5.8NM WNW D00) 1399.0FT (500.0FT AGL) U/S 2512011555-2603012359
No
UNATNDD
CNTY NORMAN & ADA-TWIN VALLEY
PO BOX 32
ADA, MN 56510
Phone: 218-784-5520
BRUCE VISSER
PO BOX 9
ADA, MN 56510
Phone: 218-415-0191
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
PNM
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 15/33

3103 ft. x 60 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 15 Runway 33
True Heading 154°334°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 15' 51"N 47° 15' 24"N
Longitude 96° 24' 11"W 96° 23' 51"W
Elevation 938' 954'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRALIGHTS ON & INVOF ARPT.
A110-2FOR CD CTC FARGO APCH AT 701-239-5188.
A16CELL 218-415-0191.
A33-15/33_CONDCRACKING AND SURFACE EROSION.
A40-15/33SVRL LGTS LEANING.
A70-100LLFUEL AVBL H24 VIA CREDIT CARD.
E111NON COMPLIANCE FAR 157.
NORMAN COUNTY ADA/TWIN VALLEY (IATA: D00) is a public airport located in ADA/TWIN VALLEY, MN, US.
