iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

C83
BYRON
PublicPUB

2 miles S of BYRON, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 49' 42"N 121° 37' 33"W
78' MSL
1078' MSL
15E
100LL
OAKLAND (OAK)
SAN FRANCISCO
OAKLAND (ZOA)
7/11/24-8/8/24
KLVK (12nm) IFR
3:53 AM PDT
Mist
Broken 500'
6sm
57°F
56°F
29.85"Hg
Calm
AO2 SLP104 T01390133
KLVK 191053Z AUTO 00000KT 6SM BR BKN005 14/13 A2985 RMK AO2 SLP104 T01390133
Add Your Business

C83 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3

AWOS-3
925-634-0906
 123.775

FAA A/FD Pages

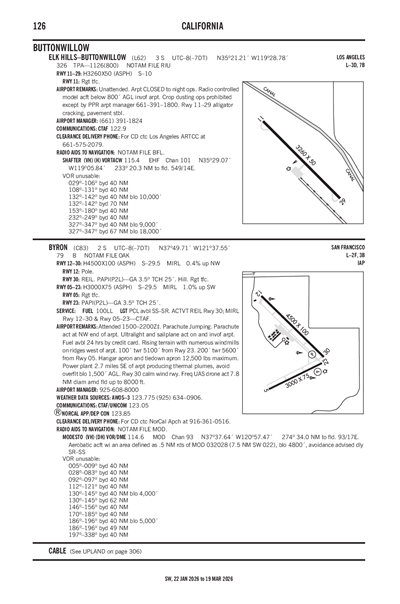

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLVK (12nm)
Wed, 9/18 10:26 PM PDT
Wed, 9/18 11:00 PM PDT - Thu, 9/19 11:00 PM PDT
VFR
11:00 PM PDT - 7:00 AM PDT
Broken 25,000'
Scattered 3,000'
6sm
270° 4kts
VFR
7:00 AM PDT - 2:00 PM PDT
Mist
Broken 25,000'
Scattered 1,200'
6sm
VRB° 3kts
VFR
2:00 PM PDT - 8:00 PM PDT
Scattered 25,000'
6sm
290° 12kts
VFR
8:00 PM PDT - 11:00 PM PDT
Few 25,000'
6sm
290° 7kts
KLVK 190526Z 1906/2006 27004KT P6SM SCT030 BKN250
   FM191400 VRB03KT 6SM BR SCT012 BKN250
   FM192100 29012KT P6SM SCT250
   FM200300 29007KT P6SM FEW250
C83
Domestic
9/12/240936Z !OAK 09/144 C83 OBST TOWER LGT (ASR 1273582) 375326.60N1213048.40W (6.4NM NE C83) 100.7FT (103.7FT AGL) U/S 2409120936-2409261300
9/9/241300Z !OAK 09/077 C83 AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 374926N1213741W (.3NM S C83) SFC-400FT AGL DLY 1300-0100 2409091300-2410010100
9/6/242020Z !OAK 09/069 C83 AIRSPACE NUMEROUS LOW FLYING HEL OPS WI AN AREA DEFINED AS 1NM RADIUS OF MOD281036 (2.5NM NNE C83) SFC-1000FT AGL 2409062020-2501312359EST
9/4/242200Z !OAK 09/028 C83 OBST TOWER LGT (ASR UNKNOWN) 374715.72N1214205.40W (4.5NM SW C83) 1073FT (262FT AGL) U/S 2409042200-2411042359
5/21/241600Z !OAK 05/251 C83 AIRSPACE PJE WI AN AREA DEFINED AS 3NM RADIUS OF 374948N1213748W (.8NM SE C83) SFC-15000FT DLY 1600-SS 2405211600-2411030106
3/11/241400Z !OAK 03/149 C83 AIRSPACE SEE ZOA 03/148 UAS 2403111400-2411030500
1/26/241700Z !OAK 01/306 C83 AIRSPACE PJE WI AN AREA DEFINED AS 2NM RADIUS OF 374948N1213748W (.7NM SE C83) SFC-13500FT SAT SUN 1700-0200 2401261700-2501010200
1/4/240000Z !OAK 01/025 C83 AIRSPACE SEE ZOA 01/024 UAS DLY 0000-2359
2401040000-2501022359
No
0700-1400
CONTRA COSTA COUNTY
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94520
Phone: 925-608-8000
GREG BAER
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94250
Phone: 925-608-8000
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
OAK
--
ACTVT REIL RWY 30; MIRL RWY 12/30 & 05/23 - CTAF.
N/A
N/A
Yes
No
Tie-Down
No
66
4
0
1
0
1
None
None
None
None
Glider Service
Parachute Jump Activity
Glider Towing

Runway 05/23

3000 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 63°243°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 49' 20"N 37° 49' 34"N
Longitude 121° 37' 48"W 121° 37' 15"W
Elevation 78' 49'
Threshold Crossing Height -- 25 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

4500 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 50' 08"N 37° 49' 37"N
Longitude 121° 37' 54"W 121° 37' 14"W
Elevation 64' 48'
Threshold Crossing Height -- 25 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1ULTRALIGHT & SAILPLANE ACTIVITY ON & INVOF ARPT.
A110-2RISING TERRAIN WITH NUMEROUS WINDMILLS ON RIDGES WEST OF ARPT.
A110-3HANGAR APRON & TIEDOWN APRON 12500 LBS MAX.
A110-4RY 30 CALM WIND RY.
A110-5200' TOWER 5600 FEET FROM RUNWAY 05.
A110-6100' TOWER 5100 FEET FROM RUNWAY 23.
A110-7POWER PLANT 2.7 MILES SE OF AIRPORT PRODUCING THERMAL PLUMES; AVOID OVERLFIGHT BELOW 1,500 FT AGL.
A110-8FOR CD CTC NORCAL APCH AT 916-361-0516.
A110-9FREQ UAS DRONE ACT 7.8 NM DIAM ARND FLD UP TO 8000 FT.
BYRON (IATA: C83) is a public airport located in BYRON, CA.
