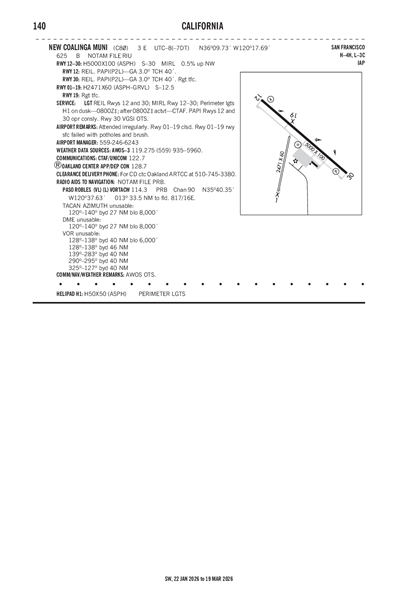

NEW COALINGA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C80
Local C80
NEW COALINGA MUNI
PublicPUB

3 miles E of COALINGA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 09' 44"N 120° 17' 41"W
Elevation
625' MSL
Pattern Alt
1625' MSL
Mag Variation
12°E
Declination
15°E
Fuel
None Listed
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KNLC (19nm) VFR
3:56 PM PST
Few 3,600'
10sm
69°F
48°F
30.05"Hg
330° 14kts
AO2 SLP175 RH/45 T02060089 10217 20167 56017
METAR KNLC 042356Z 33014KT 10SM FEW036 21/09 A3005 RMK AO2 SLP175 RH/45 T02060089 10217 20167 56017
+ Add Your Business

C80 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.275
(559) 935-5960

Common

CTAF 122.7
REIL RWYS 12 & 30; MIRL RWY 12/30; PERIMETER LGTS H1 ON DUSK-0000; AFTER 0000 ACTVT - CTAF. PAPI RWYS 12 & 30 OPR CONSLY.
UNICOM 122.7

Center

OAKLAND CENTER 128.7
LOW, APCH/DEP CTLSVC PRVDD BY OAKLAND ARTCC (ZOA) ON 128.7/307.0 (PRIEST RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KNLC (19nm)
Wed, 3/4 2:54 PM PST
Wed, 3/4 3:00 PM PST - Thu, 3/5 3:00 PM PST
VFR
3:00 PM PST - 3:00 PM PST
Scattered 3,800'
6sm
30.00"Hg
340° 15kts
Gusts 20kts
LIFR
Temporary 9:00 PM PST - 3:00 AM PST
No Clouds
0.04sm
340° 18kts
Gusts 26kts
TAF KNLC 0423/0523 34015G20KT 9999 SCT038 QNH3001INS
   TEMPO 0505/0511 34018G26KT TX21/0423Z TN10/0514Z FS30067
C80
EffectiveExpiresCategoryNOTAM
FDC
7/29/25
1716Z
!FDC 5/6681 C80 IAP NEW COALINGA MUNI, COALINGA, CA.
RNAV (GPS) RWY 30, ORIG...
TERMINAL ROUTE FROM AVE VOR/DME TO OXOFE NA.
2507291716-2707291716EST
No
IREG
CITY OF COALINGA
CITY HALL 155 W DURIAN
COALINGA, CA 93210
Phone: 559-935-1533
MERCEDES GARCIA
THE CITY OF COALINGA 155 W DURIAN
COALINGA, CA 93210
Phone: 559-246-6243
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
REIL RWYS 12 & 30; MIRL RWY 12/30; PERIMETER LGTS H1 ON DUSK-0000; AFTER 0000 ACTVT - CTAF. PAPI RWYS 12 & 30 OPR CONSLY.
DUSK-DAWN.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 01/19

2471 ft. x 60 ft.
ASPH GRVL
Failed
NONE


12,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 12°192°
Traffic Pattern Right
Markings BSC BSC
Markings Condition POOR POOR
Latitude 36° 09' 24"N 36° 09' 48"N
Longitude 120° 17' 52"W 120° 17' 46"W
Elevation 607' 608'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5000 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 131°311°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 36° 10' 04"N 36° 09' 31"N
Longitude 120° 18' 01"W 120° 17' 15"W
Elevation 625' 602'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.
ASPH
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 36° 09' 44"N N/A
Longitude 120° 17' 41"W N/A
Elevation 606' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A110-3AWOS OTS.
A14MGARCIA@COALINGA.COM
A30-01/19RWY CLSD.
A33-01/19_CONDRWY SFC FAILED WITH POTHOLES AND BRUSH.
A43-30RWY 30 VGSI OTS.
A81-APTREIL RWYS 12 & 30; MIRL RWY 12/30; PERIMETER LGTS H1 ON DUSK-0000; AFTER 0000 ACTVT - CTAF. PAPI RWYS 12 & 30 OPR CONSLY.
A81-BCNDUSK-DAWN.
NEW COALINGA MUNI (IATA: C80) is a public airport located in COALINGA, CA, US.
