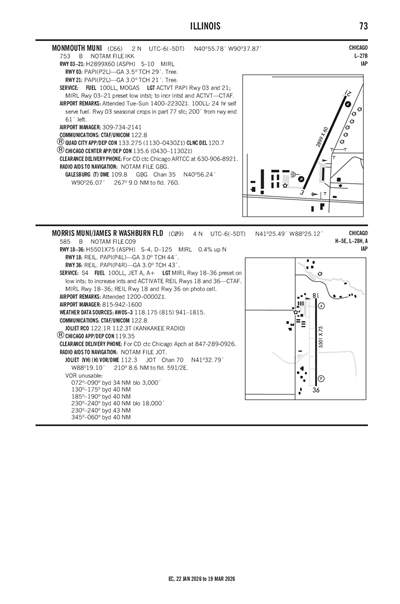

MONMOUTH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C66
Local C66
MONMOUTH MUNI
PublicPUB

2 miles N of MONMOUTH, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 55' 47"N 90° 37' 52"W
Elevation
753' MSL
Pattern Alt
1753' MSL
Mag Variation
2°W
Declination
3°E
Fuel
100LL, MOGAS
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KGBG (9nm) VFR
9:55 PM CST
Overcast 4,500'
10sm
42°F
40°F
30.17"Hg
080° 5kts
AO2 T00560047
METAR KGBG 040355Z AUTO 08005KT 10SM OVC045 06/05 A3017 RMK AO2 T00560047
+ Add Your Business

C66 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 03 & 21; MIRL RWY 03/21 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.
UNICOM 122.8

Clearance

Clearance Delivery 120.7

Approach

QUAD CITY APPROACH 133.275

Departure

QUAD CITY DEPARTURE 133.275

Center

QUAD CITY CENTER 135.6
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 135.6/370.95 (BURLINGTON RCAG) WHEN MOLINE APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBRL (24nm)
Tue, 3/3 7:40 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
8:00 PM CST - 3:00 AM CST
Broken 2,000'
6sm
050° 5kts
MVFR
3:00 AM CST - 6:00 PM CST
Mist
Overcast 1,200'
4sm
060° 6kts
TAF KBRL 040140Z 0402/0424 05005KT P6SM BKN020
   FM040900 06006KT 4SM BR OVC012
C66
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
0513Z
3/25/26
2300Z
!IKK 02/178 C66 OBST TOWER LGT (ASN 2025-AGL-7556-OE) 410405N0903414W (8.8NM NNE C66) 959FT (265FT AGL) U/S 2602230513-2603252300
2/16/26
1323Z
4/16/26
1700Z
!IKK 02/119 C66 OBST TOWER LGT (ASR 1245426) 405113.20N0904526.50W (7.3NM SW C66) 985.9FT (259.8FT AGL) U/S 2602161323-2604161700
2/10/26
1527Z
5/31/26
2359Z
Runway!IKK 02/065 C66 RWY 03 PAPI U/S 2602101527-2605312359
2/6/26
1802Z
4/6/26
2359Z
!IKK 02/034 C66 OBST TOWER LGT (ASR 1254239) 410109.40N0905057.20W (11.2NM WNW C66) 922.6FT (309.7FT AGL) U/S 2602061802-2604062359
FDC
7/31/24
1438Z
!FDC 4/0721 C66 ODP MONMOUTH MUNI, MONMOUTH, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2B...
TAKEOFF OBSTACLE NOTES: RWY 21, LIGHT POLE, 184FT FROM DER, 488 RIGHT OF CENTERLINE, 25AGL/779MSL (2020-AGL-7843-NRA), FUEL FARM UTILITIES, BEGINNING 156FT FROM DER, 477FT RIGHT OF CENTERLINE, 08AGL/762MSL, (2020-AGL-7839 THRU 7842-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2407311438-2607311438EST
No
TUE-SUN 0800-1630
CITY OF MONMOUTH
100 E. BROADWAY
MONMOUTH, IL 61462
Phone: 309-734-2141
ANNETTE ST. LEDGER
100 E. BROADWAY
MONMOUTH, IL 61462
Phone: 309-734-2141
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
IKK
--
ACTVT PAPI RWY 03 & 21; MIRL RWY 03/21 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 03/21

2899 ft. x 60 ft.
ASPH
Good
NONE
MED

10,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 23°203°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD FAIR
Latitude 40° 55' 34"N 40° 56' 00"N
Longitude 90° 37' 59"W 90° 37' 44"W
Elevation 753' 748'
Threshold Crossing Height 29 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A15EMAIL ADDRESS: ANNETTE.STLEDGER@CITYOFMONMOUTHIL.GOV
A30A-03SEASONAL CROPS IN PART 77 SFC; 200 FT FROM RWY END 61 FT L.
A70-100LL24 HR SELF SERVE FUEL
A81-APTACTVT PAPI RWY 03 & 21; MIRL RWY 03/21 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.
MONMOUTH MUNI (IATA: C66) is a public airport located in MONMOUTH, IL, US.
