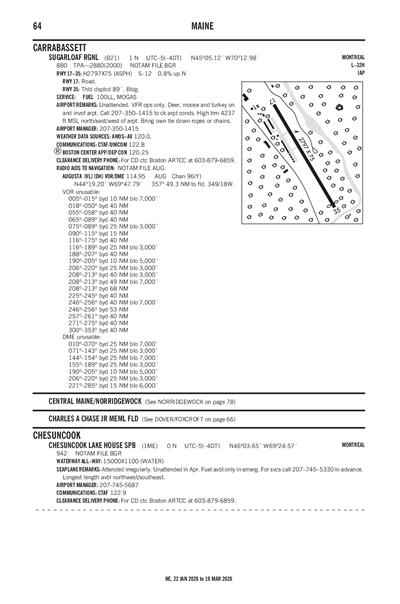

SUGARLOAF RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

B21
Local B21
SUGARLOAF RGNL
PublicPUB

1 miles N of CARRABASSETT, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 05' 07"N 70° 12' 59"W
Elevation
880' MSL
Pattern Alt
2880' MSL
Mag Variation
15°W
Declination
17°W
Fuel
100LL, MOGAS
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
K8B0 (20nm) LIFR
11:55 PM EST
Light Snow
Overcast 300'
1.75sm
25°F
25°F
30.06"Hg
Calm
AO2 P0004
METAR K8B0 040455Z AUTO 00000KT 1 3/4SM -SN OVC003 M04/M04 A3006 RMK AO2 P0004
+ Add Your Business

B21 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-AV 120.0

Common

CTAF 122.8
UNICOM 122.8

Center

BOSTON CENTER 120.25
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 120.25/346.4 (BANGOR RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAUG (50nm)
Tue, 3/3 6:57 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 10:00 PM EST
Light Snow and Mist
Overcast 2,900'
Broken 800'
1.5sm
190° 6kts
IFR
10:00 PM EST - 5:00 AM EST
Light Snow and Mist
Overcast 600'
1sm
180° 5kts
LIFR
5:00 AM EST - 8:00 AM EST
Mist
Overcast 300'
2sm
270° 3kts
VFR
8:00 AM EST - 7:00 PM EST
Scattered 25,000'
6sm
270° 6kts
TAF KAUG 032357Z 0400/0424 19006KT 1 1/2SM -SN BR BKN008 OVC029
   FM040300 18005KT 1SM -SN BR OVC006
   FM041000 27003KT 2SM BR OVC003
   FM041300 27006KT P6SM SCT250
B21
EffectiveExpiresCategoryNOTAM
FDC
7/10/25
2117Z
!FDC 5/6500 B21 ODP SUGARLOAF RGNL, CARRABASSETT, ME.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
DEPARTURE PROCEDURE RWY 35 NA.
2507102117-2707152116EST
No
UNATNDD
TOWN OF CARRABASSETT
1001 CARRIAGE RD
CARRABASSETT VALLEY, ME 04947
Phone: 207-235-2646
TOM WALLACE
1001 CARRIAGE RD
CARRABASSETT VALLEY, ME 04947
Phone: 207-350-1415
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 17/35

2797 ft. x 75 ft.
ASPH
Good
NONE


12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 149°329°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 05' 19"N 45° 04' 55"N
Longitude 70° 13' 09"W 70° 12' 49"W
Elevation 880' 857'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HIGH TRRN 4237 FT MSL NORTH/EAST/WEST OF ARPT.
A110-3CALL 207-350-1415 TO CK ARPT CONDS.
A110-5DEER, MOOSE & TURKEY ON & INVOF ARPT.
A110-6FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A14ADDNL CTC: TOM WALLACE AT TLWCFII@YAHOO.COM.
A58-17+10 FT ROADWAY 100-200 FT FM THR, 85-125 FT L OF CNTRLN.
A75-TBRING OWN TIE DOWN ROPES OR CHAINS.
E111VFR OPS ONLY.
SUGARLOAF RGNL (IATA: B21) is a public airport located in CARRABASSETT, ME, US.
