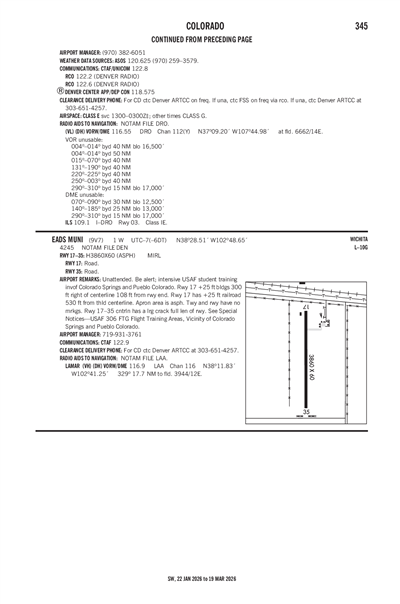

EADS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

9V7
Local 9V7
EADS MUNI
PublicPUB

1 miles W of EADS, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 28' 30"N 102° 48' 39"W
Elevation
4245' MSL
Pattern Alt
5245' MSL
Mag Variation
6°E
Declination
10°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
WICHITA
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KLAA (25nm) VFR
1:53 AM MST
Clear
10sm
34°F
33°F
30.14"Hg
240° 4kts
AO2 SLP190 T00110006 58005
METAR KLAA 040853Z AUTO 24004KT 10SM CLR 01/01 A3014 RMK AO2 SLP190 T00110006 58005
+ Add Your Business

9V7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KGLD (75nm)
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 1:00 PM MST
Scattered 18,000'
6sm
VRB° 6kts
IFR
Temporary 4:00 AM MST - 5:00 AM MST
Mist
Broken 700'
2sm
Calm
VFR
1:00 PM MST - 5:00 PM MST
Few 13,000'
6sm
210° 8kts
VFR
5:00 PM MST - 11:00 PM MST
Few 20,000'
6sm
170° 10kts
TAF KGLD 040520Z 0406/0506 VRB06KT P6SM SCT180
   TEMPO 0411/0412 2SM BR BKN007
   FM042000 21008KT P6SM FEW130
   FM050000 17010KT P6SM FEW200
9V7
EffectiveExpiresCategoryNOTAM
Domestic
2/19/26
2218Z
4/30/26
2359Z
!DEN 02/391 9V7 OBST TOWER LGT (ASR 1022303) 383935.00N1024724.00W (11.1NM NE 9V7) 4534.1FT (265.7FT AGL) U/S 2602192218-2604302359
No
UNATNDD
TOWN OF EADS
CITY HALL BOX 8
EADS, CO 81036
Phone: 719-931-3761
TRENT RITTGERS
CITY HALL BOX 8
EADS, CO 81036
Phone: 719-931-3761
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 17/35

3860 ft. x 60 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 38° 28' 50"N 38° 28' 11"N
Longitude 102° 48' 39"W 102° 48' 39"W
Elevation 4,245' 4,242'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1APRON AREA IS ASPH.
A110-2UNCONTROLLED VEHICLE ACCESS TO OPNS AREA & RYS.
A110-4RWY 17 HAS +25 FT RAILROAD 530 FT FM THLD CNTRLN.
A110-5TWY AND RWY HAVE NO MRKGS.
A110-6BE ALERT; INTSV USAF STUDENT TRNG INVOF COLORADO SPRINGS & PUEBLO COLORADO.
A110-7RWY 17 +25 FT BLDGS 300 FT RIGHT OF CNTRLN 108 FT FM RWY END.
A110-8FOR CD CTC DENVER ARTCC AT 303-651-4257.
A16AFT HRS MGR PHONE NR 719-688-7294.
A33-17/35_CONDCNTRLN HAS A LRG CRACK FULL LEN OF RWY.
A57-17PUB RD APRX 204 FT FM RWY 35 EXT CNTRLN, 16 FT ABV RWY END.
A58-17RWY 17 +10 FT ROAD 40 FT RIGHT OF CNTRLN 5 FT FM RWY END. LRG SPOOLS LCTD 190 FT FM RWY THLD 25 FT RIGHT OF CNTRLN.
E111ESTABD PRIOR TO 1953, REACTIVATED 1963.
EADS MUNI (IATA: 9V7) is a public airport located in EADS, CO, US.
