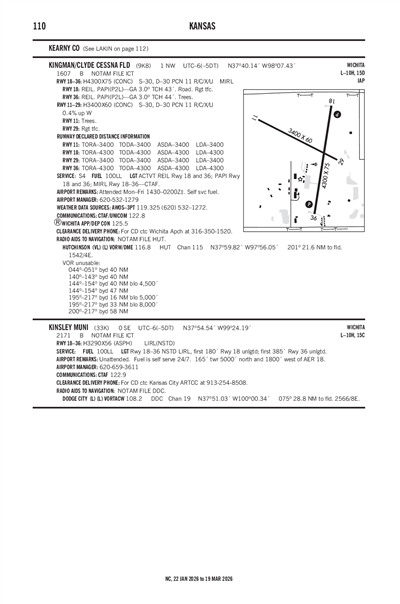

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

9K8
KINGMAN/CLYDE CESSNA FLD
PublicPUB

1 miles NW of KINGMAN, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 40' 08"N 98° 07' 26"W
1607' MSL
2607' MSL
06E
100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
10/31/24-11/28/24
KHUT (27nm) VFR
5:52 AM CST
Clear
10sm
41°F
39°F
29.86"Hg
160° 17kts
AO2 SLP109 60002 70117 T00500039 10111 20044 56006
KHUT 091152Z 16017KT 10SM CLR 05/04 A2986 RMK AO2 SLP109 60002 70117 T00500039 10111 20044 56006
Add Your Business

9K8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
620-532-1272
 119.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHUT (27nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Few 20,000'
6sm
170° 11kts
VFR
10:00 AM CST - 5:00 PM CST
Few 24,000'
6sm
200° 15kts
Gusts 25kts
VFR
5:00 PM CST - 6:00 AM CST
Sky Clear
6sm
230° 9kts
KHUT 091120Z 0912/1012 17011KT P6SM FEW200
   FM091600 20015G25KT P6SM FEW240
   FM092300 23009KT P6SM SKC
9K8
Domestic
8/7/241140Z !ICT 08/130 9K8 RWY 18 RWY END ID LGT U/S 2408071140-2502072111EST
FDC
9/26/231324Z !FDC 3/4977 9K8 IAP KINGMAN/CLYDE CESSNA FLD, KINGMAN, KS.
RNAV (GPS) RWY 36, AMDT 1B...
LP MDA 2280/HAT 683 ALL CATS, VIS CAT C 2. LNAV MDA 2280/HAT 683 ALL CATS, VIS CAT C 2. CIRCLING MDA 2280/HAA 673 ALL CATS, VIS CAT C 2. VDP NA. DISREGARD BUGAC STEPDOWN FIX AND STEPDOWN FIX ALTITUDE.
2309261324-2509261324EST
No
MON-FRI 0830-2000
CITY OF KINGMAN
324 NORTH MAIN
KINGMAN, KS 67068
Phone: 620-532-3111
TIM GULLION
PO BOX 262
KINGMAN, KS 67068
Phone: (620) 532-1279
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT REIL RWY 18 & 36; PAPI RWY 18 & 36; MIRL 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 11/29

3400 ft. x 60 ft.
CONC
Good
NONE

11 /R/C/X/U
30,000lbs
30,000lbs
--
--
  Runway 11 Runway 29
True Heading 116°296°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 40' 20"N 37° 40' 05"N
Longitude 98° 07' 52"W 98° 07' 14"W
Elevation 1,607' 1,592'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

4300 ft. x 75 ft.
CONC
Fair
NONE
MED
11 /R/C/X/U
30,000lbs
30,000lbs
--
--
  Runway 18 Runway 36
True Heading 188°8°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 40' 26"N 37° 39' 44"N
Longitude 98° 07' 17"W 98° 07' 24"W
Elevation 1,599' 1,596'
Threshold Crossing Height 43 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC WICHITA APCH AT 316-350-1520.
KINGMAN/CLYDE CESSNA FLD (IATA: 9K8) is a public airport located in KINGMAN, KS.
