iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

9D9
HASTINGS
PublicPUB

3 miles W of HASTINGS, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 39' 48"N 85° 20' 45"W
800' MSL
1600' MSL
06W
JET A (FSII), 100LL
LANSING (LAN)
CHICAGO
CHICAGO (ZAU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

9D9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

No communication frequencies available for this airport.

FAA A/FD Pages

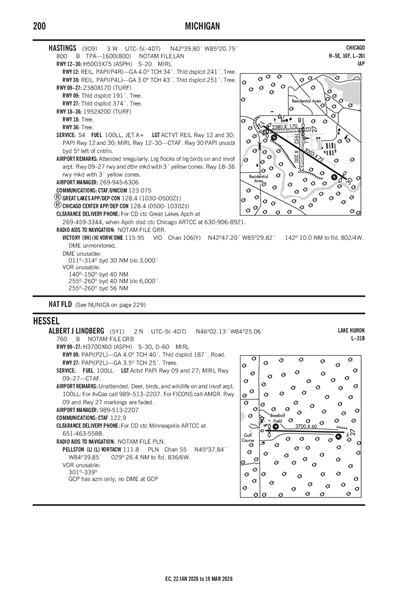

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
9D9
Domestic
1/5/252323Z !LAN 01/149 9D9 RWY 18/36 CLSD 2501052323-2503282322
1/2/251045Z !LAN 01/042 9D9 OBST TOWER LGT (ASR 1213715) 423255.60N0851531.70W (7.9NM SSE 9D9) 1246.1FT (254.9FT AGL) U/S 2501021045-2504020500
12/11/242145Z !LAN 12/355 9D9 OBST TOWER LGT (ASR 1006577) 423254.00N0852241.00W (7.1NM SSW 9D9) 1322.5FT (307.7FT AGL) U/S 2412112145-2501312359
12/5/241522Z !LAN 12/185 9D9 RWY 09/27 CLSD 2412051522-2503302300
FDC
12/30/241453Z !FDC 4/1881 9D9 IAP HASTINGS, HASTINGS, MI.
VOR RWY 12, ORIG-H...
CHANGE ALTIMETER SETTING NOTE TO READ: USE GRR ALTIMETER SETTING;
WHEN NOT RECEIVED, USE Y70 ALTIMETER SETTING AND INCREASE ALL MDA
20 FEET. INCREASE JCUBS DME MINIMUMS S-12 VISIBILITY 1/8 MILE CAT
C. INCREASE JCUBS FIX MINIMUM ALTITUDE 1700. S-12 MDA 1700/HAT 900
ALL CATS, VIS 1 1/4 CAT A. CIRCLING MDA 1700/HAA 900 ALL CATS; VIS
1 1/4 CAT A AND 2 3/4 CAT C. JCUBS DME MINIMUMS: CIRCLING MDA
1440/HAA 640 CAT B.
THIS IS VOR RWY 12, ORIG-I. 2412301453-PERM
12/30/241453Z !FDC 4/1880 9D9 IAP HASTINGS, HASTINGS, MI.
RNAV (GPS) RWY 30, AMDT 2A...
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH-GPS. CHANGE
ALTIMETER SETTING NOTE TO READ: USE GRR ALTIMETER SETTING; WHEN NOT
RECEIVED, USE Y70 ALTIMETER SETTING: INCREASE LPV DA TO 1131 FEET;
INCREASE LNAV/VNAV DA TO 1377; INCREASE ALL MDAS 20 FEET. DELETE
PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM MINIMUM ALTITUDE AT
ECAVU 2.10 NM TO RW30 1500. CIRCLING MDA 1440/HAA 640 CAT B. CHART
NOTE: RWY 30 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT
AUTHORIZED. 34:1 IS NOT CLEAR.
THIS IS RNAV (GPS) RWY 30, AMDT 2B. 2412301453-PERM
12/30/241453Z !FDC 4/1879 9D9 IAP HASTINGS, HASTINGS, MI.
RNAV (GPS) RWY 12, AMDT 2...
DELETE NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP
APCH-GPS. CHANGE ALTIMETER SETTING NOTE TO READ: USE GRR ALTIMETER
SETTING; WHEN NOT RECEIVED, USE Y70 ALTIMETER SETTING: INCREASE LPV
DA TO 1102 FEET; INCREASE LNAV/VNAV DA TO 1260 FEET AND ALL
VISIBILITIES 1/8 SM; INCREASE ALL MDA 20 FEET, AND LNAV VISIBILITY
CAT C 1/8 SM. DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM
MINIMUM ALTITUDE AT EDOGE 1.90 NM TO RW12 1440. LNAV/VNAV VIS 1 3/8
ALL CATS. CIRCLING MDA 1440/HAA 640 CAT B. CHART NOTE: RWY 12
HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. 34:1
IS NOT CLEAR.
THIS IS RNAV (GPS) RWY 12, AMDT 2A. 2412301453-PERM
No
IREG
HASTINGS CITY-BARRY CO ARPT COMM
2505 MURPHY DR.
HASTINGS, MI 49058
Phone: 269-945-6306
GINO LUCCI
2505 MURPHY DR.
HASTINGS, MI 49058
Phone: 269-945-6306
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT MIRL RY 12/30, PAPI RY 12 & RY 30, REIL RY 12 & RY 30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 09/27

2380 ft. x 170 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 87°267°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 39' 55"N 42° 39' 56"N
Longitude 85° 21' 09"W 85° 20' 37"W
Elevation 795' 798'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5003 ft. x 75 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 122°302°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 39' 58"N 42° 39' 31"N
Longitude 85° 21' 09"W 85° 20' 13"W
Elevation 797' 797'
Threshold Crossing Height 34 ft. AGL 43 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

1952 ft. x 200 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 39' 57"N 42° 39' 37"N
Longitude 85° 20' 44"W 85° 20' 43"W
Elevation 797' 798'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2LRG FLOCKS OF LRG BIRDS ON & INVOF ARPT.
A110-3FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
HASTINGS (IATA: 9D9) is a public airport located in HASTINGS, MI.
