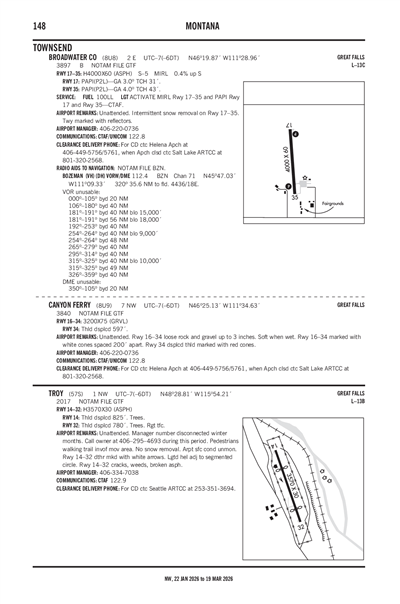

CANYON FERRY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

8U9
Local 8U9
CANYON FERRY
PublicPUB

7 miles NW of TOWNSEND, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 25' 08"N 111° 34' 38"W
Elevation
3840' MSL
Pattern Alt
4840' MSL
Mag Variation
12°E
Declination
17°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KHLN (20nm) VFR
2:53 AM MST
Clear
10sm
38°F
19°F
29.96"Hg
260° 3kts
AO2 SLP159 T00331072 $
METAR KHLN 040953Z AUTO 26003KT 10SM CLR 03/M07 A2996 RMK AO2 SLP159 T00331072 $
+ Add Your Business

8U9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KHLN (20nm)
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 1:00 PM MST
Broken 25,000'
6sm
VRB° 6kts
VFR
1:00 PM MST - 5:00 PM MST
Broken 12,000'
6sm
200° 9kts
Gusts 16kts
VFR
5:00 PM MST - 11:00 PM MST
Light Showers and Rain
Broken 5,000'
Scattered 3,000'
6sm
270° 9kts
Gusts 16kts
TAF KHLN 040520Z 0406/0506 VRB06KT P6SM BKN250
   FM042000 20009G16KT P6SM BKN120
   FM050000 27009G16KT 6SM -SHRA SCT030 BKN050
8U9
No NOTAM Available
No
UNATNDD
BROADWATER COUNTY
515 BROADWAY
TOWNSEND, MT 59644
Phone: (406) 266-9203
DWIGHT THOMPSON
515 BROADWAY #16
TOWNSEND, MT 59644
Phone: 406-220-0736
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 16/34

3200 ft. x 75 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NSTD
Markings Condition GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO SNOW REMOVAL.
A110-2FOR CD CTC HELENA APCH AT 406-449-5756/5761, WHEN APCH CLSD CTC SALT LAKE ARTCC AT 801-320-2568.
A33-16/34_CONDRWY 16/34 LOOSE ROCK AND GRVL UP TO 3 IN. SOFT WHEN WET.
A42-16_MARK16/34 MARKED WITH WHITE CONES SPACED 200 FT APART. RY 34 DSPLCD THR MARKED WITH RED CONES.
A57-34APCH SLOPE 50:1 FM DSPLCD THR.
CANYON FERRY (IATA: 8U9) is a public airport located in TOWNSEND, MT, US.
