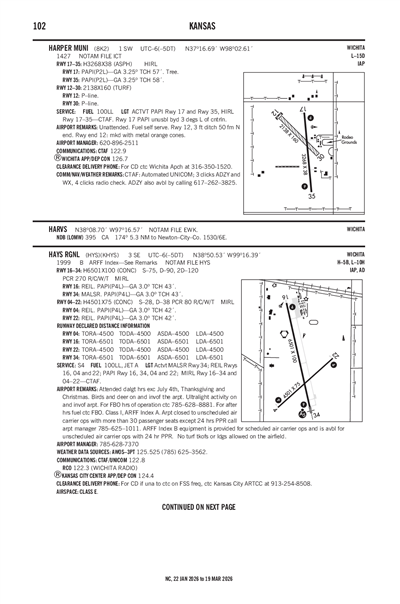

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

8K2
HARPER MUNI
PublicPUB

1 miles SW of HARPER, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 16' 41"N 98° 02' 37"W
1427' MSL
2427' MSL
07E
100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
10/31/24-11/28/24
KP28 (24nm) VFR
4:56 AM CST
No Clouds
N/A
42°F
37°F
29.87"Hg
180° 9kts
AO1 SLP116 T00560028 $
KP28 091056Z AUTO 18009KT 06/03 A2987 RMK AO1 SLP116 T00560028 $
Add Your Business

8K2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KICT (37nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Few 20,000'
6sm
180° 10kts
VFR
10:00 AM CST - 6:00 PM CST
Sky Clear
6sm
200° 14kts
Gusts 24kts
VFR
6:00 PM CST - 6:00 AM CST
Sky Clear
6sm
230° 8kts
KICT 091120Z 0912/1012 18010KT P6SM FEW200
   FM091600 20014G24KT P6SM SKC
   FM100000 23008KT P6SM SKC
8K2
Domestic
11/4/241748Z !ICT 11/103 8K2 OBST TOWER LGT (ASR 1042059) 372259.60N0981647.90W (12.9NM WNW 8K2) 2165.7FT (461.9FT AGL) U/S 2411041748-2503041748
10/31/240456Z !ICT 10/498 8K2 OBST TOWER LGT (ASR 1011291) 371622.30N0975807.00W (3.6NM E 8K2) 1849.1FT (482.0FT AGL) U/S 2410310456-2412312359
4/19/242012Z !ICT 04/276 8K2 AIRSPACE SEE ZKC 04/280 OBST
2404192012-2412312359
FDC
10/28/241834Z !FDC 4/5141 8K2 ODP HARPER MUNI, HARPER, KS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
DEPARTURE PROCEDURE: RWY 35, CLIMB HEADING 348 TO 2500 BEFORE TURNING, WIND TURBINE, 2179 MSL, 5.21 NM NORTH OF RWY 35 (2024-WTE-9871-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2410281834-2610281834EST
10/28/241834Z !FDC 4/5138 8K2 IAP HARPER MUNI, HARPER, KS.
RNAV (GPS)-A, ORIG...
TAA RIGHT BASE 168/30 CW 258/30 TO SCENA MINIMUM ALTITUDE 3300.
2410281834-2610281834EST
No
UNATNDD
CITY OF HARPER
201 W. MAIN
HARPER, KS 67058
Phone: 620-896-2511
KAREN BEFORT
201 WEST MAIN
HARPER, KS 67058
Phone: 620-896-2511
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT PAPI RWY 17 & 35, HIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 12/30

2138 ft. x 160 ft.
TURF
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 134°314°
Traffic Pattern Left Left
Markings
Markings Condition GOOD
Latitude 37° 16' 53"N 37° 16' 38"N
Longitude 98° 02' 48"W 98° 02' 29"W
Elevation 1,426' 1,426'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

3268 ft. x 38 ft.
ASPH
Good
NONE
HIGH

--
--
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 16' 55"N 37° 16' 23"N
Longitude 98° 02' 37"W 98° 02' 33"W
Elevation 1,427' 1,424'
Threshold Crossing Height 57 ft. AGL 58 ft. AGL
Visual Glide Path Angle 3.25° 3.25°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 12, 3 FT DITCH 50 FM N END.
A110-4FOR CD CTC WICHITA APCH AT 316-350-1520.
HARPER MUNI (IATA: 8K2) is a public airport located in HARPER, KS.
