iFlightPlanner



...

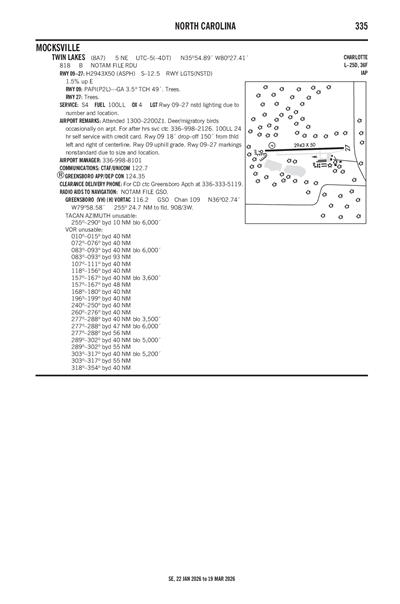

TWIN LAKES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

8A7
Local 8A7
TWIN LAKES
PublicPUB

5 miles NE of MOCKSVILLE, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 54' 54"N 80° 27' 25"W
Elevation
818' MSL
Pattern Alt
1818' MSL
Mag Variation
8°W
Declination
6°W
Fuel
100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KEXX (11nm) MVFR
1:55 AM EST
Mist
Overcast 2,300'
5sm
43°F
43°F
30.31"Hg
Calm
AO2 T00630063
METAR KEXX 040655Z AUTO 00000KT 5SM BR OVC023 06/06 A3031 RMK AO2 T00630063
+ Add Your Business

8A7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
UNICOM 122.7

Approach

GREENSBORO APPROACH 124.35

Departure

GREENSBORO DEPARTURE 124.35

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KINT (17nm)
Wed, 3/4 12:40 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
MVFR
1:00 AM EST - 6:00 AM EST
Broken 25,000'
Broken 2,500'
6sm
230° 4kts
MVFR
Temporary 6:00 AM EST - 8:00 AM EST
Mist
Scattered 500'
3sm
Calm
VFR
6:00 AM EST - 9:30 AM EST
Mist
Broken 25,000'
Scattered 2,000'
6sm
230° 4kts
VFR
9:30 AM EST - 1:00 AM EST
Scattered 25,000'
6sm
230° 9kts
TAF KINT 040540Z 0406/0506 23004KT P6SM BKN025 BKN250
   FM041100 23004KT 6SM BR SCT020 BKN250
   TEMPO 0411/0413 3SM BR SCT005
   FM041430 23009KT P6SM SCT250 AMD NOT SKED
8A7
EffectiveExpiresCategoryNOTAM
Domestic
1/11/26
2054Z
1/11/27
2359Z
Runway!RDU 01/135 8A7 RWY 09 PAPI U/S 2601112054-2701112359
No
0800-1700
DR. PHILIP MARTIN
644 HOLLY SPRINGS ROAD SUITE 161
HOLLY SPRINGS, NC 27540
Phone: 919-571-0081
BRIAN MEADOWS
1105 FORK BIXBY RD
ADVANCE, NC 27006
Phone: 336-998-8101
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
No
Major
Major
Low Pressure
None
Avionics
Pilot Instruction
Aircraft Sales

Runway 09/27

2943 ft. x 50 ft.
ASPH
Good
NONE
NSTD

12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 88°268°
Traffic Pattern
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 35° 54' 53"N 35° 54' 54"N
Longitude 80° 27' 42"W 80° 27' 07"W
Elevation 773' 818'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2RWY 09 -18 FT DROP-OFF 150 FT FROM THR LEFT & RIGHT OF CNTRLN.
A110-3RWY 09 UPHILL GRADE.
A110-4DEER/MIGRATORY BIRDS OCNLLY ON ARPT.
A110-5FOR CD CTC GREENSBORO APCH AT 336-333-5119.
A110-6FOR AFT HRS SVC CTC 336-998-2126.
A40-09/27RWY 09/27 NSTD LIGHTING DUE TO NUMBER AND LOCATION.
A42-09_MARKRWY 09 MARKINGS NONSTANDARD DUE TO SIZE AND LOCATION.
A42-27_MARKRWY 27 MARKINGS NONSTANDARD DUE TO SIZE AND LOCATION.
A58-09HAS 10-15 FT BRUSH STARTING 0-200 FT FM THR OFFSET 37-58 FT R OF CNTRLN AND HAS 12-31 FT BRUSH 0-200 FT FM THR OFFSET 55-95 FT L OF CNTRLN.
A70-100LL24 HR SELF SERVICE WITH CC.
TWIN LAKES (IATA: 8A7) is a public airport located in MOCKSVILLE, NC, US.
