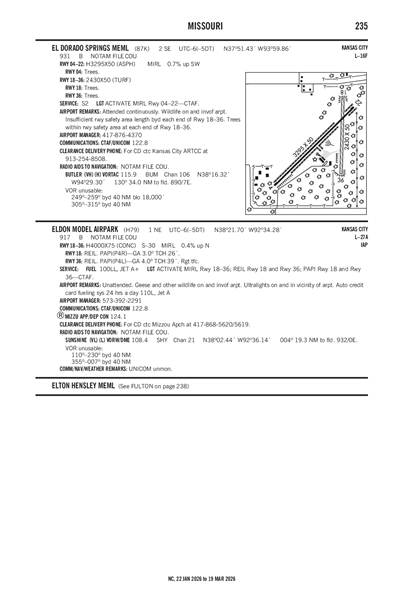

EL DORADO SPRINGS MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

87K
Local 87K
EL DORADO SPRINGS MEML
PublicPUB

2 miles SE of EL DORADO SPRINGS, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 51' 26"N 93° 59' 51"W
Elevation
931' MSL
Pattern Alt
1931' MSL
Mag Variation
1°E
Declination
5°E
Fuel
None Listed
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KGLY (34nm) LIFR
7:55 PM CST
Mist
Overcast 300'
2.5sm
48°F
48°F
30.01"Hg
Calm
AO2 LTG DSNT N AND SE AND NW
METAR KGLY 050155Z AUTO 00000KT 2 1/2SM BR OVC003 09/09 A3001 RMK AO2 LTG DSNT N AND SE AND NW
+ Add Your Business

87K FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RY 04/22 - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KSGF (47nm)
Wed, 3/4 5:50 PM CST
Wed, 3/4 6:00 PM CST - Thu, 3/5 6:00 PM CST
IFR
6:00 PM CST - 10:00 PM CST
Light Showers and Rain
Overcast 600'
6sm
330° 8kts
IFR
Temporary 6:00 PM CST - 10:00 PM CST
Light Thunderstorm and Rain
Overcast 600'
2sm
Calm
LIFR
10:00 PM CST - 2:00 AM CST
Light Thunderstorm and Rain and Mist
Overcast 400'
1sm
Calm
LIFR
10:00 PM CST - 6:00 AM CST
Showers and Rain and Mist
Overcast 400'
2sm
270° 5kts
LIFR
6:00 AM CST - 11:00 AM CST
Mist
Broken 400'
1sm
VRB° 4kts
IFR
11:00 AM CST - 6:00 PM CST
Overcast 700'
6sm
210° 5kts
TAF KSGF 042350Z 0500/0524 33008KT P6SM -SHRA OVC006
   TEMPO 0500/0504 2SM -TSRA OVC006CB
   FM050400 27005KT 2SM SHRA BR OVC004
   PROB30 0504/0508 1SM -TSRA BR OVC004CB
   FM051200 VRB04KT 1SM BR BKN004
   FM051700 21005KT P6SM OVC007
87K
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
0044Z
3/16/26
2344Z
!COU 03/016 87K OBST TOWER LGT (ASR 1284995) 375719.20N0935620.50W (6.5NM NNE 87K) 1101.0FT (253.9FT AGL) U/S 2603020044-2603162344
3/14/25
1859Z
3/14/26
2359Z
!COU 03/289 87K AD AP ABN U/S 2503141859-2603142359
No
ALL
MANAGER LIVES ON AIRPORT.
CITY OF EL DORADO SPRINGS
127 W SPRING
EL DORADO SPRINGS, MO 64744
Phone: 417-876-2521
JERRY SHILT
3665 E. 320 RD.
EL DORADO SPRINGS, MO 64744
Phone: 417-876-4370
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT MIRL RY 04/22 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
Minor
Minor
None
None
Pilot Instruction

Runway 04/22

3295 ft. x 50 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 47°227°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 51' 13"N 37° 51' 35"N
Longitude 94° 00' 12"W 93° 59' 42"W
Elevation 931' 910'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

2430 ft. x 50 ft.
TURF
Excellent
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 183°3°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 37° 51' 40"N 37° 51' 16"N
Longitude 93° 59' 44"W 93° 59' 45"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2WILDLIFE ON & INVOF ARPT.
A110-3INSUF RWY SAFETY AREA LENGTH BYND EACH END OF RWY 18/36. TREES WITHIN RWY SAFETY AREA AT EACH END OF RWY 18/36.
A110-4FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A17-M1MANAGER LIVES ON AIRPORT.
A81-APTACTVT MIRL RY 04/22 - CTAF.
EL DORADO SPRINGS MEML (IATA: 87K) is a public airport located in EL DORADO SPRINGS, MO, US.
