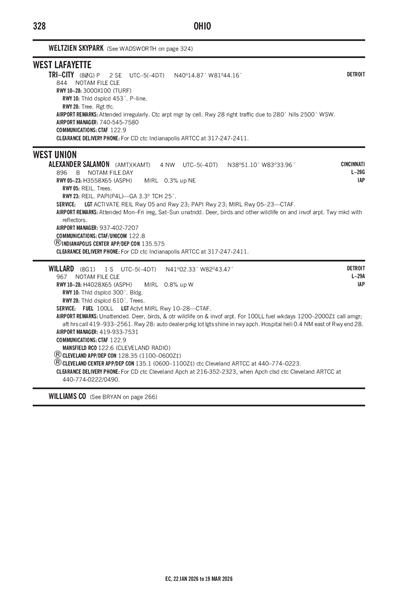

TRI-CITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

80G
Local 80G
TRI-CITY
PublicPUB

2 miles SE of WEST LAFAYETTE, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 14' 52"N 81° 44' 10"W
Elevation
844' MSL
Pattern Alt
1844' MSL
Mag Variation
8°W
Fuel
None Listed
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KI40 (7nm) LIFR
2:35 AM EST
Light Drizzle
Overcast 2,500'
Broken 100'
0.25sm
46°F
46°F
30.17"Hg
Calm
AO2 P0001
METAR KI40 040735Z AUTO 00000KT 1/4SM -DZ BKN001 OVC025 08/08 A3017 RMK AO2 P0001
+ Add Your Business

80G FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KZZV (20nm)
Wed, 3/4 12:39 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
IFR
1:00 AM EST - 4:00 AM EST
Light Rain and Mist
Overcast 600'
3sm
VRB° 3kts
LIFR
4:00 AM EST - 9:00 AM EST
Light Drizzle and Fog
Overcast 200'
0.5sm
Calm
IFR
9:00 AM EST - 1:00 PM EST
Light Drizzle and Mist
Overcast 500'
2sm
Calm
IFR
1:00 PM EST - 6:00 PM EST
Light Drizzle and Mist
Overcast 600'
5sm
VRB° 3kts
LIFR
6:00 PM EST - 1:00 AM EST
Light Rain and Mist
Overcast 400'
2sm
VRB° 4kts
TAF KZZV 040539Z 0406/0506 VRB03KT 3SM -RA BR OVC006
   FM040900 00000KT 1/2SM -DZ FG OVC002
   FM041400 00000KT 2SM -DZ BR OVC005
   FM041800 VRB03KT 5SM -DZ BR OVC006
   FM042300 VRB04KT 2SM -RA BR OVC004
80G
EffectiveExpiresCategoryNOTAM
Domestic
1/17/26
0953Z
5/17/26
0953Z
!CLE 01/769 80G OBST TOWER LGT (ASR 1028146) 401017.00N0813304.00W (9.6NM ESE 80G) 1427.2FT (369.1FT AGL) U/S 2601170953-2605170953
No
IREG
DAVID ZIMMER
20670 STATE ROUTE 93
WEST LAFAYETTE, OH 43845
Phone: 740-545-7580
DAVID ZIMMER
20629 STATE ROUTE 93
WEST LAFAYETTE, OH 43845
Phone: 740-545-7580
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
--
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 10/28

3000 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 40° 14' 53"N 40° 14' 52"N
Longitude 81° 44' 29"W 81° 43' 51"W
Elevation 844' 844'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1FOR CD CTC INDIANAPOLIS ARTCC AT 317-247-2411.
A16CELL 740-545-7580.
A23-28DUE TO 280 FT HILLS, 2500 FT WSW.
A52-10ALSO 270 FT WOODED HILL, 2100 FT DIST.
A57-10OBSTN CLNC SLP 18:1 TO DTHR.
TRI-CITY (IATA: 80G) is a public airport located in WEST LAFAYETTE, OH, US.
