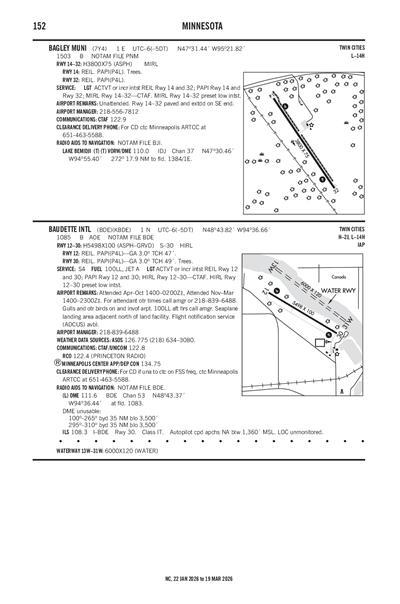

BAGLEY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7Y4
Local 7Y4
BAGLEY MUNI
PublicPUB

1 miles E of BAGLEY, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 31' 27"N 95° 21' 49"W
Elevation
1503' MSL
Pattern Alt
2503' MSL
Mag Variation
2°E
Declination
5°E
Fuel
None Listed
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KFSE (17nm) LIFR
9:55 PM CST
Freezing Fog
Overcast 200'
0.25sm
25°F
25°F
30.11"Hg
200° 7kts
AO2
METAR KFSE 040355Z AUTO 20007KT 1/4SM FZFG OVC002 M04/M04 A3011 RMK AO2
+ Add Your Business

7Y4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF. MIRL RWY 14/32 PRESET LOW INTST.

FAA A/FD Pages

Terminal Area Forecast

KBJI (18nm)
Tue, 3/3 7:32 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
8:00 PM CST - 11:00 PM CST
Mist
Overcast 400'
3sm
250° 5kts
LIFR
11:00 PM CST - 8:00 AM CST
Freezing Fog
Obscured
0.5sm
200° 5kts
IFR
8:00 AM CST - 3:00 PM CST
Mist
Broken 700'
5sm
210° 10kts
VFR
3:00 PM CST - 6:00 PM CST
Scattered 400'
6sm
280° 9kts
TAF KBJI 040132Z 0402/0424 25005KT 3SM BR OVC004
   FM040500 20005KT 1/2SM FZFG VV002
   FM041400 21010KT 5SM BR BKN007
   FM042100 28009KT P6SM SCT004
7Y4
No NOTAM Available
No
UNATNDD
CITY OF BAGLEY
PO BOX 178
BAGLEY, MN 56621
Phone: 218-694-2865
BILL MASTERSON
PO BOX 178
BAGLEY, MN 56621
Phone: 218-556-7812
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
PNM
--
ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF. MIRL RWY 14/32 PRESET LOW INTST.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 14/32

3800 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 14 Runway 32
True Heading 146°326°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 47° 31' 42"N 47° 31' 11"N
Longitude 95° 22' 05"W 95° 21' 34"W
Elevation 1,497' 1,503'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A31-14/32PAVED & EXTDD ON SE END.
A81-APTACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF. MIRL RWY 14/32 PRESET LOW INTST.
BAGLEY MUNI (IATA: 7Y4) is a public airport located in BAGLEY, MN, US.
