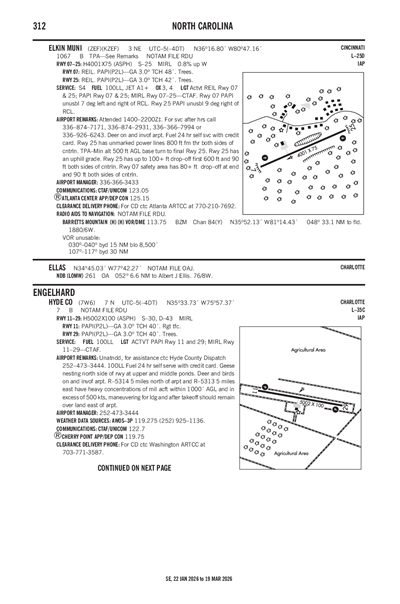

HYDE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7W6
Local 7W6
HYDE COUNTY
PublicPUB

7 miles N of ENGELHARD, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 33' 44"N 75° 57' 22"W
Elevation
7' MSL
Pattern Alt
1007' MSL
Mag Variation
11°W
Declination
9°W
Fuel
100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
K7W6 VFR
10:55 PM EST
Scattered 3,200'
10sm
48°F
47°F
30.35"Hg
Calm
AO2 T00890083
METAR K7W6 040355Z AUTO 00000KT 10SM SCT032 09/08 A3035 RMK AO2 T00890083
+ Add Your Business

7W6 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 119.275
(252) 925-1136

Common

CTAF 122.7
ACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
UNICOM 122.7

Approach

CHERRY POINT APPROACH 119.75

Departure

CHERRY POINT DEPARTURE 119.75

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KECG (43nm)
Tue, 3/3 9:26 PM EST
Tue, 3/3 9:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
9:00 PM EST - 2:00 AM EST
Scattered 8,000'
6sm
Calm
MVFR
2:00 AM EST - 4:00 AM EST
Mist
Broken 1,200'
Scattered 400'
4sm
220° 5kts
LIFR
4:00 AM EST - 8:00 AM EST
Fog
Overcast 400'
Scattered 200'
0.5sm
VRB° 3kts
VFR
8:00 AM EST - 11:00 AM EST
Scattered 4,500'
Scattered 2,500'
6sm
240° 7kts
VFR
11:00 AM EST - 7:00 PM EST
Sky Clear
6sm
220° 8kts
TAF KECG 040226Z 0402/0424 00000KT P6SM SCT080
   FM040700 22005KT 4SM BR SCT004 BKN012
   FM040900 VRB03KT 1/2SM FG SCT002 OVC004
   FM041300 24007KT P6SM SCT025 SCT045
   FM041600 22008KT P6SM SKC
7W6
EffectiveExpiresCategoryNOTAM
Domestic
2/10/26
0529Z
3/12/26
2359Z
!RDU 02/216 7W6 OBST TOWER LGT (ASR 1306367) 352730.70N0762234.50W (21.48NM W 7W6) 311FT (310FT AGL) U/S 2602100529-2603122359
2/2/26
1913Z
4/2/26
2359Z
!RDU 02/098 7W6 OBST TOWER LGT (ASR 1255301) 352900.60N0760051.20W (5.6NM SSW 7W6) 327.1FT (325.1FT AGL) U/S 2602021913-2604022359
No
UNATNDD
FOR ASSISTANCE CTC HYDE COUNTY DISPATCH 252-473-3444.
HYDE COUNTY
PO BOX 95
SWAN QUARTER, NC 27885
Phone: 252-473-3444
JOHNNY GIBBS
PO BOX 189
SWAN QUARTER, NC 27885
Phone: 252-473-3444
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 11/29

5002 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
43,000lbs
--
--
  Runway 11 Runway 29
True Heading 100°280°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 33' 48"N 35° 33' 39"N
Longitude 75° 57' 52"W 75° 56' 52"W
Elevation 6' 7'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2R5314 5 MI NORTH OF ARPT AND R5313 5 MI EAST HAVE HVY CONCENTRATIONS OF MIL ACFT WI 1000 FT AGL AND IN EXCESS OF 500 KTS. MNVRNG FOR LDG AND AFT TKOF SHOULD RMN OVER LAND EAST OF ARPT.
A110-4DEER & BIRDS ON & INVOF ARPT.
A110-5GEESE NESTING NORTH SIDE OF RWY AT UPPER AND MIDDLE PONDS.
A110-6FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A17-M1FOR ASSISTANCE CTC HYDE COUNTY DISPATCH 252-473-3444.
A70-100LL24 HR SELF SERVE WITH CREDIT CARD.
A81-APTACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
HYDE COUNTY (IATA: 7W6) is a public airport located in ENGELHARD, NC, US.
