iFlightPlanner



...

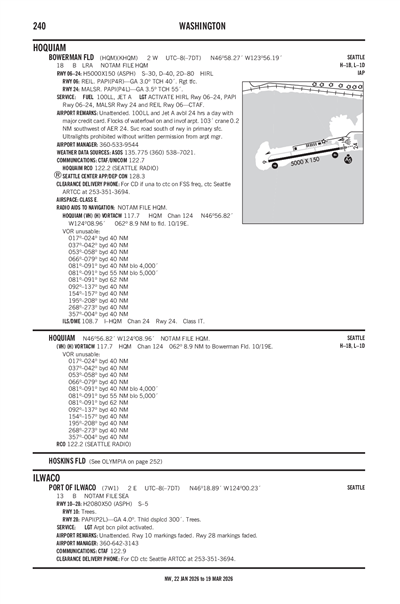

PORT OF ILWACO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7W1
Local 7W1
PORT OF ILWACO
PublicPUB

2 miles E of ILWACO, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 18' 54"N 124° 00' 14"W
Elevation
13' MSL
Pattern Alt
1013' MSL
Mag Variation
15°E
Declination
20°E
Fuel
None Listed
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KAST (11nm) MVFR
12:55 AM PST
Light Rain
Overcast 4,500'
Broken 3,000'
Scattered 2,100'
7sm
49°F
48°F
29.87"Hg
120° 3kts
AO2 SLP116 P0003 60004 T00940089 58028
METAR KAST 040855Z AUTO 12003KT 7SM -RA SCT021 BKN030 OVC045 09/09 A2987 RMK AO2 SLP116 P0003 60004 T00940089 58028
+ Add Your Business

7W1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KAST (11nm)
Tue, 3/3 9:33 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
MVFR
10:00 PM PST - 9:00 AM PST
Light Rain
Overcast 6,000'
Broken 2,500'
6sm
180° 8kts
MVFR
9:00 AM PST - 11:00 AM PST
Light Rain
Broken 2,500'
6sm
260° 10kts
MVFR
11:00 AM PST - 10:00 PM PST
Light Rain
Overcast 3,000'
Scattered 2,000'
6sm
290° 10kts
Gusts 20kts
TAF KAST 040533Z 0406/0506 18008KT 6SM -RA BKN025 OVC060
   FM041700 26010KT P6SM -RA BKN025
   FM041900 29010G20KT P6SM -RA SCT020 OVC030
7W1
EffectiveExpiresCategoryNOTAM
Domestic
1/30/26
1600Z
7/1/26
2359Z
!SEA 01/388 7W1 AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 7W1 SFC-400FT AGL 2601301600-2607012359
No
UNATNDD
PORT OF ILWACO
165 HOWERTON WAY PO BOX 307
ILWACO, WA 98624
Phone: 360-642-3143
TRACY LOFSTROM
PORT OF ILWACO 165 HOWERTON AVENUE PO BOX 307
ILWACO, WA 98624
Phone: 360-642-3143
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
--
ARPT BEACON PILOT ACTIVATED.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 10/28

2080 ft. x 50 ft.
ASPH
Good
NONE


5,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 120°300°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 46° 18' 59"N 46° 18' 49"N
Longitude 124° 00' 27"W 124° 00' 01"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A35-10/28FULL STRENGTH PAVEMENT CENTER 30' ONLY.
A42-10_CONDMARKINGS FADED.
A42-28_CONDMARKINGS FADED.
A52-28RY 28 ALSO 15 FT RD 60 FT LEFT AT RY END.
A57-28APRCH SLOPE 0:1 AT DSPLCD THLD, OVR 50 FT TREES, 0 FT DSTC, 123 FT R.
A58-1015 FT ROAD & 2 FT FENCE, 0-200 FT FM END, 50 FT-125 FT R.
A58-28RWY 28 15 FT ROAD 0-200 FT DIST 60 FT L. 2 FT FENCE & 6 FT SIGN 76 FT R & 135 FT FM THR.
A75-TPILOTS BRING OWN ROPES.
A81-BCNARPT BEACON PILOT ACTIVATED.
E111ESTABD PRIOR TO MAY 1959.
PORT OF ILWACO (IATA: 7W1) is a public airport located in ILWACO, WA, US.
