7K5
Local 7K5
KENMARE MUNI
PublicPUB

1 miles SE of KENMARE, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 40' 03"N 102° 02' 53"W
Elevation
1962' MSL
Pattern Alt
2962' MSL
Mag Variation
7°E
Declination
10°E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
K1MN (7nm) MVFR
9:55 PM CST
Mist
Few 21,000'
5sm
28°F
26°F
29.92"Hg
140° 6kts
AO2 SLP166 T10251031 $
METAR K1MN 040355Z AUTO 14006KT 5SM BR FEW210 M02/M03 A2992 RMK AO2 SLP166 T10251031 $
+ Add Your Business

7K5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RY 26; PAPI RY 08/26; MIRL RY 08/26 - CTAF. LGTS OPER FOR 1 HR AT SS.
UNICOM 122.8

Approach

MINOT APPROACH 119.6

Departure

MINOT DEPARTURE 119.6

Center

MINOT CENTER 127.6
LOW/HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.6/279.6 ( MINOT RCAG) WHEN MINOT APCH CTL CLSD.

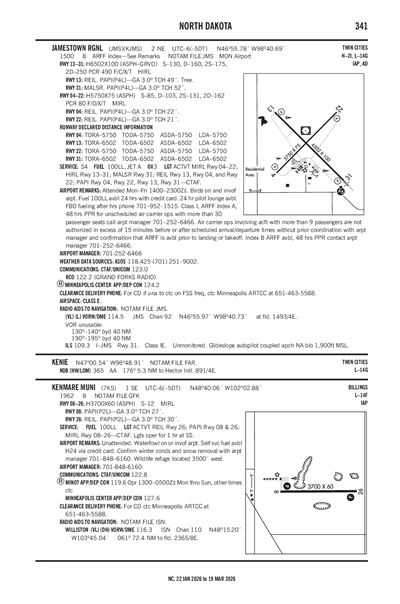

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMIB (32nm)
Tue, 3/3 7:30 PM CST
Tue, 3/3 7:00 PM CST - Thu, 3/5 1:00 AM CST
VFR
7:00 PM CST - 1:00 AM CST
Mist
Scattered 10,000'
Few 500'
5.59sm
29.91"Hg
VRB° 6kts
IFR
Becoming 1:00 AM CST - 5:00 AM CST
Mist
Overcast 500'
2.98sm
29.88"Hg
VRB° 6kts
LIFR
Temporary 2:00 AM CST - 6:00 AM CST
Mist
Overcast 300'
0.99sm
Calm
LIFR
Becoming 5:00 AM CST - 9:00 AM CST
Mist
Overcast 300'
0.99sm
29.91"Hg
030° 6kts
LIFR
Temporary 6:00 AM CST - 10:00 AM CST
Mist
No Clouds
0.75sm
Calm
LIFR
Becoming 9:00 AM CST - 11:00 AM CST
Mist
Overcast 400'
3.73sm
29.94"Hg
030° 9kts
IFR
Becoming 11:00 AM CST - 11:00 PM CST
Overcast 500'
6sm
29.94"Hg
060° 12kts
Gusts 18kts
IFR
Becoming 11:00 PM CST - 1:00 AM CST
Overcast 700'
6sm
29.91"Hg
090° 10kts
Gusts 20kts
TAF AMD KMIB 040130Z 0401/0507 VRB06KT 9000 BR FEW005 SCT100 QNH2990INS
   BECMG 0407/0408 VRB06KT 4800 BR OVC005 620052 QNH2989INS
   TEMPO 0408/0412 1600 BR OVC003 620032
   BECMG 0411/0412 03006KT 1600 BR OVC003 620032 QNH2990INS
   TEMPO 0412/0416 1200 BR
   BECMG 0415/0416 03009KT 6000 BR OVC004 620042 QNH2994INS
   BECMG 0417/0418 06012G18KT 9999 NSW OVC005 620052 QNH2995INS
   BECMG 0505/0506 09010G20KT 9999 OVC007 620073 QNH2992INS TX01/0418Z TNM05/0501Z
7K5
EffectiveExpiresCategoryNOTAM
Domestic
1/15/26
1425Z
Runway!GFK 01/372 7K5 RWY 26 RWY END ID LGT U/S 2601151425-2607152111EST
No
UNATNDD
KENMARE ARPT AUTH
320 N CENTRAL AVE
KENMARE, ND 58746
Phone: 701-848-6160
DEREK PETERSON
310 6TH AVE NE
KENMARE, ND 58746
Phone: 701-848-6160
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT REIL RY 26; PAPI RY 08/26; MIRL RY 08/26 - CTAF. LGTS OPER FOR 1 HR AT SS.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 08/26

3700 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 48° 40' 03"N 48° 40' 03"N
Longitude 102° 03' 20"W 102° 02' 25"W
Elevation 1,962' 1,955'
Threshold Crossing Height 27 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-1CONFIRM WINTER CONDS & SNOW REMOVAL WITH AMGR 701-848-6160.
A110-2WILDLIFE REFUGE LCTD 3500 FT W.
A110-3WATERFOWL ON OR INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A52-08ALSO +30 FT BLDGS 1300 FT FM THLD & 25 FT R OF EXTDD CNTRLN; +254 FT TWR 8000 FT FM THLD.
A52-26CLSD ROAD 360 FT FM THLD ON EXTDD CNTRLN.
A70-100LLSELF SVC FUEL AVBL H24 VIA CREDIT CARD.
A76-AGRIFOR AGRI SVC CALL (701) 848-6116.
A81-APTACTVT REIL RY 26; PAPI RY 08/26; MIRL RY 08/26 - CTAF. LGTS OPER FOR 1 HR AT SS.
KENMARE MUNI (IATA: 7K5) is a public airport located in KENMARE, ND, US.
