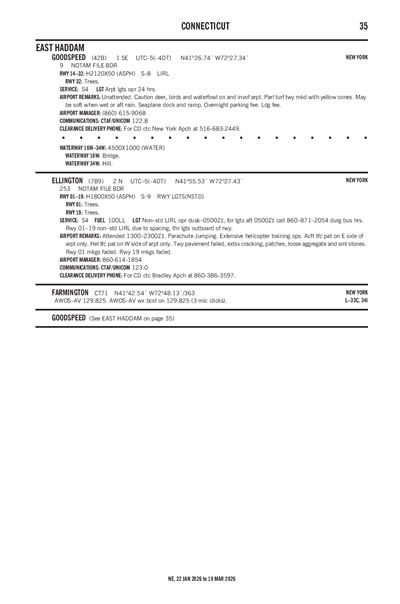

ELLINGTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7B9
Local 7B9
ELLINGTON
PublicPUB

2 miles N of ELLINGTON, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 55' 31"N 72° 27' 26"W
Elevation
253' MSL
Pattern Alt
1253' MSL
Mag Variation
14°W
Declination
15°W
Fuel
100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KBDL (10nm) LIFR
2:51 AM EST
Mist
Overcast 300'
2.5sm
31°F
30°F
30.17"Hg
170° 3kts
AO2 FZRAE19 SLP218 P0000 I1000 T10061011 $
METAR KBDL 040751Z 17003KT 2 1/2SM BR OVC003 M01/M01 A3017 RMK AO2 FZRAE19 SLP218 P0000 I1000 T10061011 $
+ Add Your Business

7B9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
UNICOM 123.0

FAA A/FD Pages

Terminal Area Forecast

KBDL (10nm)
Wed, 3/4 12:20 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
1:00 AM EST - 3:00 AM EST
Light Freezing Rain and Mist
Overcast 500'
2sm
Calm
LIFR
3:00 AM EST - 10:00 AM EST
Mist
Overcast 300'
3sm
Calm
VFR
10:00 AM EST - 11:00 PM EST
Scattered 25,000'
6sm
VRB° 3kts
MVFR
11:00 PM EST - 7:00 AM EST
Mist
Scattered 15,000'
3sm
Calm
TAF KBDL 040520Z 0406/0512 00000KT 2SM -FZRA BR OVC005
   FM040800 00000KT 3SM BR OVC003
   FM041500 VRB03KT P6SM SCT250
   FM050400 00000KT 3SM BR SCT150
7B9
No NOTAM Available
No
0800-1800
CONNECTICUT PARACHUTISTS INC
P. O. BOX 507
ELLINGTON, CT 06029
Phone: 860-871-0021
BRIAN KNIGHT
3 WINGSTONE LN
DEVON, PA 19333
Phone: 860-614-1854
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDR
--
NON-STD LIRL OPR DUSK-2400; FOR LGTS AFT 0000 CALL 860-871-2054 DURG BUS HRS.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Sales

Runway 01/19

1800 ft. x 50 ft.
ASPH
Fair
NONE
NSTD

9,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 355°175°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition POOR POOR
Latitude 41° 55' 23"N 41° 55' 40"N
Longitude 72° 27' 25"W 72° 27' 27"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1EXTSV HEL TRNG OPNS.
A110-2NON-STD THR LGTS.
A110-6FOR CD CTC BRADLEY APCH AT 860-386-3597.
A110-7ACFT TFC PAT ON E SIDE OF ARPT ONLY. HEL TFC PAT ON W SIDE OF ARPT ONLY.
A110-8TWY PAVEMENT FAILED, EXTSV CRACKING, PATCHES, LOOSE AGGREGATE AND SML STONES.
A16ADDL CTC ROBERT SMITH, 860-930-9235.
A40-01/19NON-STD LIRL DUE TO SPACING, THR LGTS OUTBOARD OF RWY.
A42-01_CONDMKGS FADED.
A42-19_CONDMKGS FADED.
A58-016 FT SIGN, 66 FT DSTC, 103 FT L.
A58-1925 FT TREES, 0-199 FT DSTC, 105 FT R.
A81-APTNON-STD LIRL OPR DUSK-2400; FOR LGTS AFT 0000 CALL 860-871-2054 DURG BUS HRS.
E111VFR USE ONLY.
ELLINGTON (IATA: 7B9) is a public airport located in ELLINGTON, CT, US.
