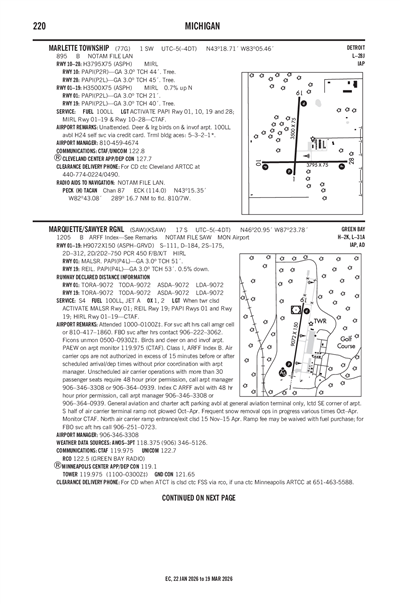

MARLETTE TOWNSHIP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

77G
Local 77G
MARLETTE TOWNSHIP
PublicPUB

1 miles SW of MARLETTE, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 18' 43"N 83° 05' 27"W
Elevation
895' MSL
Pattern Alt
1895' MSL
Mag Variation
8°W
Declination
8°W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KD95 (17nm) MVFR
5:55 AM EST
Mist
Clear
5sm
25°F
25°F
30.24"Hg
Calm
AO2
METAR KD95 041055Z AUTO 00000KT 5SM BR CLR M04/M04 A3024 RMK AO2
+ Add Your Business

77G FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 01, 19, 10, & 28; MIRL RWY 01/19 & 10/28 - CTAF.
UNICOM 122.8

Center

CLEVELAND CENTER 127.7
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 127.7/290.425 (FREELAND RCAG) .

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFNT (36nm)
Wed, 3/4 12:28 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 3:00 AM EST
Scattered 25,000'
6sm
VRB° 2kts
MVFR
3:00 AM EST - 10:00 AM EST
Mist
Scattered 25,000'
4sm
VRB° 2kts
VFR
10:00 AM EST - 3:00 PM EST
Scattered 2,200'
6sm
120° 5kts
VFR
3:00 PM EST - 11:00 PM EST
Broken 25,000'
6sm
160° 5kts
MVFR
11:00 PM EST - 1:00 AM EST
Mist
Overcast 2,000'
6sm
110° 5kts
TAF KFNT 040528Z 0406/0506 VRB02KT P6SM SCT250
   FM040800 VRB02KT 4SM BR SCT250
   FM041500 12005KT P6SM SCT022
   FM042000 16005KT P6SM BKN250
   FM050400 11005KT 6SM BR OVC020
77G
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1238Z
3/31/26
2100Z
Runway!LAN 02/508 77G RWY 01 PAPI U/S 2602231238-2603312100
12/10/25
1251Z
Runway!LAN 12/443 77G RWY 19 PAPI UNUSABLE 2512101251-2606102111EST
FDC
9/5/24
1453Z
!FDC 4/0972 77G IAP MARLETTE TOWNSHIP, MARLETTE, MI.
RNAV (GPS) RWY 19, ORIG-D...
LNAV MDA 1360/HAT 465 ALL CATS.
2409051453-2609041453EST
No
UNATNDD
MARLETTE TOWNSHIP
6725 AIRPORT RD
MARLETTE, MI 48453
Phone: 989-635-7772
PHIL ROACH
6725 AIRPORT RD
MARLETTE, MI 48453
Phone: 810-459-4674
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT PAPI RWY 01, 19, 10, & 28; MIRL RWY 01/19 & 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3500 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 01 Runway 19
True Heading 4°184°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 18' 31"N 43° 19' 06"N
Longitude 83° 05' 31"W 83° 05' 28"W
Elevation 871' 895'
Threshold Crossing Height 21 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 10/28

3795 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 89°269°
Traffic Pattern Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 18' 37"N 43° 18' 37"N
Longitude 83° 05' 51"W 83° 04' 59"W
Elevation 872' 879'
Threshold Crossing Height 44 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A110-2DEER & LRG BIRDS ON & INVOF ARPT.
A110-3TRML BLDG ACES: 5-3-2-1*.
A52-010-8 FT SEASONAL CROPS, 230 FT DIST, 120 FT R.
A52-100-8 FT SEASONAL CROPS, 200 FT DIST, 96 FT R.
A57-10CTLG OBSTN EXCEEDS A 45 DEG SLP.
A70-100LLAVBL H24 SELF SVC VIA CREDIT CARD.
A75-HFOR TSNT STORAGE CALL AMGR.
A81-APTACTVT PAPI RWY 01, 19, 10, & 28; MIRL RWY 01/19 & 10/28 - CTAF.
MARLETTE TOWNSHIP (IATA: 77G) is a public airport located in MARLETTE, MI, US.
