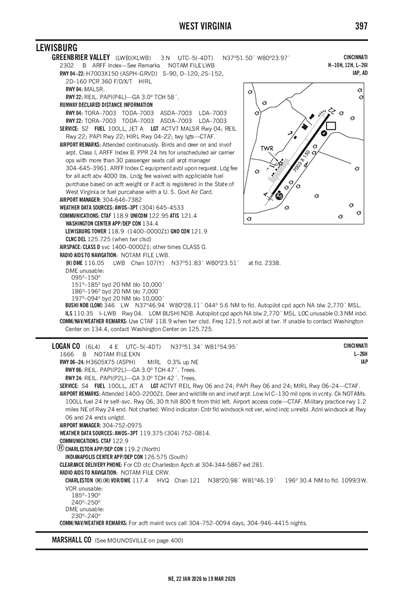

LOGAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

6L4
Local 6L4
LOGAN COUNTY
PublicPUB

4 miles E of LOGAN, WV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 51' 20"N 81° 54' 57"W
Elevation
1666' MSL
Pattern Alt
2666' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A, 100LL
FSS
ELKINS (EKN)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
K6L4 VFR
11:55 PM EST
Scattered 11,000'
Few 8,000'
10sm
54°F
48°F
30.20"Hg
Calm
AO2
METAR K6L4 040455Z AUTO 00000KT 10SM FEW080 SCT110 12/09 A3020 RMK AO2
+ Add Your Business

6L4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.375
(304) 752-0814

Common

CTAF 122.9
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.; AIRPORT ACCESS CODE- CTAF.

Approach

CHARLESTON APPROACH 119.2
Initial Contact - NORTH

Departure

CHARLESTON DEPARTURE 119.2
Initial Contact - NORTH

Center

CHARLESTON CENTER 126.575
LOW, APCH/DEP SVC PRVDD BY INDIANAPOLIS ARTCC (ZID) ON FREQS 126.575/257.85 (BLUEFIELD RCAG) FM THE SOUTH IF LOST COMM WITH CRW.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCRW (35nm)
Tue, 3/3 8:07 PM EST
Tue, 3/3 8:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
8:00 PM EST - 3:00 AM EST
Mist
Broken 7,000'
6sm
180° 5kts
MVFR
Temporary 11:00 PM EST - 3:00 AM EST
Mist
No Clouds
5sm
Calm
MVFR
3:00 AM EST - 6:00 AM EST
Rain and Mist
Overcast 3,000'
5sm
VRB° 3kts
MVFR
6:00 AM EST - 9:00 AM EST
Rain and Mist
Overcast 1,300'
Scattered 900'
3sm
VRB° 3kts
IFR
9:00 AM EST - 7:00 PM EST
Rain and Mist
Broken 900'
3sm
210° 5kts
TAF KCRW 040107Z 0401/0424 18005KT 6SM BR BKN070 WS010/19040KT
   TEMPO 0404/0408 5SM BR
   FM040800 VRB03KT 5SM RA BR OVC030
   FM041100 VRB03KT 3SM RA BR SCT009 OVC013
   FM041400 21005KT 3SM RA BR BKN009
6L4
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
0001Z
2/27/26
0300Z
!EKN 02/249 6L4 AIRSPACE AIRDROP WI AN AREA DEFINED AS 3NM RADIUS OF 375200N0815300W (1.6NM NE 6L4) SFC-6000FT AGL 2602270001-2602270300
2/20/26
1057Z
3/7/26
0957Z
!EKN 02/211 6L4 OBST TOWER LGT (ASR 1270606) 380630.10N0814502.00W (17.2NM NNE 6L4) 1883.2FT (304.1FT AGL) U/S 2602201057-2603070957
FDC
9/19/25
1628Z
!FDC 5/7489 6L4 IAP LOGAN COUNTY, LOGAN, WV.
RNAV (GPS) RWY 24, AMDT 1...
LNAV/VNAV DA 2104/HAT 438 ALL CATS, VIS ALL CATS 1 1/4. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PINEVILLE ALTIMETER SETTING AND INCREASE LPV DA TO 1985 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 2173 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CAT C 1/4 SM, AND CIRCLING VISIBILITY CAT B 1/4 SM.
2509191628-2709191628EST
No
0900-1700
LOGAN COUNTY ARPT AUTH
PO BOX 1973
LOGAN, WV 25601
Phone: 304-752-0975
MEGAN R JOHNSON
P O BOX 1793
LOGAN, WV 25601
Phone: 304-752-0975
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
None
None
Air Ambulance
Avionics
Pilot Instruction

Runway 06/24

3605 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 58°238°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 51' 11"N 37° 51' 30"N
Longitude 81° 55' 16"W 81° 54' 38"W
Elevation 1,654' 1,666'
Threshold Crossing Height 47 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RWY 06, 30 FT HILL 800 FT FROM THLD LEFT.
A110-10LOW LVL C-130 MIL OPNS IN VCNTY. CK NOTAMS.
A110-4DEER AND WILDLIFE ON & INVOF ARPT.
A110-6AIRPORT ACCESS CODE- CTAF.
A110-8FOR CD CTC CHARLESTON APCH AT 304-344-5867 EXT 281.
A110-9MILITARY PRACTICE RWY 1.2 MILES NE OF RWY 24 END. NOT CHARTED.
A70-100LL24 HR SELF-SVC.
A71FOR ACFT MAINT SVCS CALL 304-752-0094 DAYS, 304-946-4415 NIGHTS.
A81-APTACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
A83CNTR FLD WS NOT VER, WND INDC UNRELBL. ADNL WS AT RWY 6 & 24 ENDS UNLGTD.
LOGAN COUNTY (IATA: 6L4) is a public airport located in LOGAN, WV, US.
