6G1
TITUSVILLE
Public
PUB
3 miles W of TITUSVILLE, PA
View on
Map
Status
Operational
Coordinates
41° 36' 32"N
79° 44' 29"W
Elevation
1600' MSL
Pattern Alt
2600' MSL
Mag Variation
10W
Fuel
JET A, 100LL
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
7/11/24-8/8/24
KFKL (15nm)
VFR
5:56 AM EDT
RAW
Overcast 8,000'
Viz
10sm
Temp
62°F
Dew
32°F
Pres
30.02"Hg
Wind
090° 4kts
RMK
AO2 SLP162 T0167
KFKL 190956Z AUTO 09004KT 10SM OVC080 17/ A3002 RMK AO2 SLP162 T0167
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
6G1 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

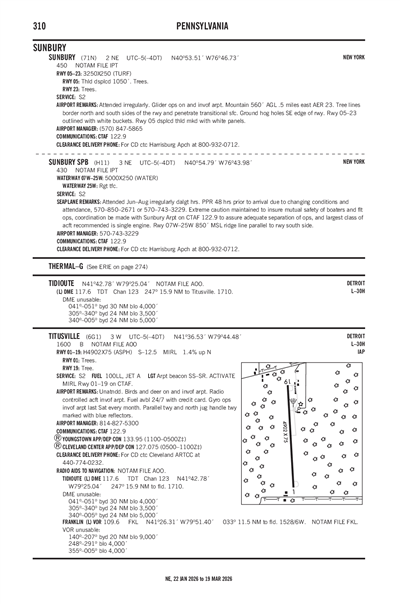

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 01
RNAV (GPS) RWY 19
Terminal Area Forecast
KFKL (15nm)
RAW
Reported
Thu, 9/19 6:36 AM EDT
Valid
Thu, 9/19 7:00 AM EDT - Fri, 9/20 2:00 AM EDT
MVFR
7:00 AM EDT - 8:00 AM EDT
Mist
Broken 8,000'
Viz
5sm
Wind
070° 3kts
MVFR
Temporary
7:00 AM EDT - 8:00 AM EDT
Mist
Obscured
Viz
3sm
Wind
Calm
MVFR
8:00 AM EDT - 10:00 AM EDT
Mist
Broken 2,500'
Viz
5sm
Wind
Calm
VFR
10:00 AM EDT - 4:00 PM EDT
Broken 10,000'
Scattered 3,500'
Viz
6sm
Wind
090° 5kts
VFR
4:00 PM EDT - 2:00 AM EDT
Scattered 15,000'
Viz
6sm
Wind
080° 3kts
KFKL 191036Z 1911/2006 07003KT 5SM BR BKN080
TEMPO 1911/1912 3SM BR VV001
FM191200 00000KT 5SM BR BKN025
FM191400 09005KT P6SM SCT035 BKN100
FM192000 08003KT P6SM SCT150
6G1
Domestic
9/2/24
0219Z
!AOO 09/010 6G1 OBST TOWER LGT (ASR 1229252) 413548.30N0793547.60W (6.5NM E 6G1) 2018.0FT (350.1FT AGL) U/S 2409020219-2410020300
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF TITUSVILLE
107 NORTH FRANKLIN STREET
TITUSVILLE, PA 16354
Phone: (814) 827-5300
Manager
NEIL FRATUS
CITY OF TITUSVILLE, 107 NORTH FRANKLIN STREET
TITUSVILLE, PA 16354
Phone: 814-827-5300
FSS
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
NOTAM
AOO
Light Schedule
--
Lights
ACTVT MIRL RWY 01/19 ON CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Hangar
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
9
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Minor
Pwrplant Repair
Minor
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Pilot Instruction
Runway 01/19
Dimensions
4902 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
357°
177°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 36' 08"N
41° 36' 56"N
Longitude
79° 44' 27"W
79° 44' 30"W
Elevation
1,533'
1,600'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
BIRDS & DEER ON & INVOF ARPT.
A110-2
RADIO CONTROLLED ACFT INVOF ARPT.
A110-3
GYRO OPNS INVOF ARPT LAST SAT EVERY MONTH.
A110-4
PARALLEL TWY AND NORTH JUG HANDLE TWY MKD WITH BLUE REFLECTORS.
A110-5
FOR CD CTC CLEVELAND ARTCC AT 440-774-0232.
A110-6
FUEL AVBL 24/7 WITH CREDIT CARD
TITUSVILLE (IATA: 6G1) is a public airport located in TITUSVILLE, PA.
