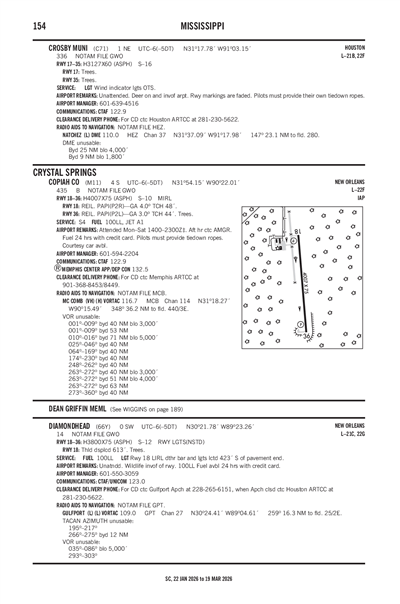

DIAMONDHEAD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

66Y
Local 66Y
DIAMONDHEAD
PublicPUB

0 miles SW of DIAMONDHEAD, MS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 21' 47"N 89° 23' 16"W
Elevation
14' MSL
Pattern Alt
1014' MSL
Mag Variation
2°W
Declination
2°E
Fuel
100LL
FSS
GREENWOOD (GWO)
Sectional
NEW ORLEANS
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KMJD (16nm) IFR
9:55 PM CST
Mist
Overcast 600'
3sm
68°F
68°F
30.18"Hg
110° 7kts
Gusts 12kts
AO2
METAR KMJD 040355Z AUTO 11007G12KT 3SM BR OVC006 20/20 A3018 RMK AO2
+ Add Your Business

66Y FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
UNICOM 123.0

FAA A/FD Pages

Terminal Area Forecast

KGPT (16nm)
Tue, 3/3 5:23 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
6:00 PM CST - 12:00 AM CST
Overcast 6,000'
Broken 2,000'
Few 800'
6sm
110° 13kts
VFR
12:00 AM CST - 10:00 AM CST
Scattered 3,000'
Few 1,500'
6sm
120° 6kts
VFR
10:00 AM CST - 6:00 PM CST
Scattered 4,000'
Few 3,500'
6sm
120° 7kts
TAF KGPT 032323Z 0400/0424 11013KT P6SM FEW008 BKN020 OVC060
   FM040600 12006KT P6SM FEW015 SCT030
   FM041600 12007KT P6SM FEW035 SCT040
66Y
EffectiveExpiresCategoryNOTAM
Domestic
8/9/18
1941Z
Runway!GWO 08/187 66Y RWY 18 THR DISPLACED 423FT 1808091941-PERM
No
UNATNDD
DIAMONDHEAD PROPERTY
5300 DIAMONDHEAD CIRCLE
DIAMONDHEAD, MS 39525
Phone: 228-255-1900
BRADLEY HOLLIDAY
1200 AIRPORT CIRCLE
DIAMONDHEAD, MS 39525
Phone: 601-550-3059
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
GWO
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

3800 ft. x 75 ft.
ASPH
Good
NONE
NSTD

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 22' 06"N 30° 21' 28"N
Longitude 89° 23' 16"W 89° 23' 16"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11DIAMONDHEAD COUNTRY CLUB & PROPERTY OWNERS ASSOCIATION.
A110-1WILDLIFE INVOF RWY.
A110-2FOR CD CTC GULFPORT APCH AT 228-265-6151, WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
A30A-18LIRL DTHR BAR & LGTS LCTD 423 FT S OF PAVEMENT END.
A57-18APCH RATIO 20:1 TO DTHR.
A58-18SAND PERIMETER ROAD 88 FT FM RWY END; +2 LGTD FENCE 123 FT FM RWY END.
A70-100LLFUEL AVBL 24 HRS WITH CREDIT CARD.
E111VFR USE ONLY, ARPT TFC PATS ARE ESTABLISHED ON E SIDE OF RWY & RWY CNTRLN EXTENDED.
DIAMONDHEAD (IATA: 66Y) is a public airport located in DIAMONDHEAD, MS, US.
