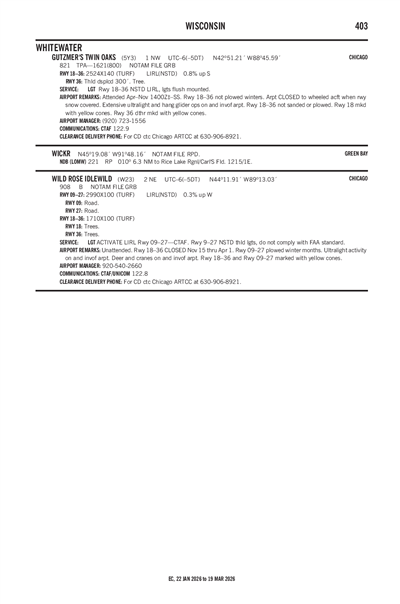

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

5Y3
GUTZMER'S TWIN OAKS
PublicPUB

1 miles NW of WHITEWATER, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 51' 13"N 88° 45' 35"W
821' MSL
1621' MSL
00E
None Listed
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
4/17/25-5/15/25
K57C (18nm) VFR
1:55 AM CDT
Clear
10sm
68°F
54°F
29.86"Hg
180° 4kts
AO2 T02010121
K57C 030655Z AUTO 18004KT 10SM CLR 20/12 A2986 RMK AO2 T02010121
+ Add Your Business

5Y3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KJVL (19nm)
Tue, 6/3 12:20 AM CDT
Tue, 6/3 1:00 AM CDT - Wed, 6/4 1:00 AM CDT
VFR
1:00 AM CDT - 6:00 AM CDT
Few 25,000'
6sm
190° 6kts
Shear 220° 40kts @ 2000'
VFR
6:00 AM CDT - 10:00 AM CDT
Scattered 25,000'
6sm
180° 8kts
VFR
10:00 AM CDT - 2:00 PM CDT
Broken 20,000'
6sm
190° 16kts
Gusts 24kts
VFR
2:00 PM CDT - 7:00 PM CDT
Broken 8,000'
Scattered 5,000'
6sm
200° 18kts
Gusts 28kts
VFR
2:00 PM CDT - 5:00 PM CDT
Light Thunderstorm and Rain
Broken 5,000'
N/A
Calm
MVFR
7:00 PM CDT - 12:00 AM CDT
Light Showers and Rain
Overcast 3,500'
Scattered 2,000'
5sm
210° 12kts
Gusts 20kts
MVFR
12:00 AM CDT - 1:00 AM CDT
Light Showers and Rain and Mist
Overcast 1,200'
5sm
290° 8kts
KJVL 030520Z 0306/0406 19006KT P6SM FEW250 WS020/22040KT
   FM031100 18008KT P6SM SCT250
   FM031500 19016G24KT P6SM BKN200
   FM031900 20018G28KT P6SM SCT050 BKN080
   PROB30 0319/0322 -TSRA BKN050CB
   FM040000 21012G20KT 5SM -SHRA SCT020 OVC035
   FM040500 29008KT 5SM -SHRA BR OVC012
5Y3
Domestic
5/13/250859Z !GRB 05/136 5Y3 OBST TOWER LGT (ASR 1328554) 424527.30N0885535.00W (9.32NM SW 5Y3) 1144FT (260FT AGL) U/S 2505130859-2507310737
3/27/250517Z !GRB 03/564 5Y3 OBST TOWER LGT (ASR 1050571) 424228.00N0885027.30W (9.5NM SSW 5Y3) 1281.8FT (274.9FT AGL) U/S 2503270517-2509262300
No
APR-NOV 0800-SS
COLDSPRING AIRPORT LLC
N1190 COUNTY ROAD N
WHITEWATER, WI 53190
Phone: (920) 723-1556
MARCUS TINCHER
532 W MAIN ST
WHITEWATER, WI 53190
Phone: (920) 723-1556
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

2524 ft. x 140 ft.
TURF
Good
NONE
NSTD

--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 51' 25"N 42° 51' 00"N
Longitude 88° 45' 35"W 88° 45' 35"W
Elevation 801' 821'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RY 18/36 NOT PLOWED WINTERS. CLSD TO WHEELED ACFT WHEN RY SNOW COVERED.
A110-4EXTENSIVE ULTRALIGHT & HANG GLDR OPNS ON & INVOF.
A110-5FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
GUTZMER'S TWIN OAKS (IATA: 5Y3) is a public airport located in WHITEWATER, WI.
