5V5
SHIPROCK AIRSTRIP
Public
PUB
5 miles S of SHIPROCK, NM
View on
Map
Status
Operational
Coordinates
36° 41' 52"N
108° 42' 04"W
Elevation
5272' MSL
Pattern Alt
6272' MSL
Mag Variation
12E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
5V5 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

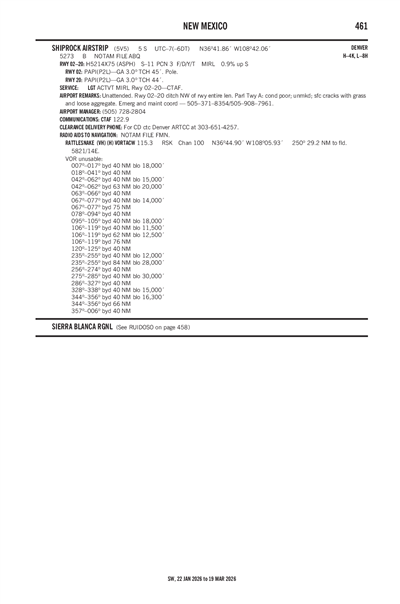

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
No TAF is available for this location.
5V5
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
NAVAJO TRIBE
NAVAJO TRANSPORTATION, PO BOX 4620
WINDOW ROCK, AZ 86515
Phone: 505-371-8300
Manager
RAINEY CRAWFORD
NAVAJO DIV. OF TRANSPORTATION, PO BOX 4620
WINDOW ROCK, AZ 86515
Phone: (505) 728-2804
FSS
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
NOTAM
ABQ
Light Schedule
--
Lights
ACTVT MIRL RWY 02/20 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 02/20
Dimensions
5214 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
3 /F/D/Y/T
Single Wheel
11,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
31°
211°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
36° 41' 30"N
36° 42' 14"N
Longitude
108° 42' 20"W
108° 41' 47"W
Elevation
5,272'
5,225'
Threshold Crossing Height
45 ft. AGL
44 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
No
No
A110-6
FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-7
PARL TWY A: COND POOR; UNMKD; SFC CRACKS WITH GRASS & LOOSE AGGREGATE.
SHIPROCK AIRSTRIP (IATA: 5V5) is a public airport located in SHIPROCK, NM.
