iFlightPlanner



...

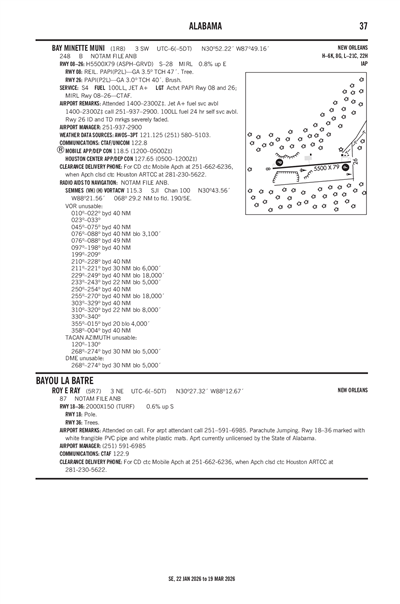

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

5R7
ROY E RAY
PublicPUB

3 miles NE of BAYOU LA BATRE, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 27' 19"N 88° 12' 40"W
87' MSL
1087' MSL
02E
100LL
ANNISTON (ANB)
NEW ORLEANS
HOUSTON (ZHU)
7/11/24-8/8/24
KBFM (12nm) VFR
5:53 AM CDT
Clear
7sm
74°F
70°F
29.91"Hg
Calm
AO2 SLP127 T02330211
KBFM 191053Z 00000KT 7SM CLR 23/21 A2991 RMK AO2 SLP127 T02330211
Add Your Business

5R7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KBFM (12nm)
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 9:00 AM CDT
Sky Clear
6sm
240° 3kts
VFR
9:00 AM CDT - 4:00 PM CDT
Few 25,000'
Few 3,500'
6sm
360° 4kts
VFR
4:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
140° 6kts
KBFM 190520Z 1906/2006 24003KT P6SM SKC
   FM191400 36004KT P6SM FEW035 FEW250
   FM192100 14006KT P6SM SCT250
5R7
Domestic
9/18/240532Z !ANB 09/620 5R7 OBST TOWER LGT (ASR 1283143) 303012.60N0881004.00W (3.7NM NE 5R7) 304.1FT (262.1FT AGL) U/S 2409180532-2410030432
9/18/240438Z !ANB 09/611 5R7 OBST TOWER LGT (ASR 1229666) 302336.60N0880825.70W (5.2NM SE 5R7) 352.0FT (339.9FT AGL) U/S 2409180438-2410030338
9/13/240437Z !ANB 09/477 5R7 OBST TOWER LGT (ASR 1229475) 302253.90N0881337.10W (4.5NM S 5R7) 282.2FT (270.0FT AGL) U/S 2409130437-2409280337
No
ON CALL
FOR ARPT ATTENDANT CALL 251-591-6985
ROBBY GRICE
11267 AIRPORT ROAD
IRVINGTON, AL 36544
Phone: (251) 591-6985
ROBBY GRICE, PRESIDENT
11267 AIRPORT ROAD
IRVINGTON, AL 36544
Phone: (251) 591-6985
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
PHONE REQ
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
32
0
0
0
0
1
Minor
Minor
None
None
None

Runway 18/36

2000 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NSTD
Markings Condition GOOD GOOD
Latitude 30° 27' 29"N 30° 27' 09"N
Longitude 88° 12' 40"W 88° 12' 40"W
Elevation 76' 87'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC MOBILE APCH AT 251-662-6236, WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
A110-2ARPT CURRENTLY UNLICENSED BY STATE OF ALABAMA.
ROY E RAY (IATA: 5R7) is a public airport located in BAYOU LA BATRE, AL.
