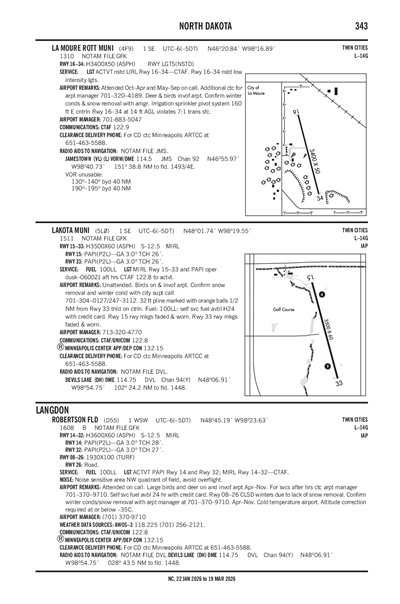

LAKOTA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5L0
Local 5L0
LAKOTA MUNI
PublicPUB

1 miles SE of LAKOTA, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 01' 44"N 98° 19' 33"W
Elevation
1511' MSL
Pattern Alt
2511' MSL
Mag Variation
4°E
Declination
4°E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KDVL (24nm) LIFR
7:56 PM CST
Overcast 400'
7sm
21°F
20°F
30.08"Hg
180° 8kts
AO2 SLP220 T10611067 FZRANO
METAR KDVL 040156Z AUTO 18008KT 7SM OVC004 M06/M07 A3008 RMK AO2 SLP220 T10611067 FZRANO
+ Add Your Business

5L0 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
RY 15/33 MIRL AND PAPI OPER DUSK -0000 AFT HRS CTAF 122.8 TO ACTVT.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 132.15
HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON 132.15/269.6 (GRAND FORKS RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDVL (24nm)
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
IFR
6:00 PM CST - 8:00 PM CST
Overcast 600'
6sm
VRB° 4kts
LIFR
8:00 PM CST - 2:00 AM CST
Mist
Overcast 200'
3sm
180° 5kts
LIFR
2:00 AM CST - 5:00 AM CST
Fog
Obscured
0.5sm
190° 8kts
IFR
5:00 AM CST - 10:00 AM CST
Mist
Broken 7,000'
2sm
180° 9kts
VFR
10:00 AM CST - 6:00 PM CST
Scattered 15,000'
6sm
250° 9kts
TAF KDVL 032320Z 0400/0424 VRB04KT P6SM OVC006
   FM040200 18005KT 3SM BR OVC002
   FM040800 19008KT 1/2SM FG VV002
   FM041100 18009KT 2SM BR BKN070 WS020/25030KT
   FM041600 25009KT P6SM SCT150
5L0
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
1451Z
2/25/26
2359Z
!GFK 02/341 5L0 OBST TOWER LGT (ASR 1043119) 480214.30N0982230.10W (2.0NM WNW 5L0) 1885.2FT (345.1FT AGL) U/S 2602181451-2602252359
No
UNATNDD
LAKOTA ARPT AUTHORITY
BOX 505
LAKOTA, ND 58344
Phone: (701) 247-2561
MATT NELSON
BOX 505
LAKOTA, ND 58344
Phone: 713-320-4770
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
RY 15/33 MIRL AND PAPI OPER DUSK -0000 AFT HRS CTAF 122.8 TO ACTVT.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 15/33

3500 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 165°345°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 48° 02' 01"N 48° 01' 27"N
Longitude 98° 19' 39"W 98° 19' 26"W
Elevation 1,511' 1,507'
Threshold Crossing Height 26 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A11CHAIRMAN OF ARPT AUTH; DOUG MANBECK 701-247-2400.
A110-1CONFIRM SNOW REMOVAL & WINTER COND WITH CITY SUPT 701-304-0127/247-3112.
A110-632 FT PLINE MARKED WITH ORANGE BALLS 1/2 NM FROM RWY 33 THLD ON CTRLN.
A110-7FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-9BIRDS ON & INVOF ARPT.
A42-15_CONDRWY MKGS FADED & WORN.
A42-33_CONDRWY MKGS FADED & WORN.
A52-15+40 FT TREE ROW 1040 FT FM THR 200 FT L AND R OF CNTRLN EXTDD APCH RATIO 20:1.
A70-100LLSELF SVC FUEL AVBL H24 VIA CREDIT CARD.
A81-APTRY 15/33 MIRL AND PAPI OPER DUSK -0000 AFT HRS CTAF 122.8 TO ACTVT.
E111PRVDD RWY 15 THLD IS DSPLCD TO PRVD A CLEAR APCH OVR THE ROAD TO THE NORTH.
LAKOTA MUNI (IATA: 5L0) is a public airport located in LAKOTA, ND, US.
