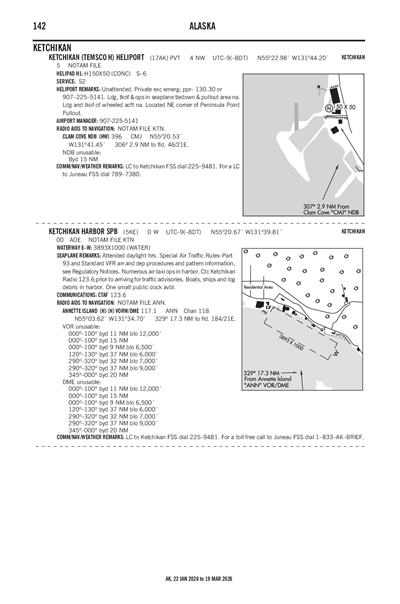

KETCHIKAN HARBOR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5KE
Local 5KE
KETCHIKAN HARBOR
PublicPUB

0 miles W of KETCHIKAN, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
55° 20' 40"N 131° 39' 48"W
Elevation
0' MSL
Pattern Alt
1000' MSL
Mag Variation
18°E
Declination
26°E
Fuel
None Listed
FSS
KETCHIKAN (KTN)
Sectional
KETCHIKAN
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAKT (2nm) MVFR
4:53 PM AKST
Light Rain
Overcast 4,800'
Broken 3,000'
Scattered 2,200'
10sm
45°F
44°F
29.46"Hg
130° 14kts
AO2 SLP976 P0001 T00720067 $
METAR PAKT 040153Z 13014KT 10SM -RA SCT022 BKN030 OVC048 07/07 A2946 RMK AO2 SLP976 P0001 T00720067 $
+ Add Your Business

5KE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.6

FAA A/FD Pages

Terminal Area Forecast

PAKT (2nm)
Tue, 3/3 2:32 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
MVFR
3:00 PM AKST - 7:00 AM AKST
Light Rain
Overcast 1,500'
Scattered 600'
4sm
110° 10kts
IFR
7:00 AM AKST - 11:00 AM AKST
Rain and Mist
Overcast 1,500'
Broken 600'
2sm
120° 15kts
MVFR
11:00 AM AKST - 3:00 PM AKST
Light Rain
Broken 1,500'
6sm
140° 7kts
TAF PAKT 032332Z 0400/0424 11010KT 4SM -RA SCT006 OVC015
   FM041600 12015KT 2SM RA BR BKN006 OVC015
   FM042000 14007KT 6SM -RA BKN015 AMD LTD TO CLD VIS AND WIND 0406/0415
5KE
EffectiveExpiresCategoryNOTAM
Domestic
1/30/26
0514Z
3/2/26
2300Z
!KTN 01/225 5KE OBST TOWER LGT (ASR 1207373) 552021.20N1313819.30W (.09NM ESE 5KE) 362.9FT (293.0FT AGL) U/S 2601300514-2603022300
No
DALGT
PROMECH AIR
1515 TONGASS AVENUE
KETCHIKAN, AK 99901
Phone: (907) 225-3845
N/A
KETCHIKAN FSS (KTN)
Toll Free: LC225-9481
KTN
--
--
N/A
Yes
N/A
No
None
NOT a Landing Rights Airport
Airport of Entry
None
None
None
None
None

Runway E/W

3893 ft. x 1000 ft.

WATER
NONE


--
--
--
--
  Runway E Runway W
True Heading 120°300°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 55° 20' 49"N 55° 20' 30"N
Longitude 131° 40' 16"W 131° 39' 17"W
Elevation 0' 0'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BOATS, SHIPS & LOG DEBRIS IN HARBOR.
A110-2NUMEROUS AIR TAXI OPNS IN HARBOR.
A110-3SPECIAL AIR TRAFFIC RULES-PART 93 AND STANDARD VFR ARR & DEP PROCEDURES AND PATTERN INFORMATION, SEE REGULATORY NOTICES.
A110-4ONE SMALL PUBLIC DOCK AVBL.
A110-5CONTACT KETCHIKAN RADIO 123.6 PRIOR TO ARRIVING FOR TRAFFIC ADVISORIES.
A110-6WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
KETCHIKAN HARBOR (IATA: 5KE) is a public seaplane base located in KETCHIKAN, AK, US.
