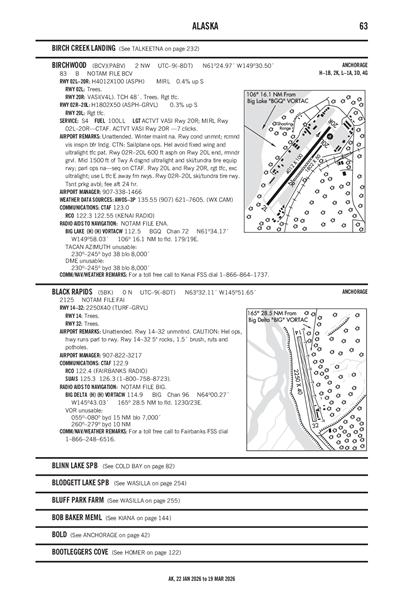

BLACK RAPIDS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5BK
Local 5BK
BLACK RAPIDS
PublicPUB

0 miles N of BLACK RAPIDS, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
63° 32' 07"N 145° 51' 39"W
Elevation
2125' MSL
Pattern Alt
3125' MSL
Mag Variation
17°E
Declination
28°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PABI (28nm) VFR
10:53 PM AKST
Few 4,800'
N/A
-7°F
-19°F
29.62"Hg
100° 14kts
AO2 SLP093 T12171283 PWINO FZRANO TSNO $
METAR PABI 040753Z AUTO 10014KT FEW048 M22/M28 A2962 RMK AO2 SLP093 T12171283 PWINO FZRANO TSNO $
+ Add Your Business

5BK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Flight Service

Flight Service 122.4
(FAI)

FAA A/FD Pages

Terminal Area Forecast

PABI (28nm)
Tue, 3/3 6:00 PM AKST
Tue, 3/3 6:00 PM AKST - Wed, 3/4 7:00 PM AKST
VFR
6:00 PM AKST - 3:00 AM AKST
Sky Clear
6sm
29.50"Hg
110° 9kts
Moderate, Clear Air, Frequent: 3,000 - 9,000'
VFR
Becoming 3:00 AM AKST - 11:00 AM AKST
Sky Clear
6sm
29.41"Hg
090° 6kts
MVFR
Becoming 11:00 AM AKST - 3:00 PM AKST
Light Snow
Broken 4,000'
Few 2,000'
3.73sm
29.41"Hg
100° 6kts
VFR
Becoming 3:00 PM AKST - 7:00 PM AKST
Scattered 4,000'
6sm
29.47"Hg
VRB° 6kts
TAF AMD PABI 040300Z 0403/0504 11009KT 9999 SKC 530009 QNH2950INS
   BECMG 0412/0413 09006KT 9999 SKC QNH2942INS
   BECMG 0420/0421 10006KT 6000 -SN FEW020 BKN040 620406 QNH2942INS
   BECMG 0500/0501 VRB06KT 9999 NSW SCT040 QNH2946INS TXM19/0403Z TNM37/0417Z LAST NO AMDS AFT 0405 NEXT 0414
5BK
No NOTAM Available
No
UNATNDD
BUREAU OF LAND MGMT
P.O. BOX 147
GLENALLEN, AK 99588
Phone: 907-822-3217
BRENDA BECKER
P.O. BOX 147
GLENALLEN, AK 99588
Phone: 907-822-3217
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
--
N/A
No
No
No
None
No
None
None
None
None
None

Runway 14/32

2250 ft. x 40 ft.
TURF GRVL
Fair
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CTN: HEL OPS; HWY RUNS PARL TO RWY.
A110-3SUAIS - 125.3/126.3 (1-800-758-8723).
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A30-14/32UMMNTND.
A33-14/32_COND5 IN ROCKS; 1.5 FT BRUSH; RUTS & POTHOLES.
BLACK RAPIDS (IATA: 5BK) is a public airport located in BLACK RAPIDS, AK, US.
